2000A Generator Cable Set (25 Cables) TYPE W 4/0 Power Camlock cables.

2000A Generator Cable Set (25 Cables) TYPE W 4/0 Power Camlock cables.

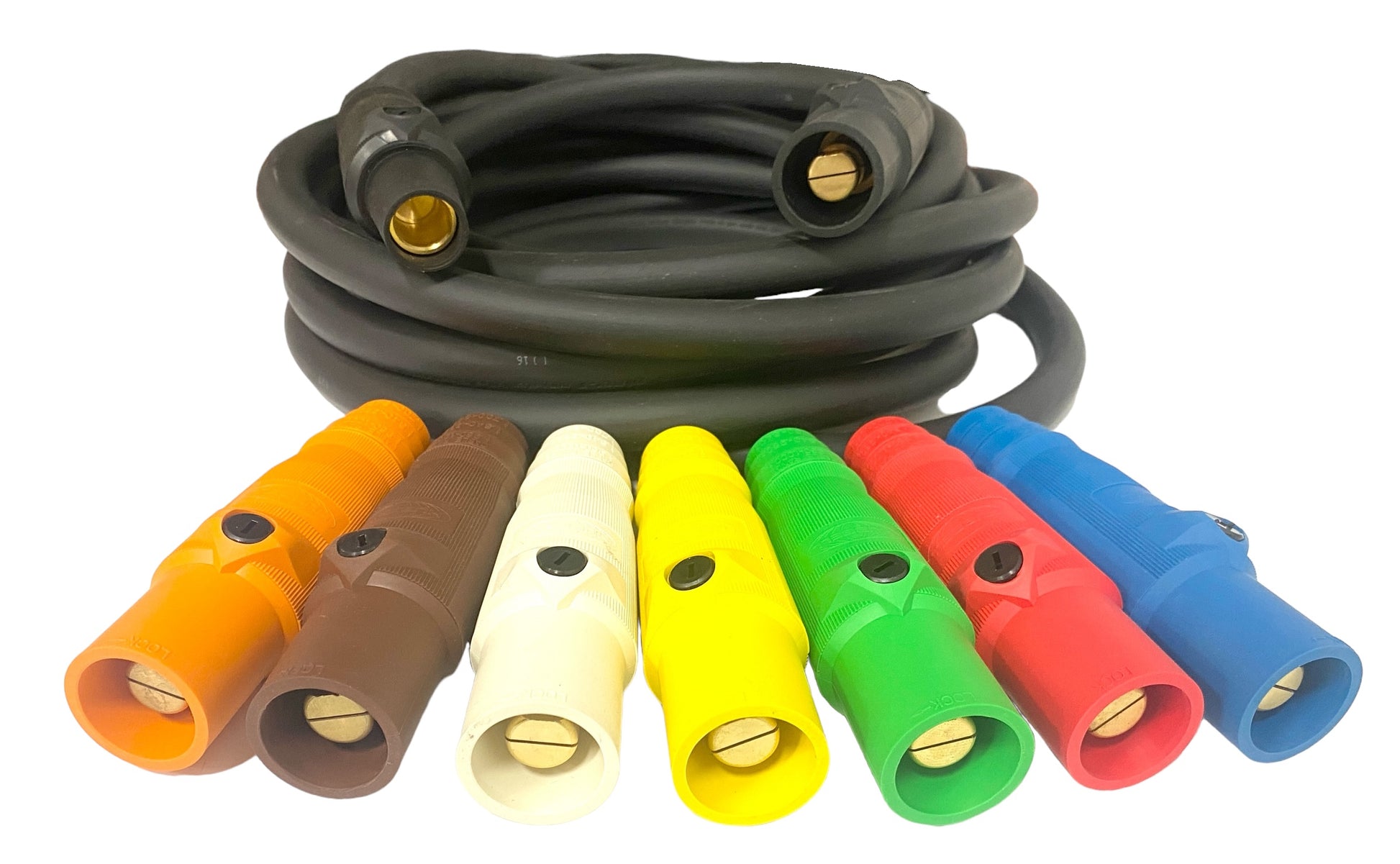

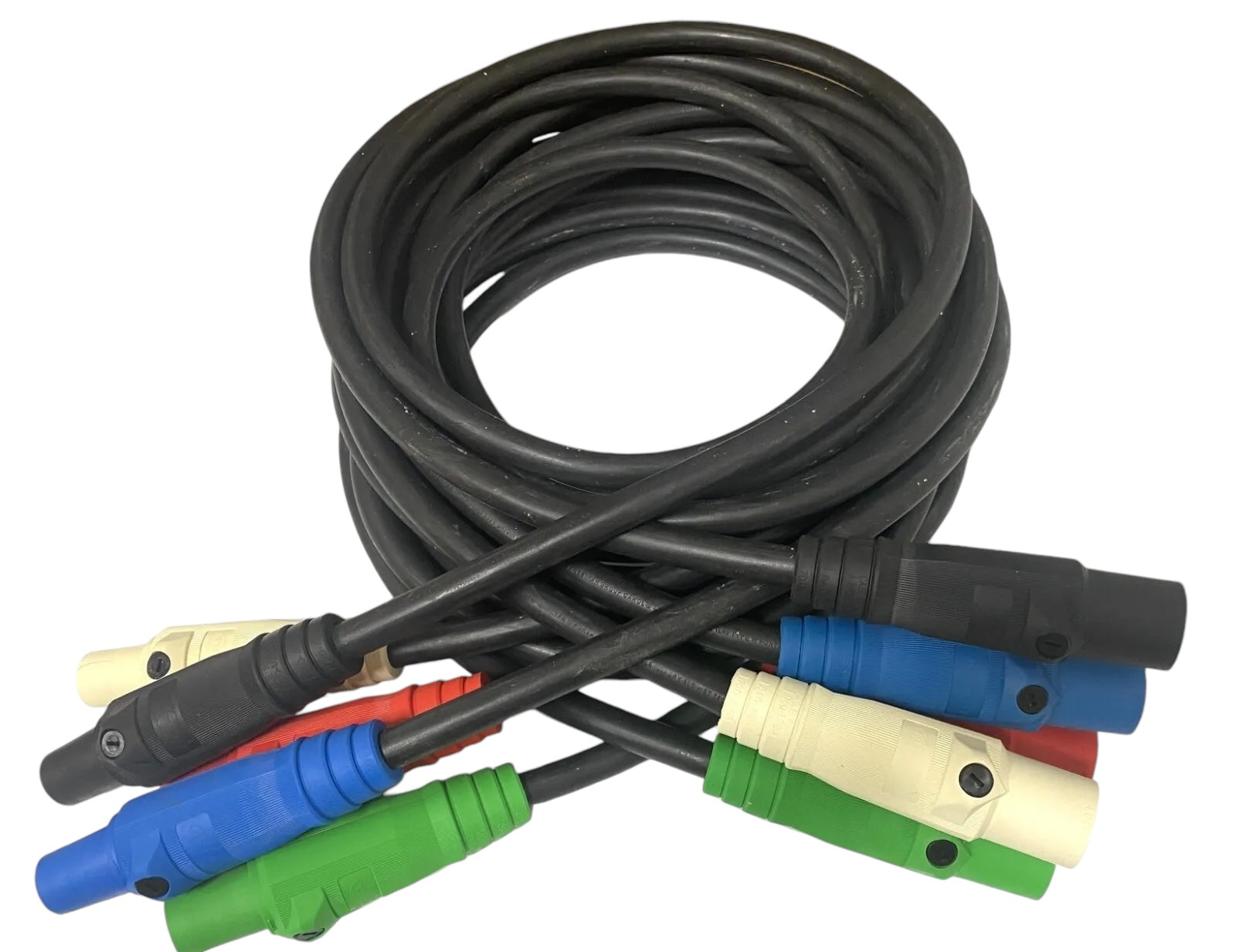

2000A Generator Cable Set INCLUDES:

twenty-five Type W 4/0 black cables with color-coded male and female cams.

WITH THE OPTION OF Twenty-five pigtails for the generator and/or the equipment being run by the generator are available as a option if needed for your application.

CABLE SET FEATURES & OPTIONS

• Number of Cables: Twenty-five (5 per phase, 5 neutral, 5 ground).
• Cable Length Options: 25ft, 50ft, 100 ft
• CAM COLORS PER PHASE:

• 208-240V Cam Colors: Red, Blue, and Black for each Phase, White for Neutral, Green for Ground.
• 480V Cam Colors: Orange, Yellow, and Brown for each Phase, White for Neutral, Green for Ground.

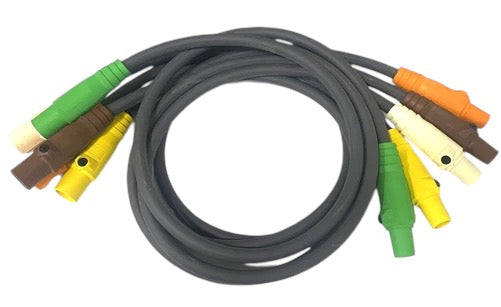

OPTIONAL GENERATOR-SIDE PIGTAILS:

• Optional Generator-Side Pigtails: Twenty-five 6ft Type W 4/0 Cables with female cam and your choice of a bare end or 1/2″ lug end. Cams are color-coded to match the cams on the 25,50,100ft cables.

OPTIONAL EQUIPMENT SIDE PIGTAILS:

• Optional Equipment-Side Pigtails: Twenty-five 6ft Type W 4/0 Cables with male cam and your choice of a bare end or 1/2″ lug end. Cams are color-coded to match the cams on the 25,50,100ft cables.

CABLE FEATURES

• UL Listed Portable Power Cable made from annealed No. 30 gauge bare copper stranding.
• Excellent Flexibility EPR/CPE single conductor portable power cable.
• Durable Jacket EPR (ethylene-propylene rubber) with black heavy duty CPE thermoset compound.
• Reinforced Strength featuring single faced rubber filled binder tape.
• Incredible Resistance to impact and abrasion.
• Quality Assured for your protection; water, flame, ozone, sunlight, grease, weather, and chemical resistant.
• Operating Temperatures range from -40°C to 90°C dry.
• UL, C(UL), and MSHA approved.

CAM-CONNECTOR FEATURES

• HUBBELL 16 Series CAMLOCK DEVICES.
• Double Set Screw connection type.
