4/0 Gauge Copper Battery Cable Power Wires

4/0 Gauge Copper Battery Cable Power Wires.
CONNECTORS USED:

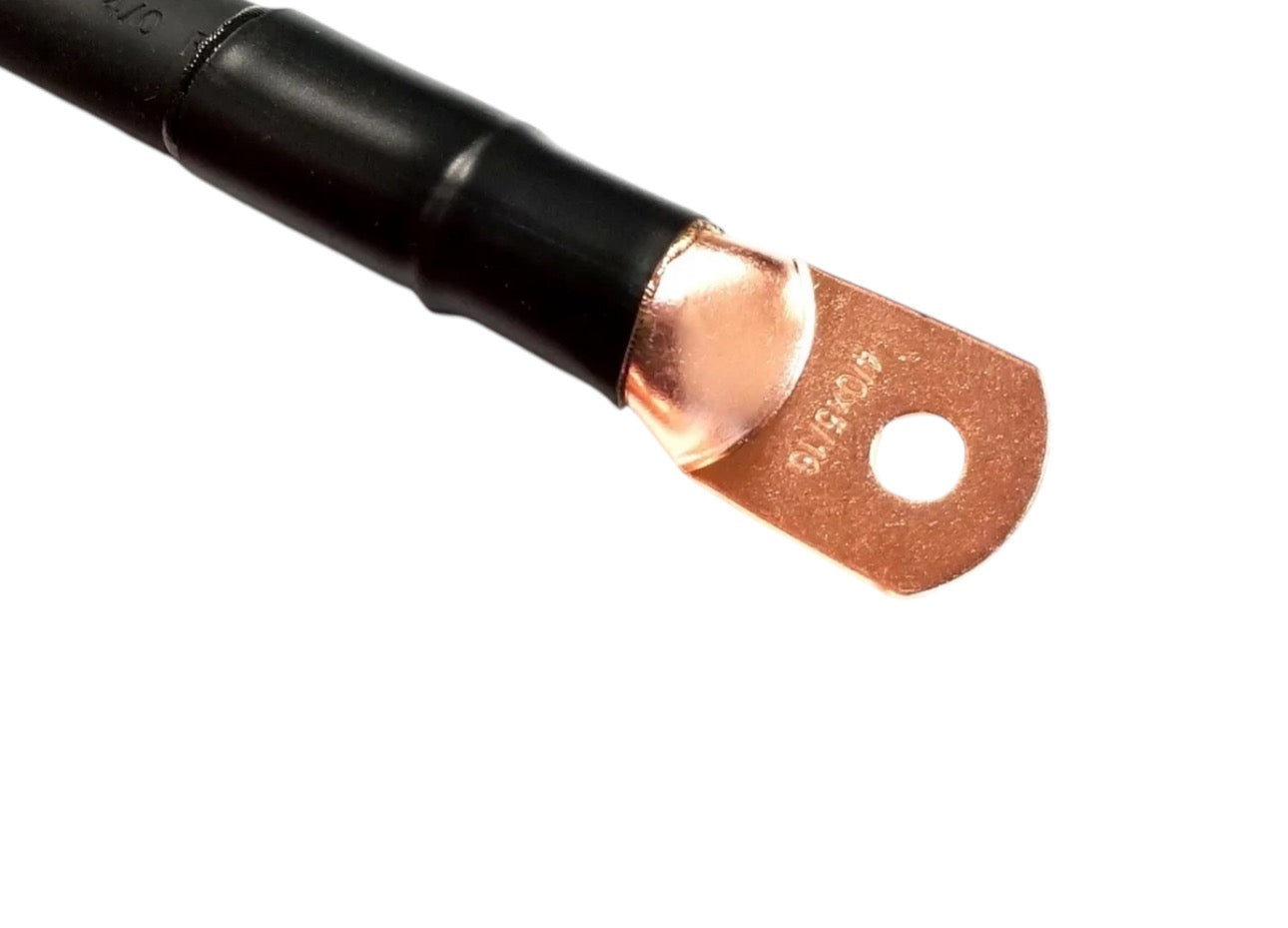

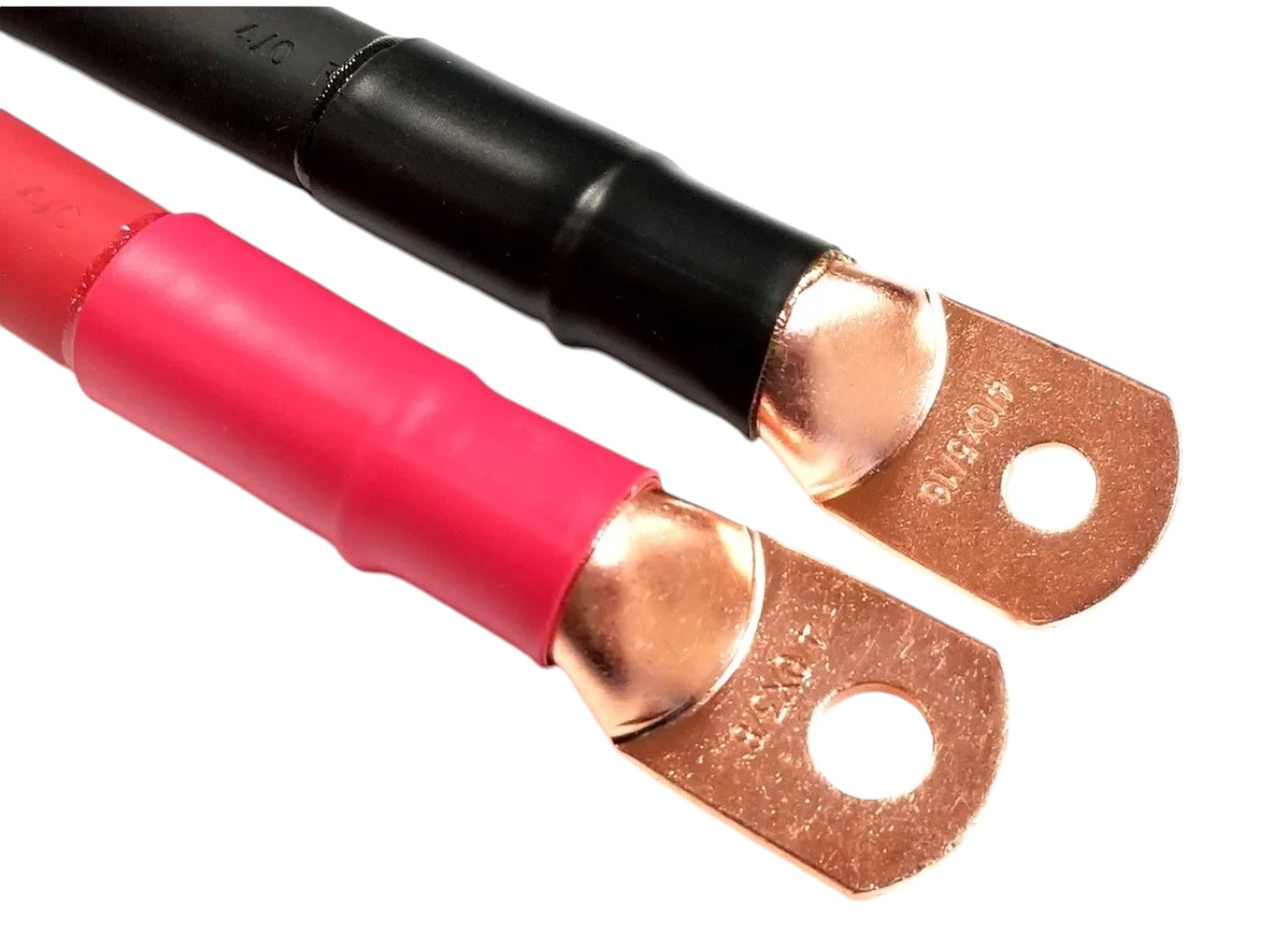

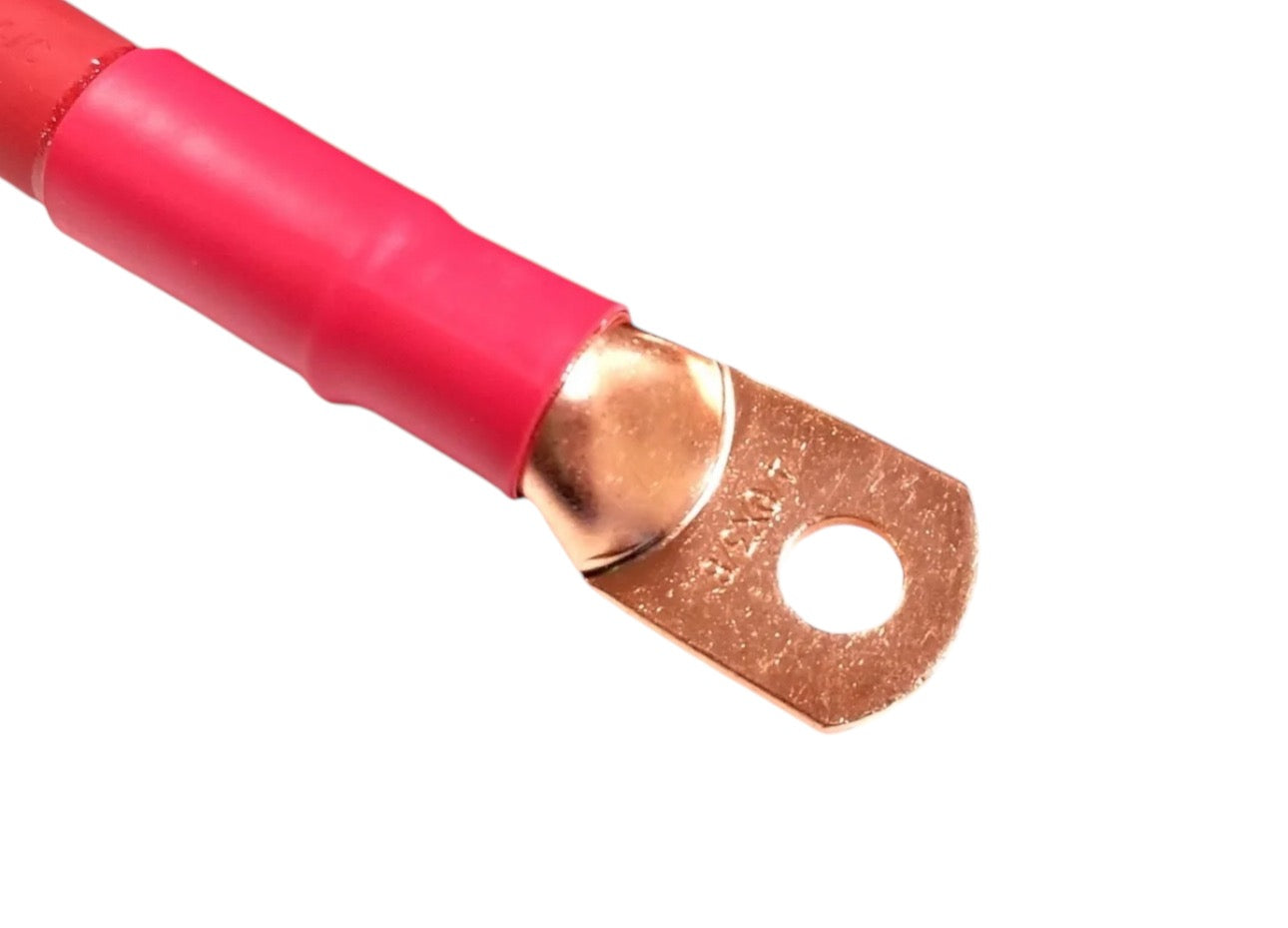

• BARE COPPER CABLE LUGS
• CHOOSE EITHER 5/16,3/8 OR BOTH
• EACH END IS CRIMPED WITH A HYDRAULIC AIR CRIMPER 6 TON FORCE
• EACH END IS COVERED WITH 3:1 GLUE HEAT SHRINK FOR SEALING .
• BUILT FROM CENTER TO CENTER CABLE LUG HOLE.

ABOUT THE CABLE USED:

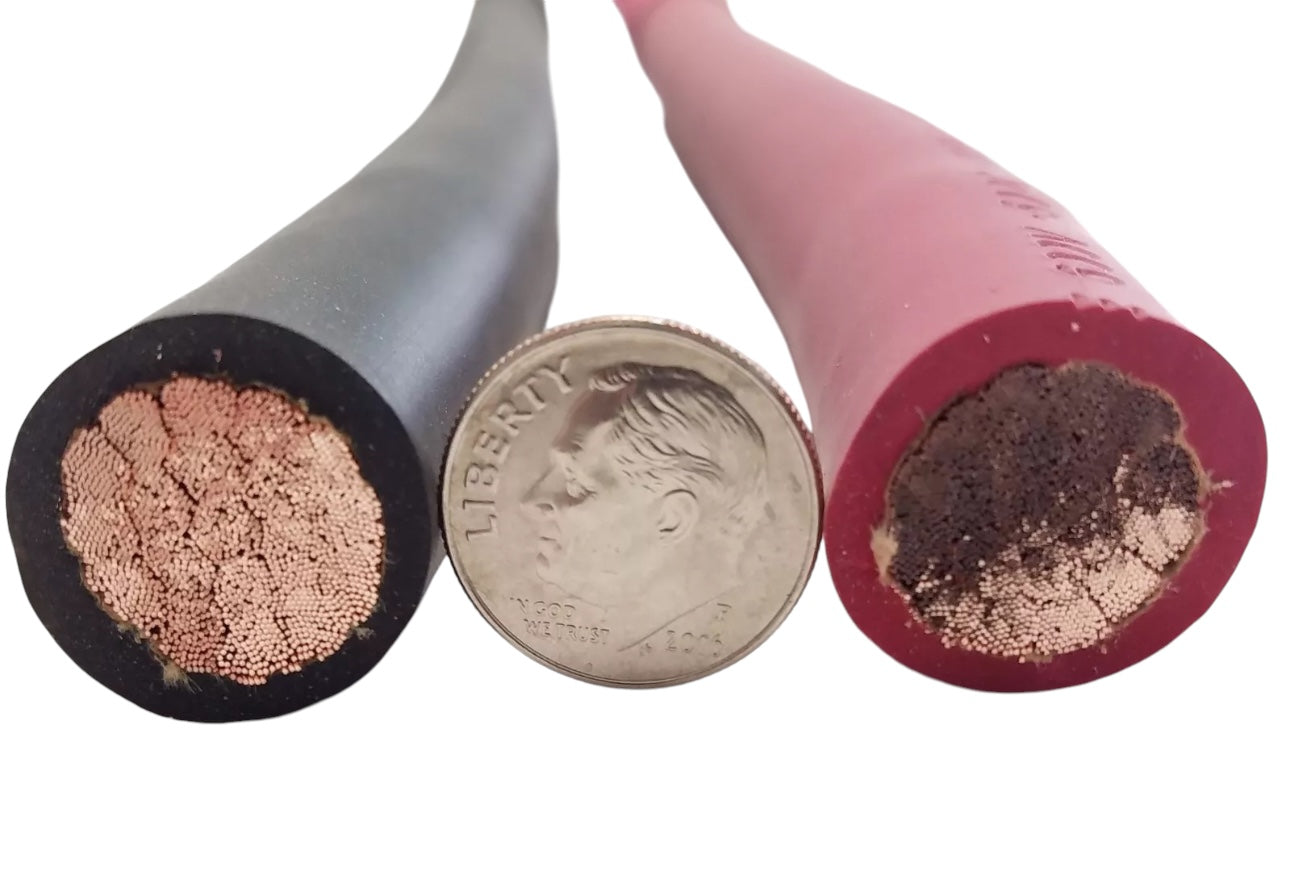

• Highly flexible annealed 30 gauge bare copper conductor, insulated with an EPDM jacket and paper separator.
• Operating temperatures range from -50°C to +105°C (-58°F to +221°F).
• Rated to 600 volts
• HANDLE UP TO 600 AMPS
• BARE Copper Wire Strands: 1,950 / 30 strands
• od:.674
• Meets SAE J1127.
• Rugged jacket and highly flexible.
• Resists Abrasion, Cut, Tear, Flame, Grease, Oil and Water.
• National Electrical Code article 630 electric welders.
• RoHS Compliant.
  Made in the USA.

CUSTOM BUILT AND Assembled USA MADE

USES FOR THESE USA MADE CABLES.

• Automotive CAR/TRUCK Battery Cables
• Solar Battery Bank Array
• Forklift Charging Cables
• Power Inverter Cables
• Welding Cable Leads
• Amplifier Wiring for cars/trucks
• etc
