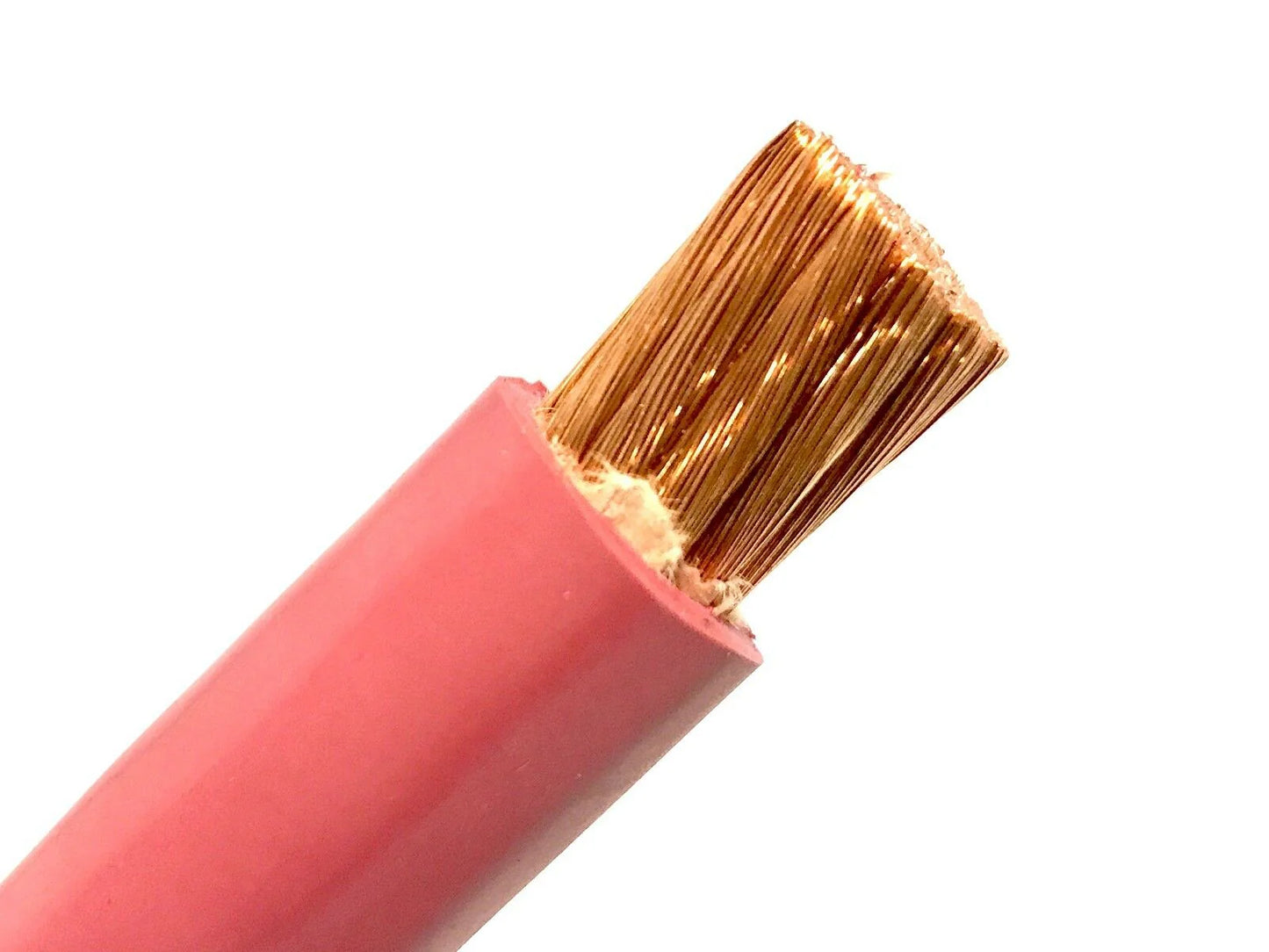

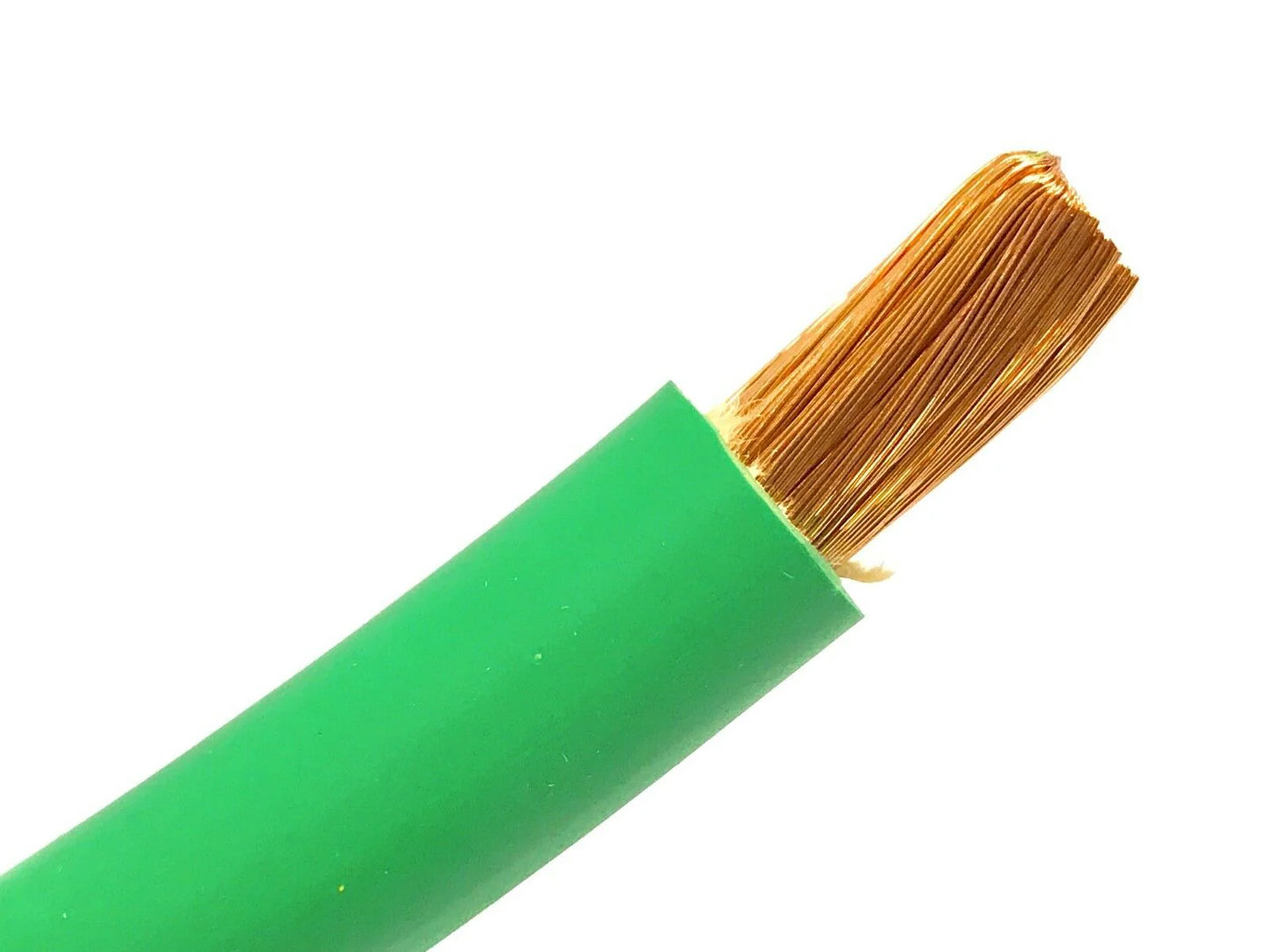

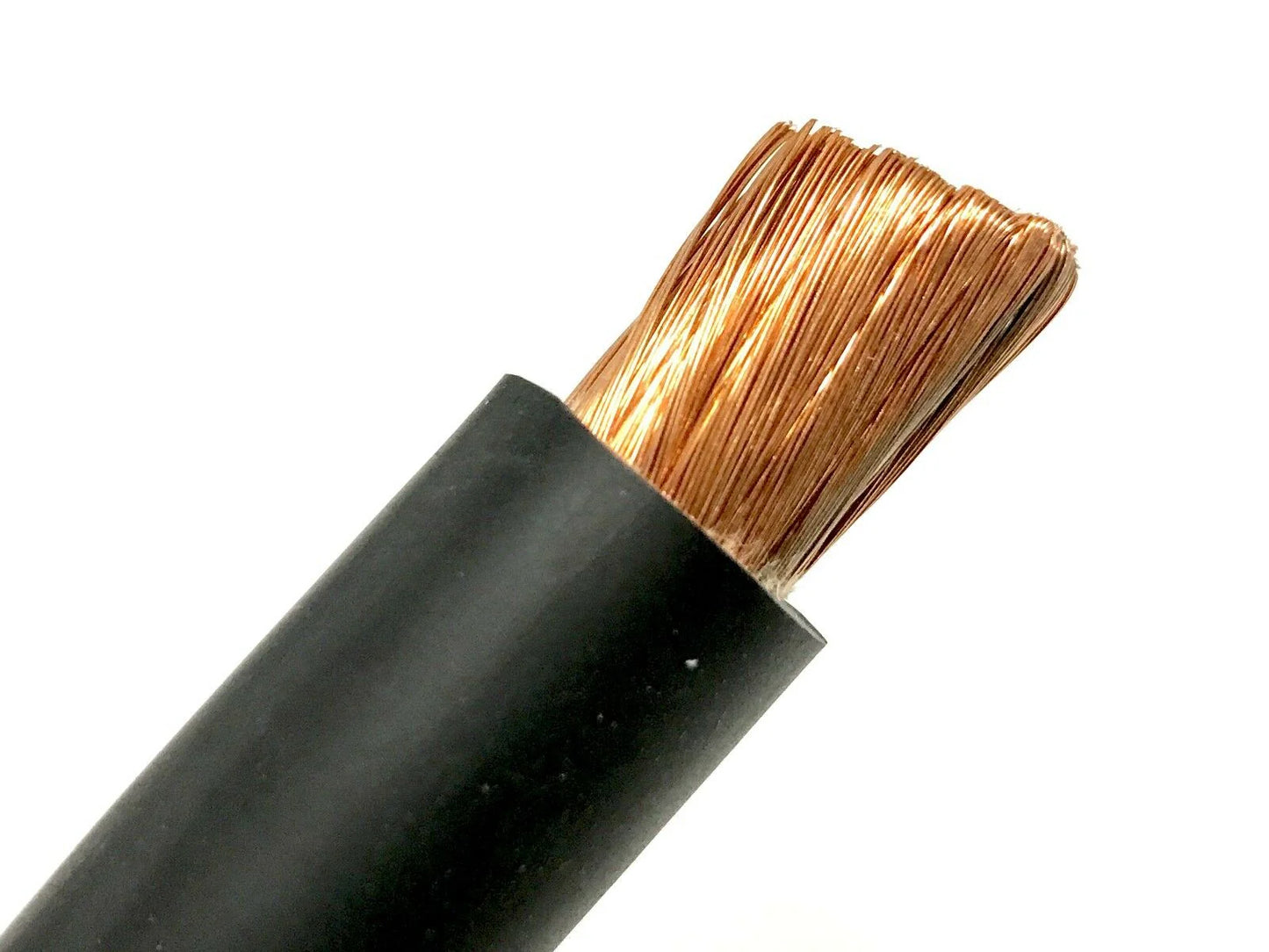

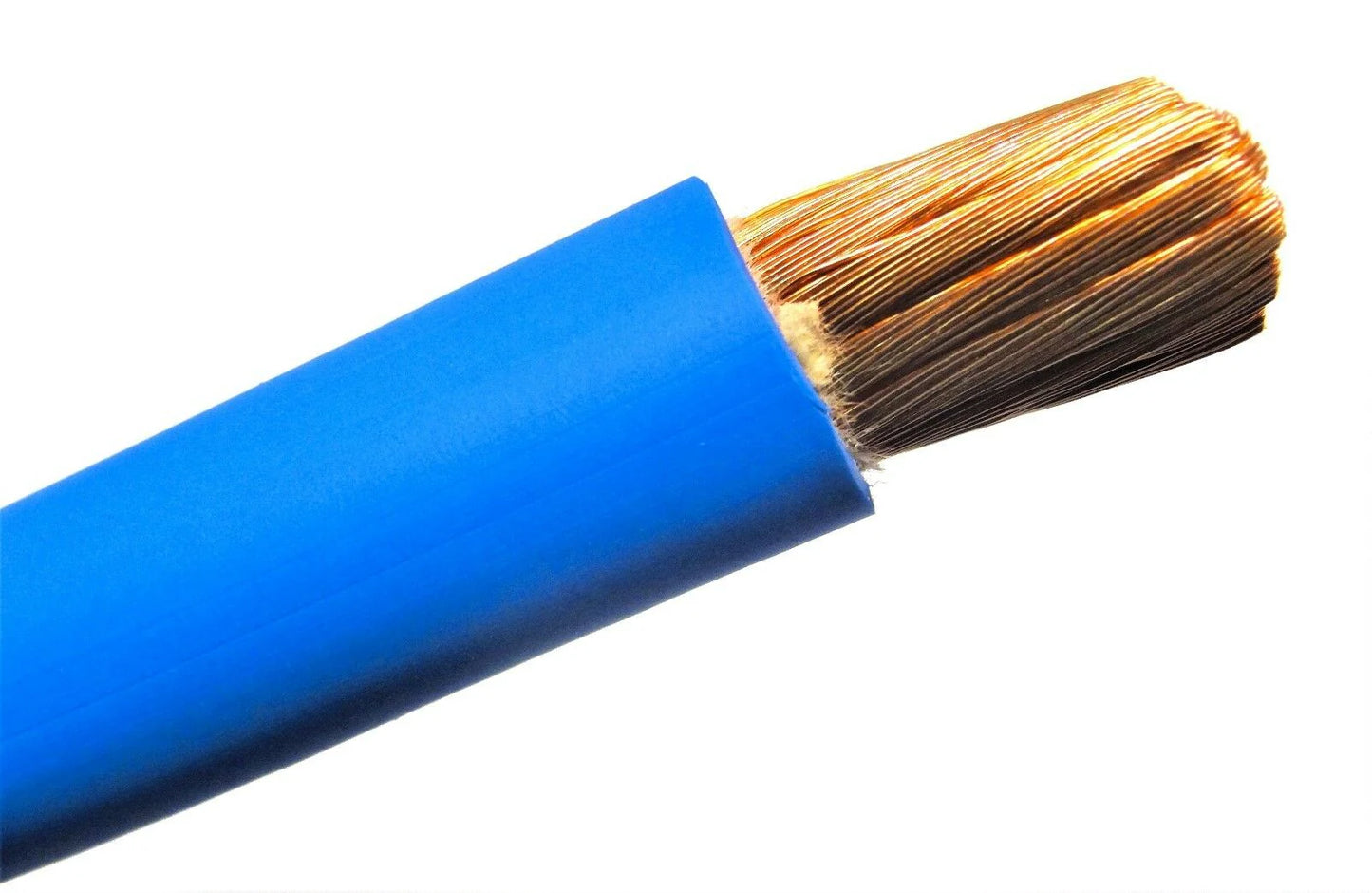

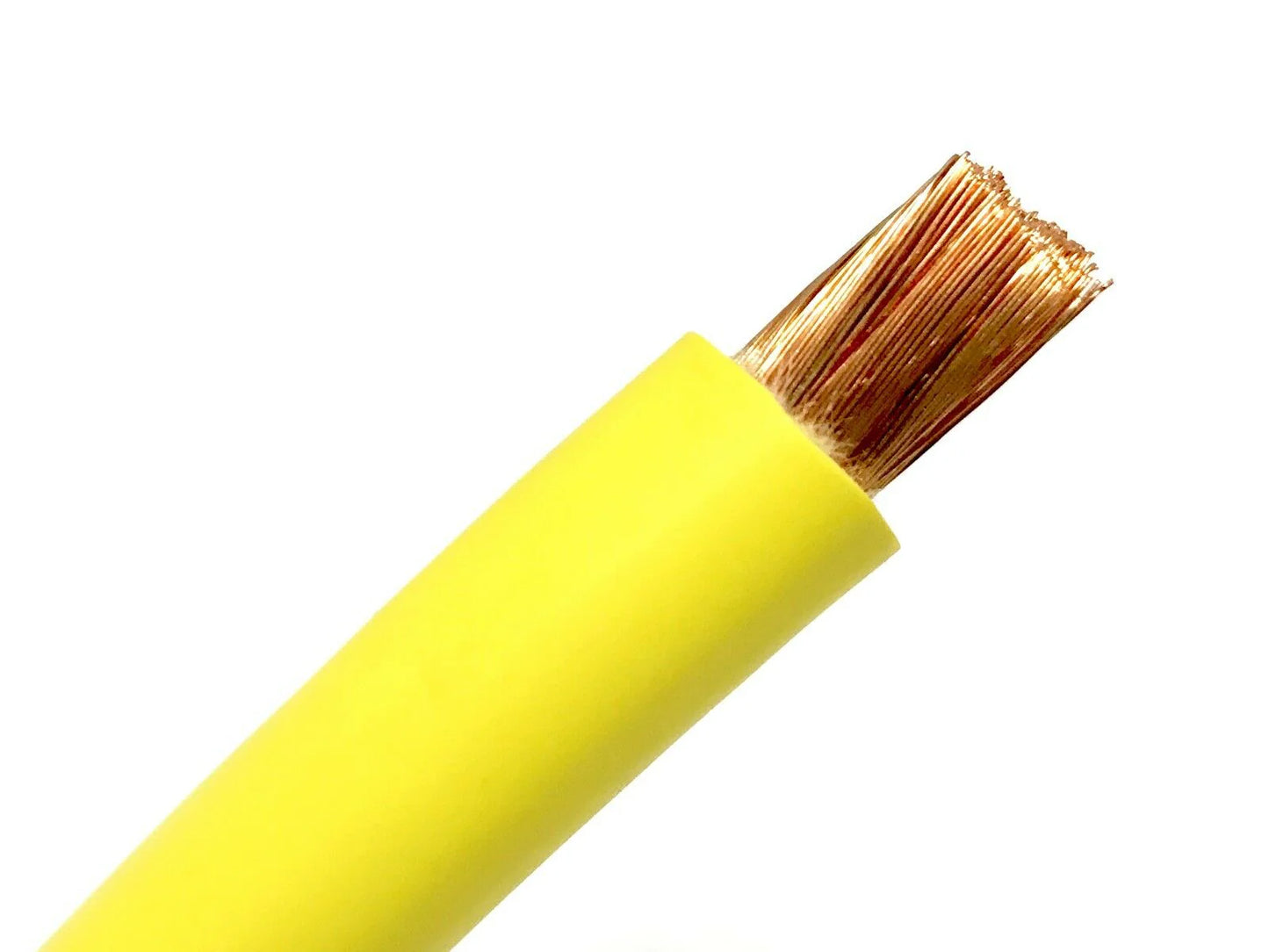

SAE J1127 Welding & Battery Cable

SAE J1127 Welding & Battery Cable

CHOOSE THE AWG SIZE AND COLOR - SOLD PER FT IN ONE LENGTH CUT UNLESS REQUESTED

• Insulation Material EPDM Separator/Wrap Tape Separator

• Number of Conductors 1
• Temperature Rating   -50C to 105C
• Operating Voltage  600V Max

• Applications: Welding - Car Audio - Battery Installs - Solar - Battery Banks - Power Cable

• Used in accordance with National Electric Code Article 630 Electric Welders.
• Designed for use as welding leads from the secondary side of the power source - typical of arc welders and welding generators
• Additional uses may include flexible lead cable; electrode to welder unit, battery cables, and temporary and permanent lead cables
• Industry Approvals
• SAE J1127 Compliant (#6 to 250 MCM)
• NEC Article 630 (Electric Welders)
• Suitable for battery use per UL 558 and 583
• REACH, RoHS, CMRT, and Prop 65 Compliant

• FEATURES
• CONDUCTORS: CLASS K 30 GAUGE COPPER
• INSULATION: EPDM JACKET AND PAPER SEPARATOR
• TEMP RANGE: -50 C TO 105 C
• RATED 600V
• MEETS SAE J1127
• RESISTS ABRASION, CUT, TEARS, FLAME, GREASE, OIL AND ALSO WATER.
• NATIONAL ELECTRICAL CODE ARTICLE 630 ELECTRIC WELDERS.
• 600V RATED
• VW-1 FLAME TEST PER UL2556
• SUITABLE FOR BATTERY CABLE PER UL558 & UL583
• MADE IN THE USA.

• OD SIZES INCHES:
• #8 .270
• #6 .305
• #4 .333
• #2 .415
• #1 .443
• 1/0 .488
• 2/0 .526
• 3/0 .609
• 4/0 .674
