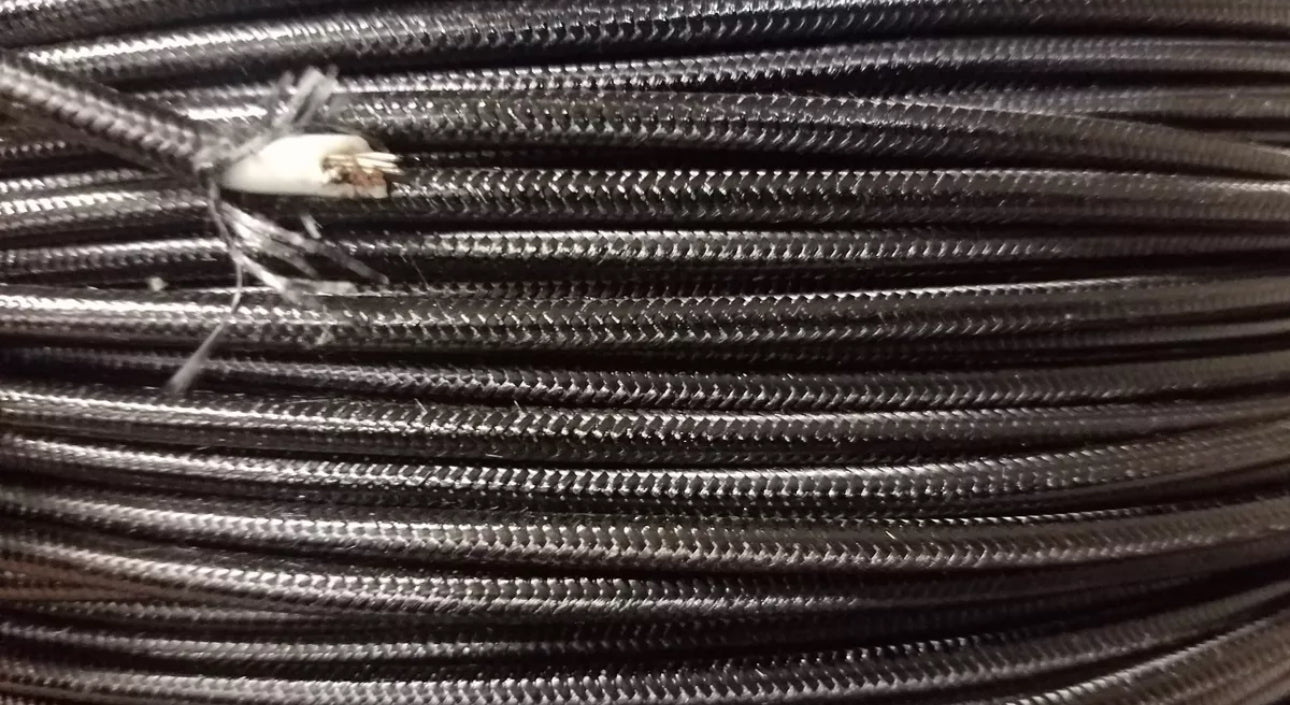

14 AWG SF-2, SEW-2, High Temperature Lead Wire, UL 3231/3071, 200C

14 AWG SF-2, SEW-2, High Temperature Lead Wire, UL 3231/3071, 200C

(BUY PER FOOT)

SHIPS ON A PLASTIC SPOOL (50 FT AND UP).

1 - 50 FT  SHIPS IN A WRAPPED UP COIL.

Application:
SF-2 & SEW-2 is a high temperature wire suitable for use in 600V applications up to 200°C.

 Applicable Standards:

-  UL approved as fixture wire as fixture wire (SF-2)
-  UL Style 3231 & 3071
-  CSA Type SEW-2

Conductor:
Tinned, annealed copper per ASTM B-33, Class B stranded per ASTM B-8

Insulation:
Silicone rubber

Jacket:
Fiberglass braid with a high temperature finishing

Specifications*:

Size: 14 AWG
Number of Strands: 7
Insulation Thickness: 0.030 inches
Braid Thickness: 0.005 inches
Outside Diameter: 0.145 inches
Weight: 0.021 lbs per ft
Ampacity: 36 Amps
Voltage: 600 Volts
Max Temp: 200°C/392°F
