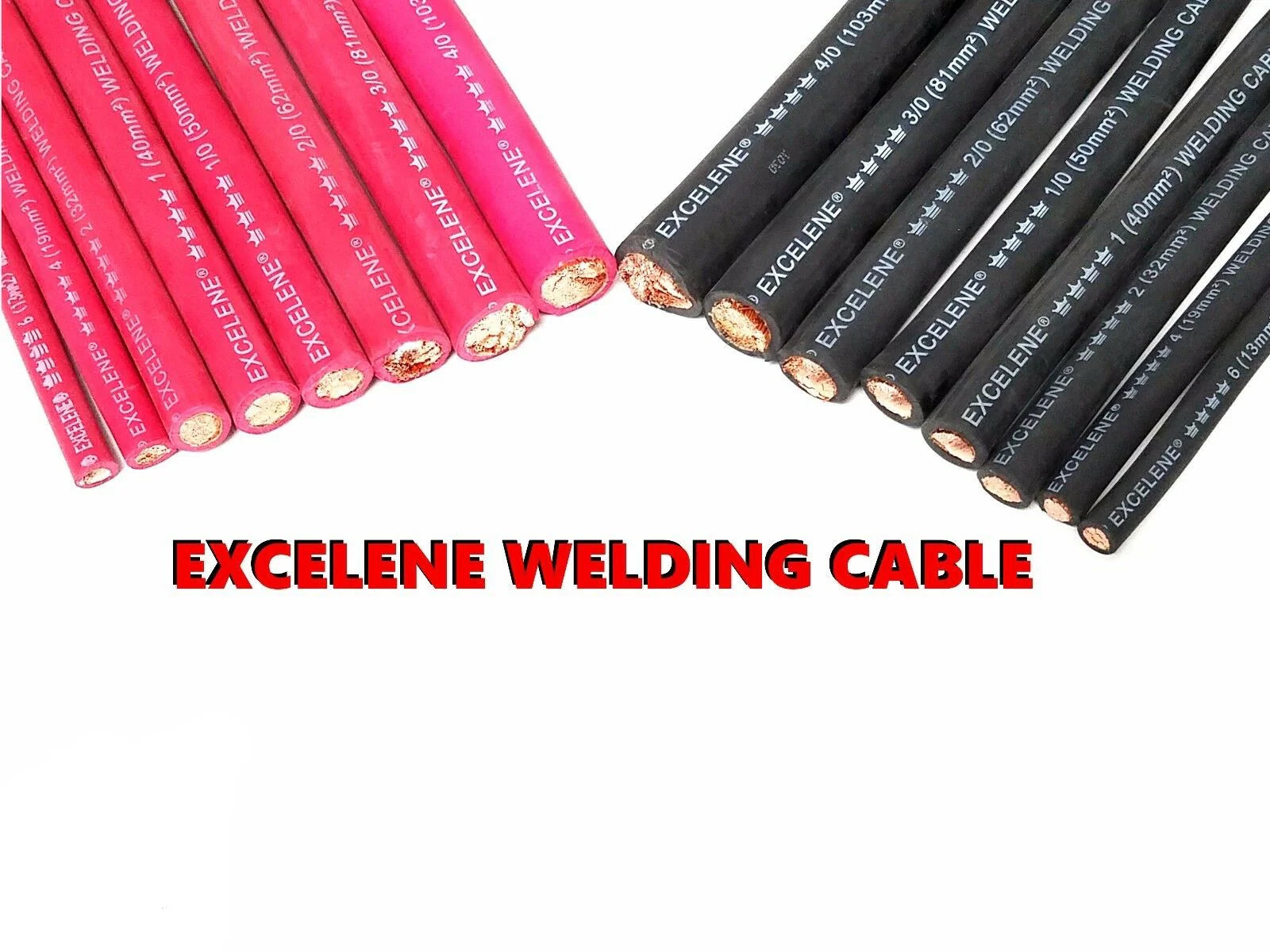

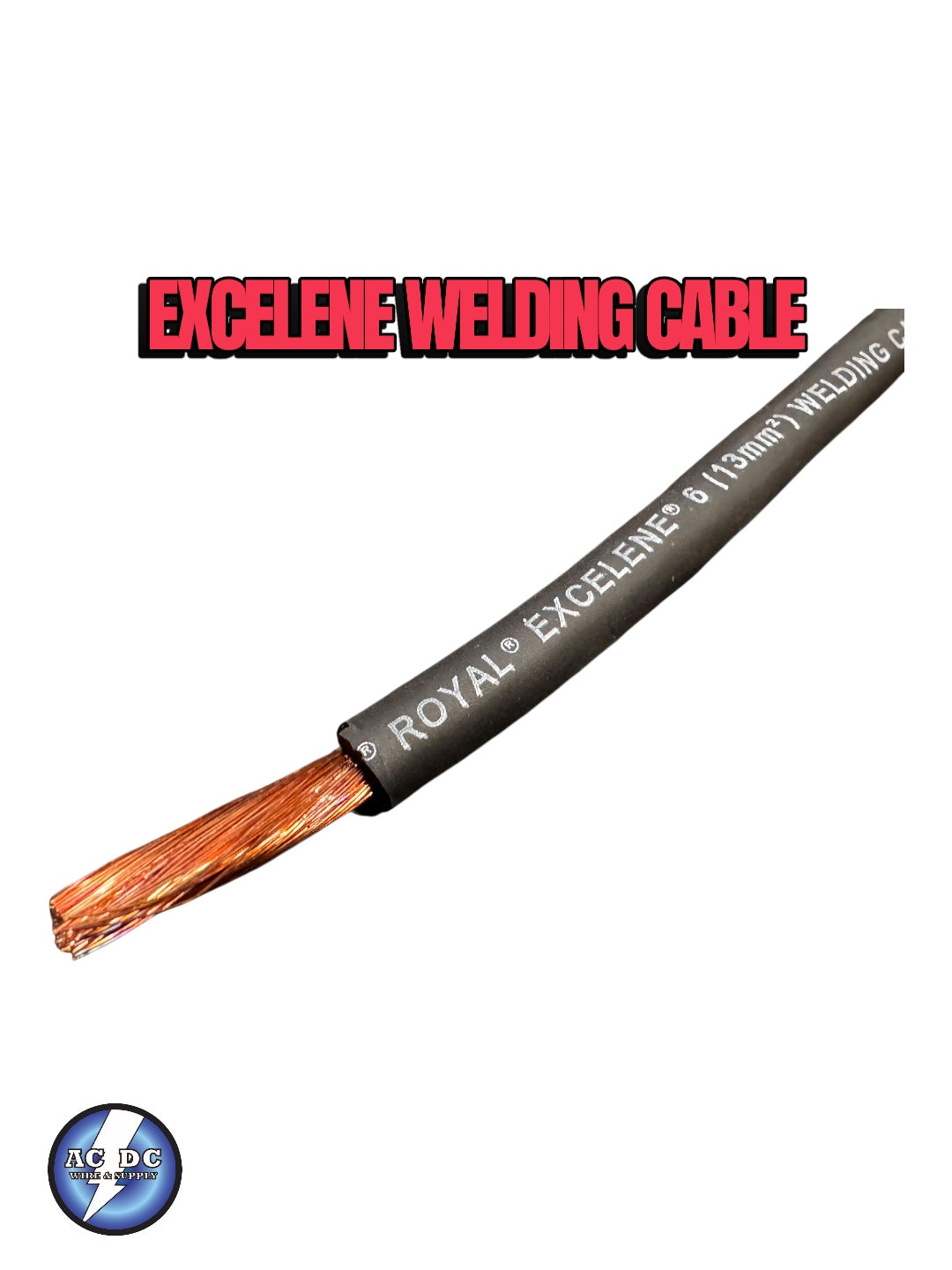

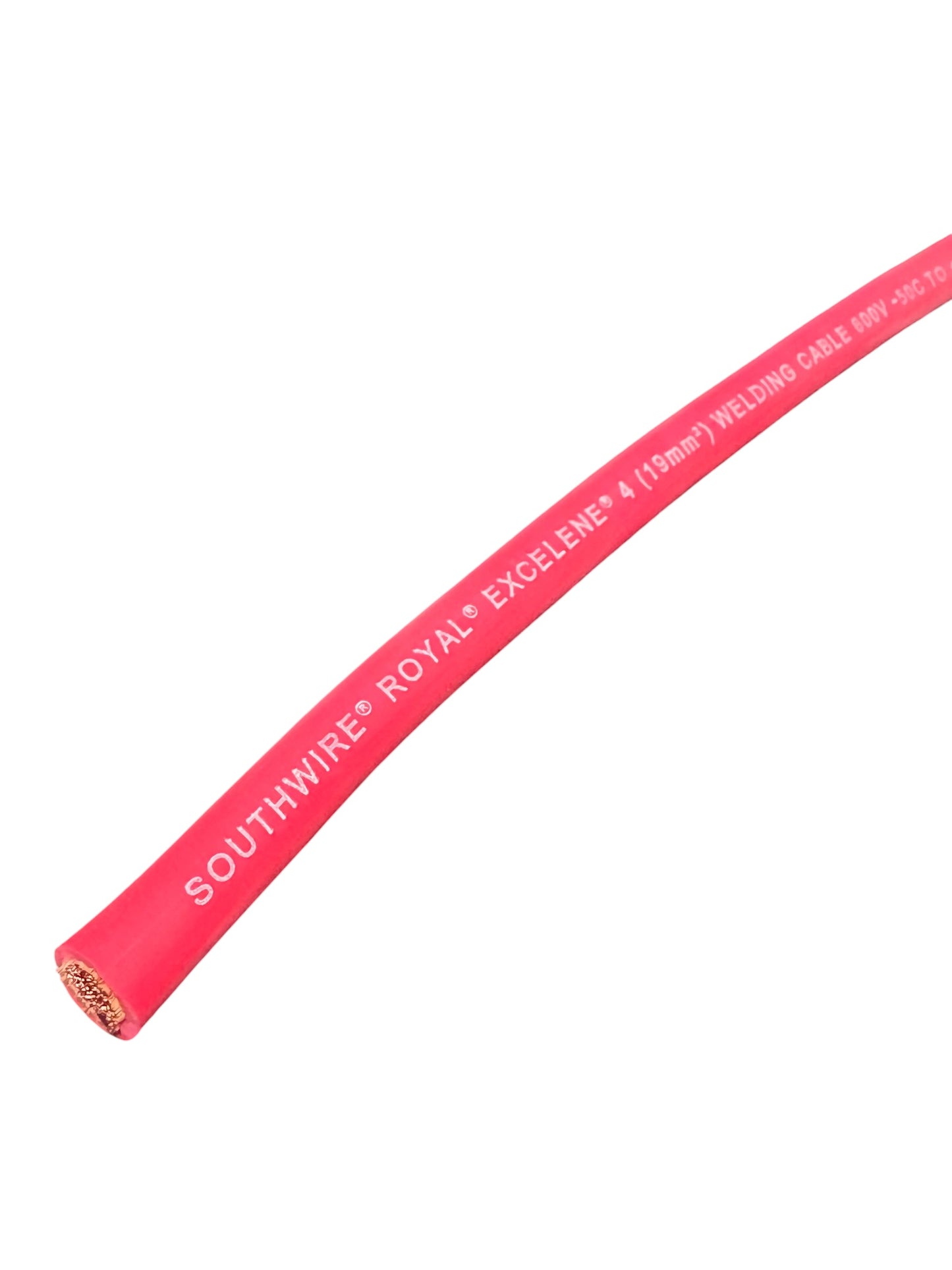

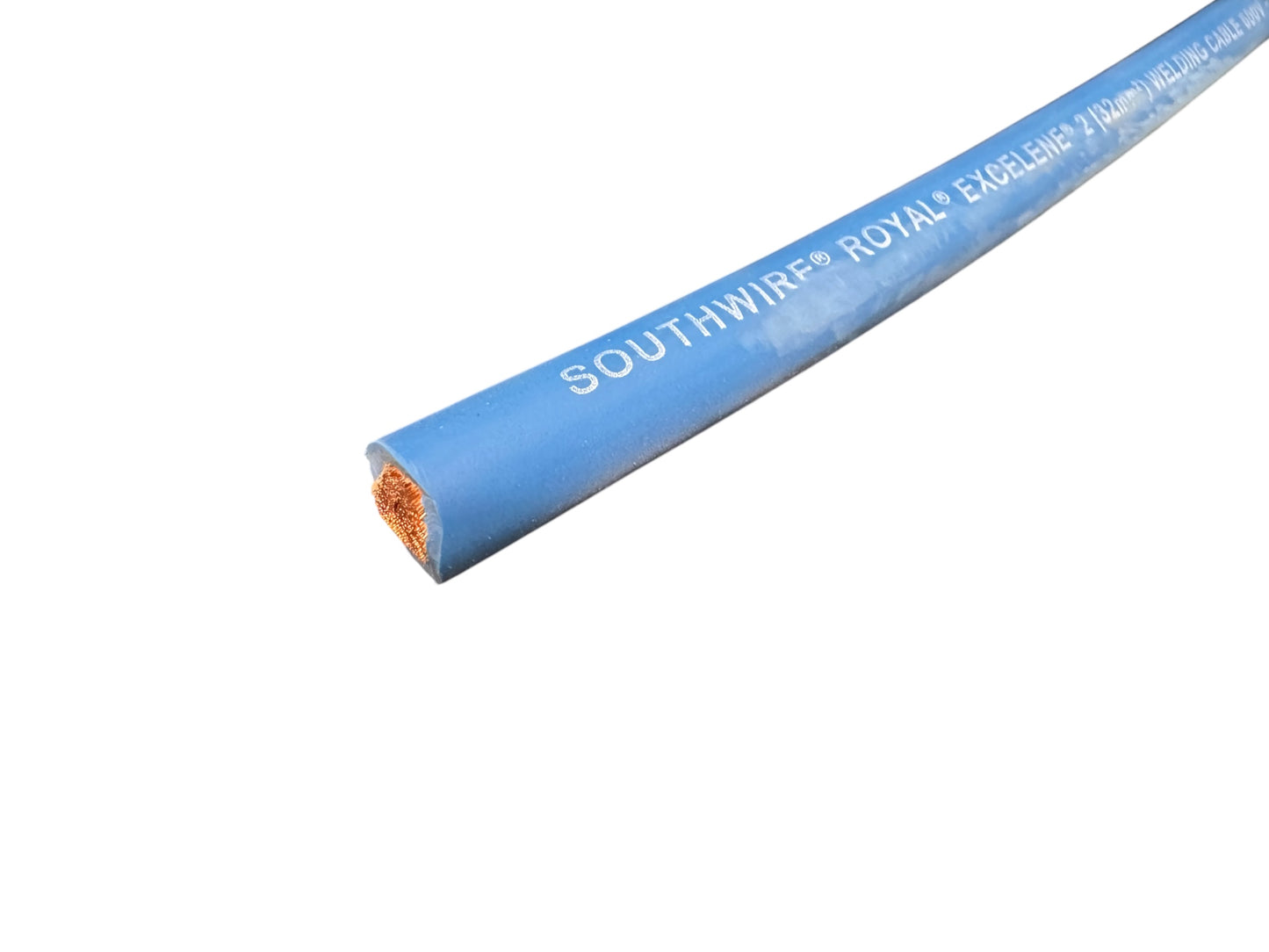

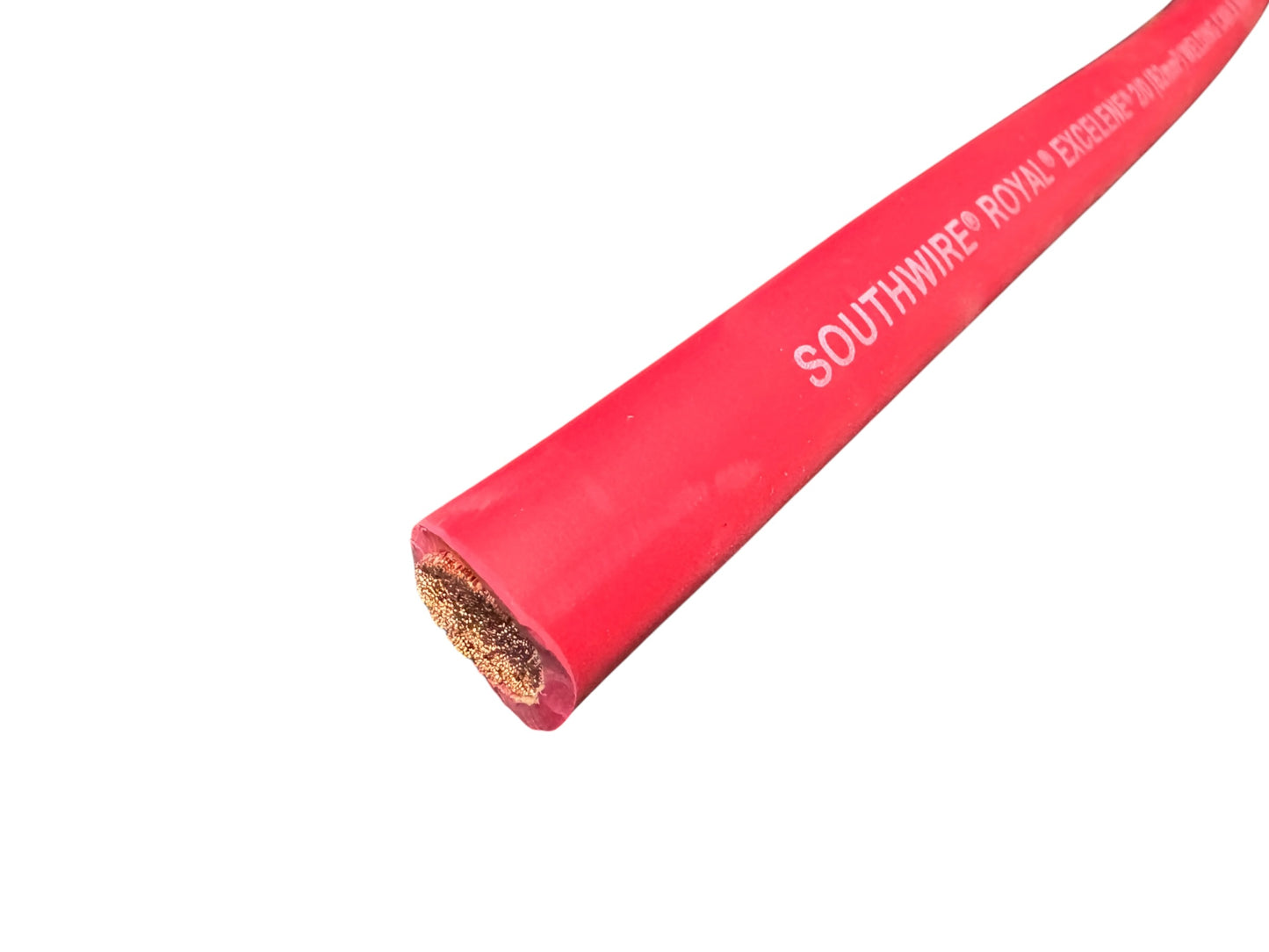

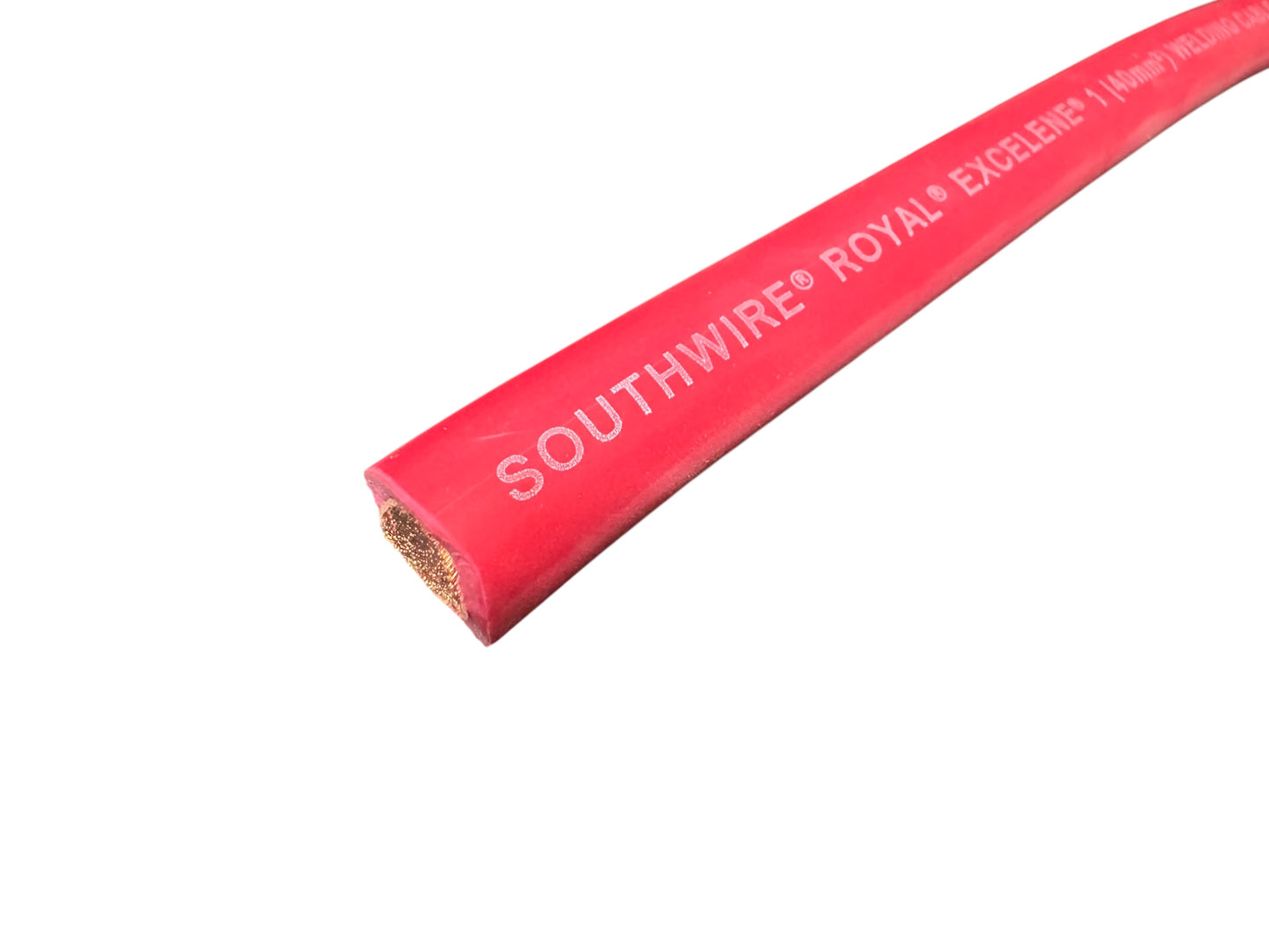

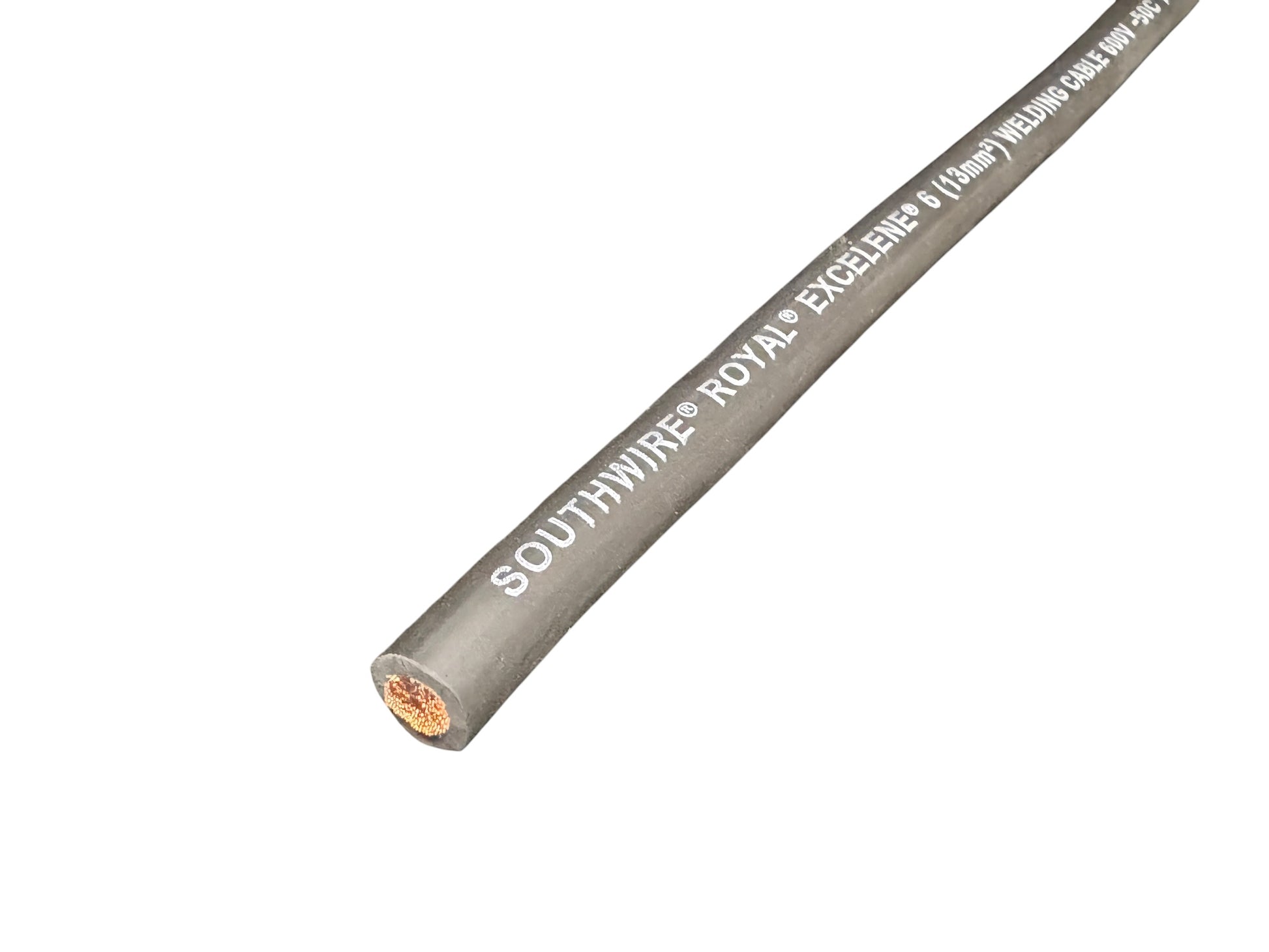

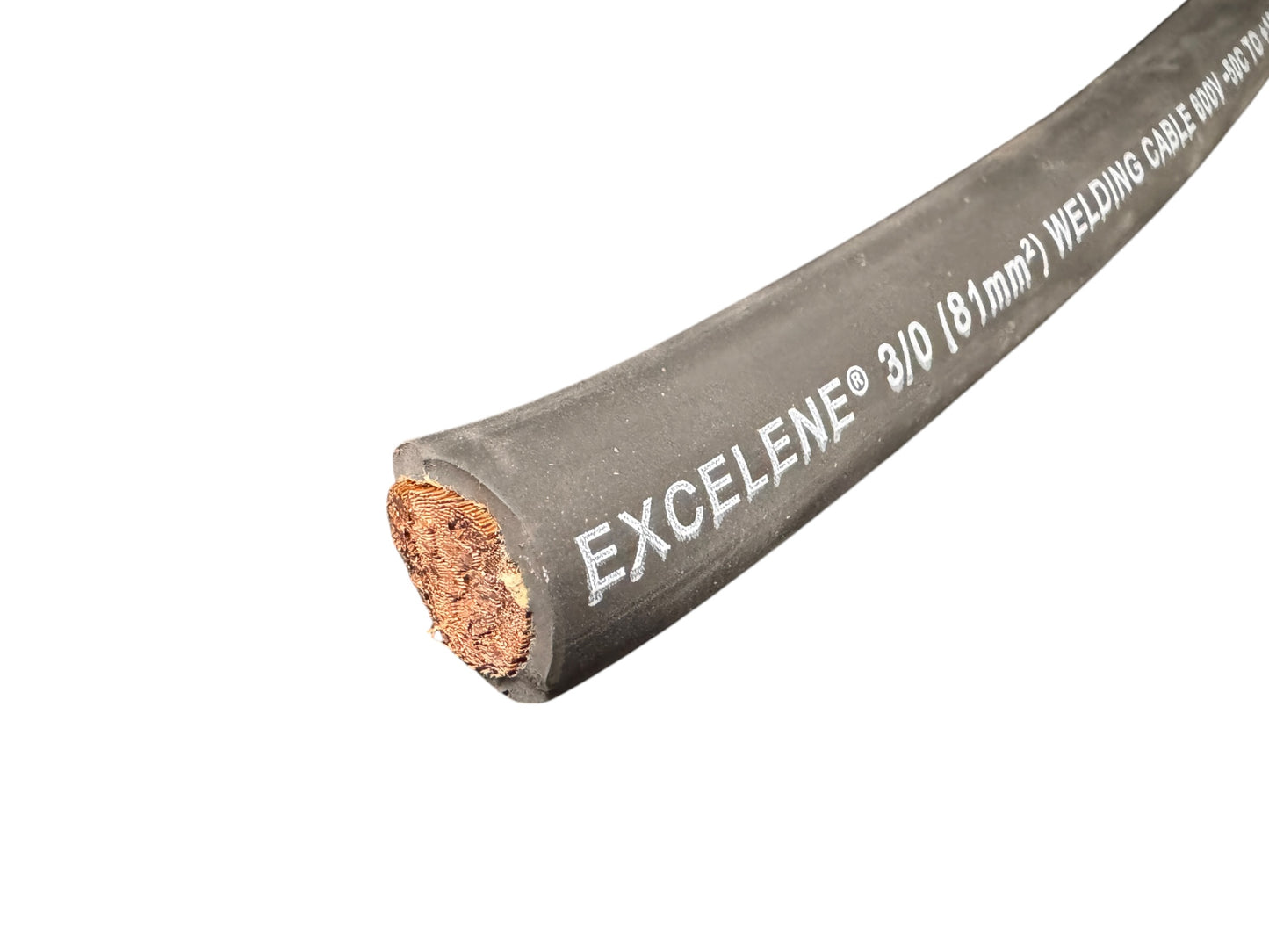

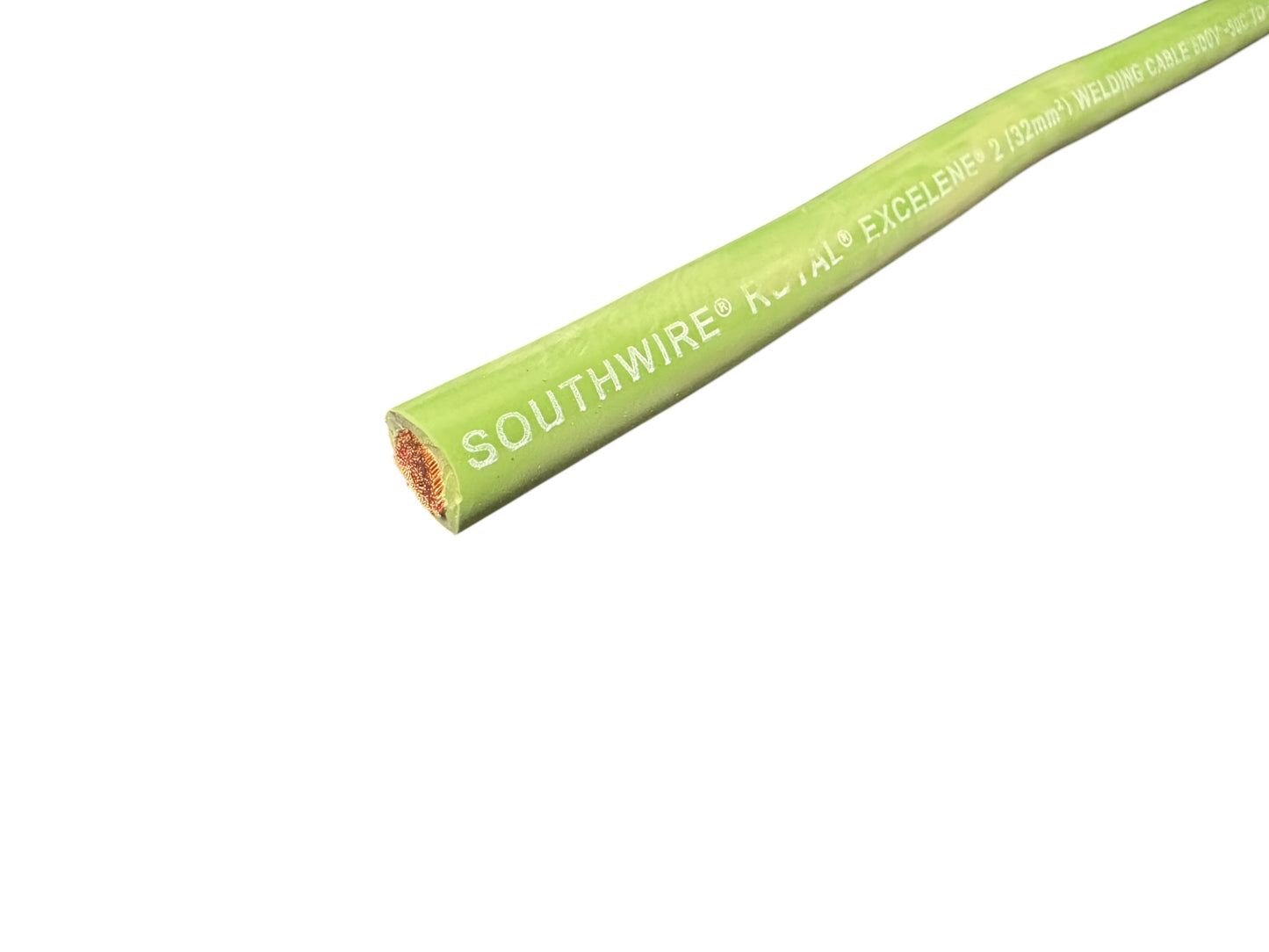

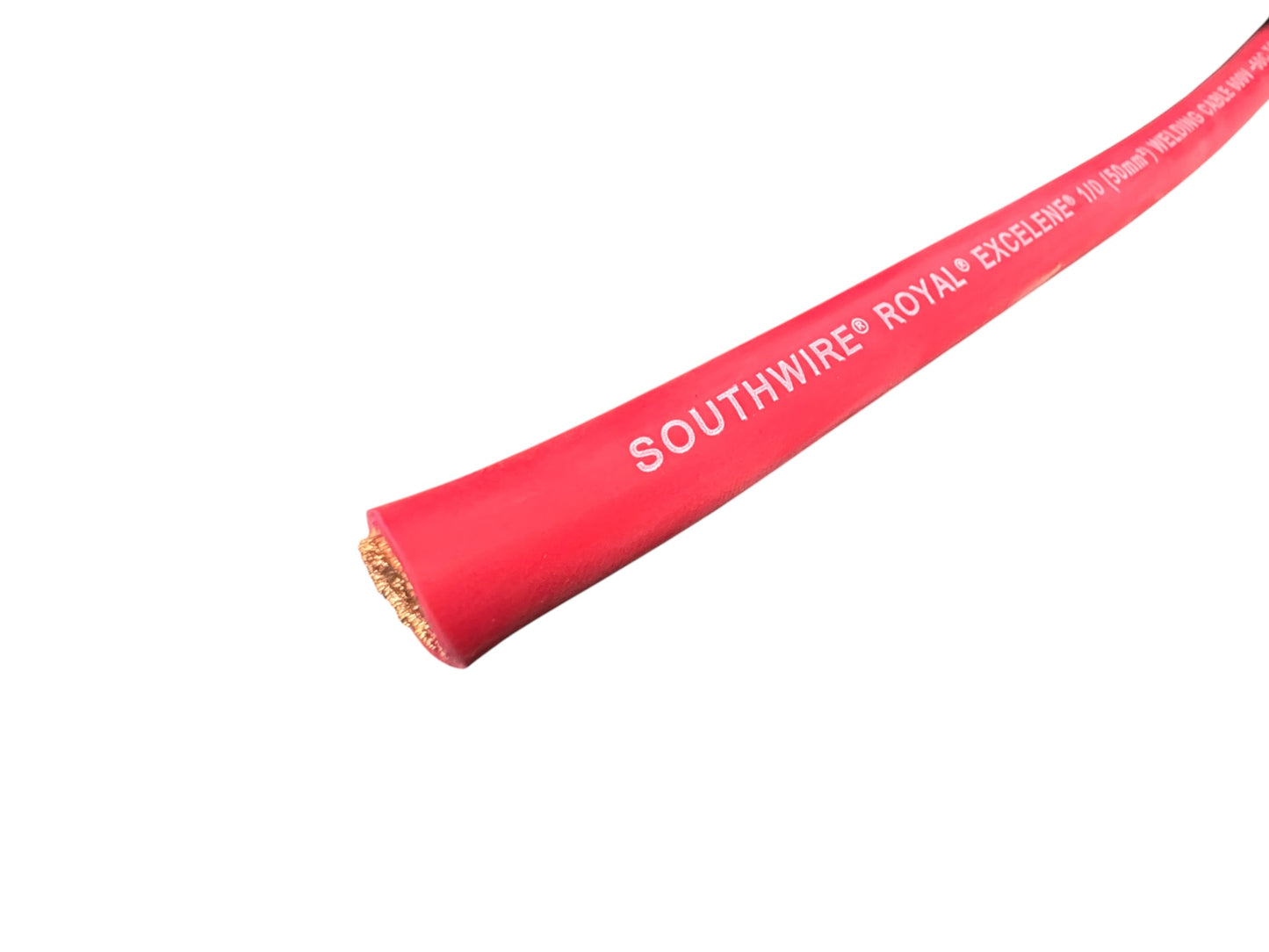

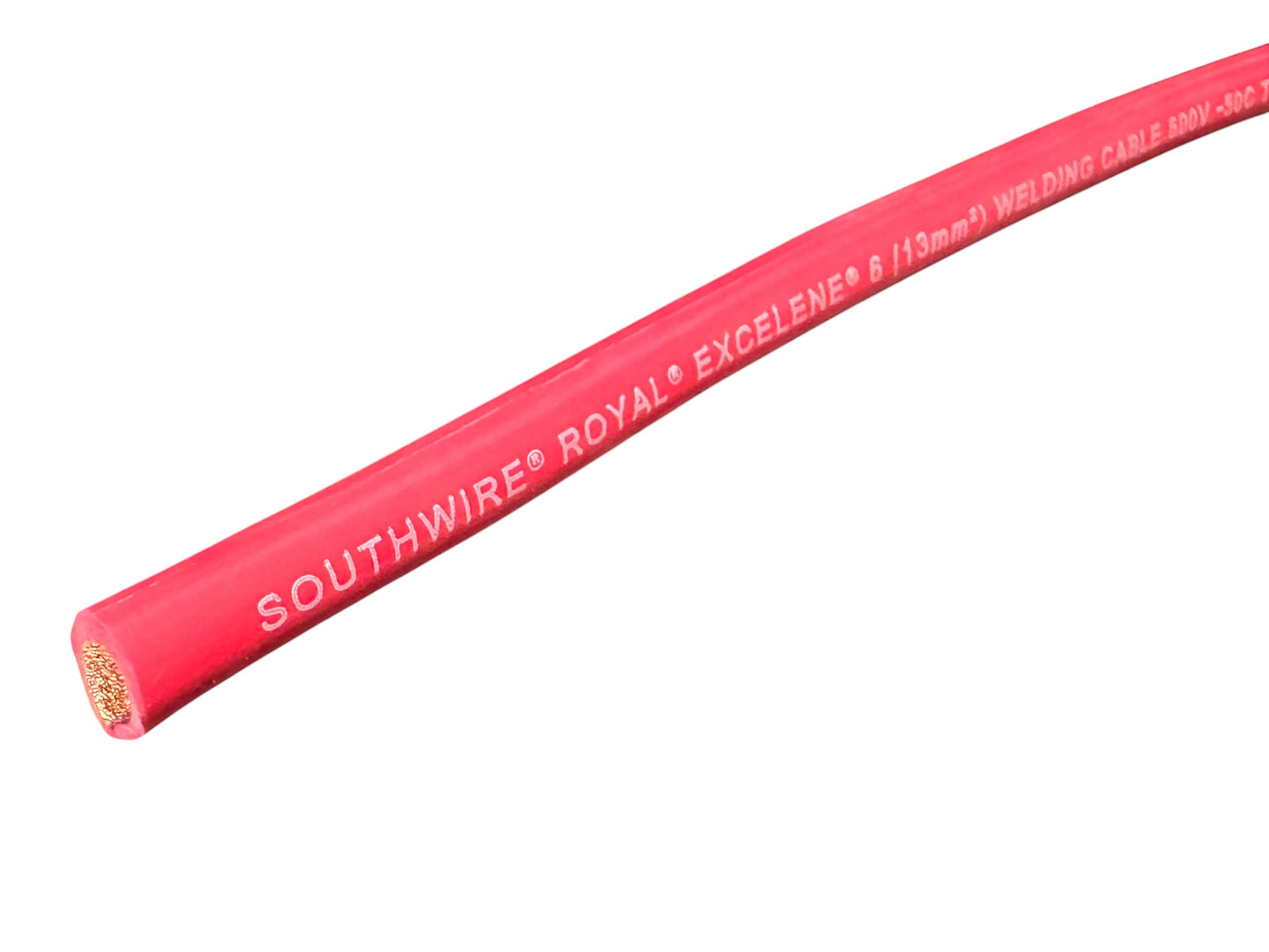

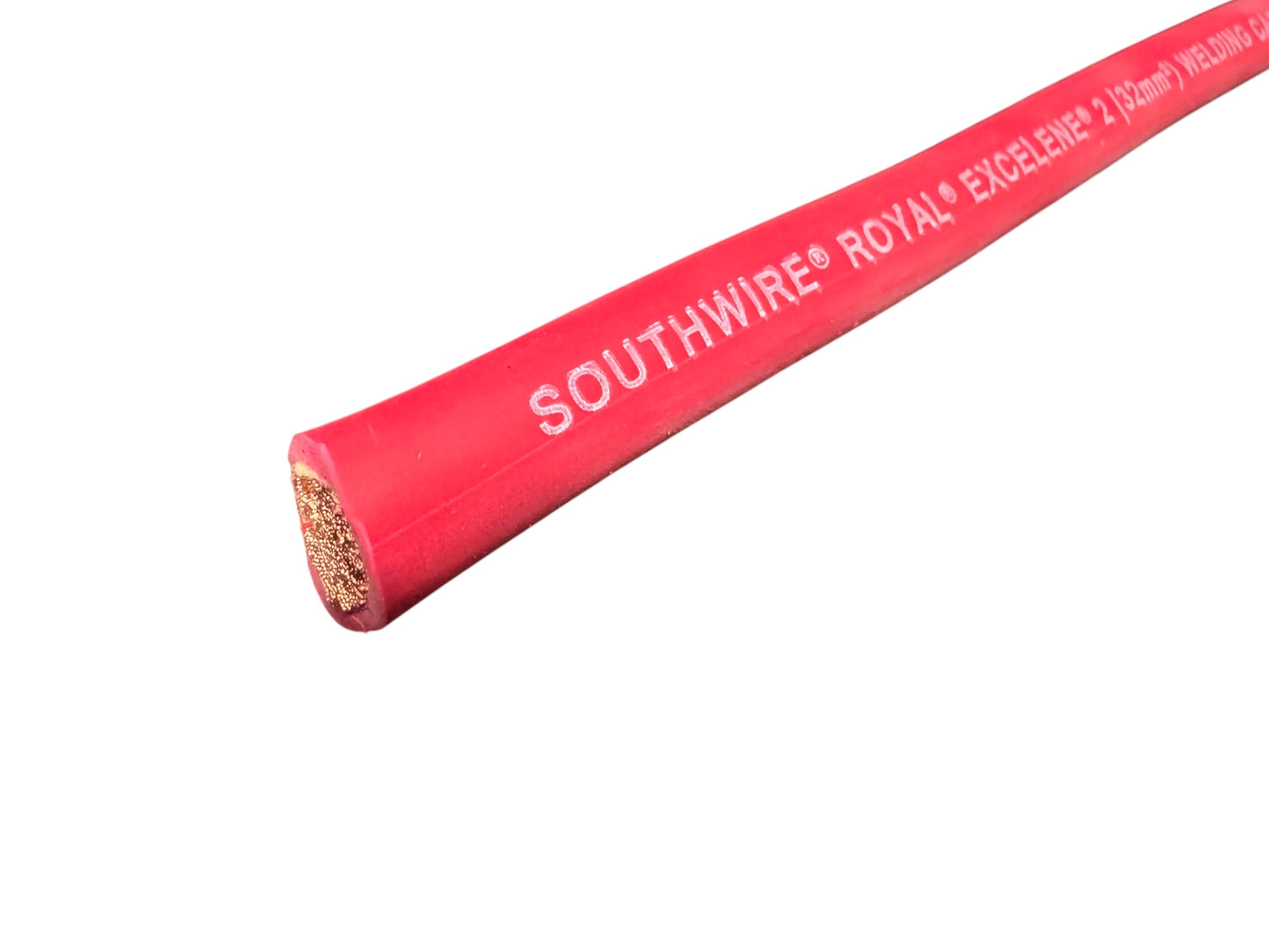

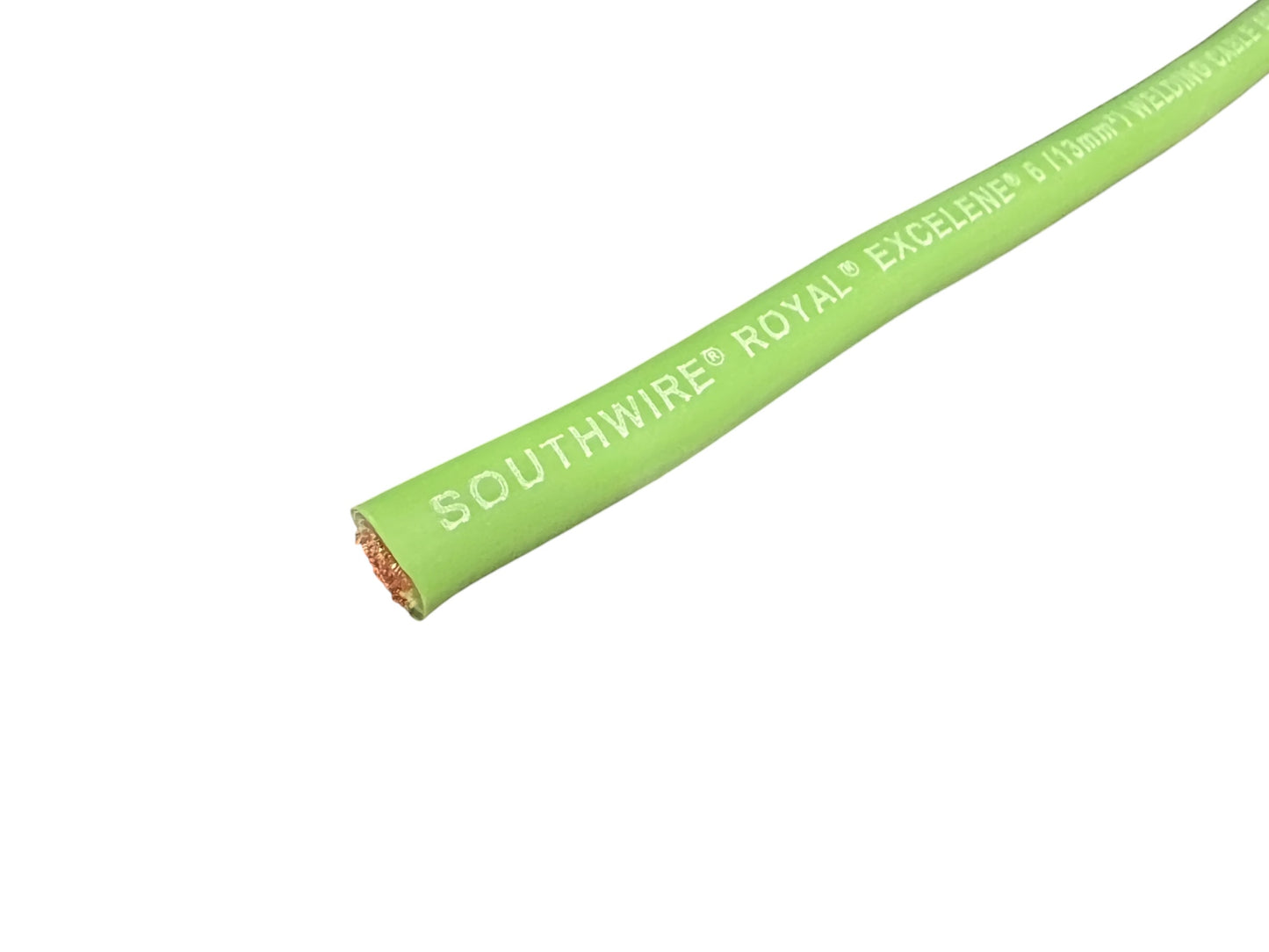

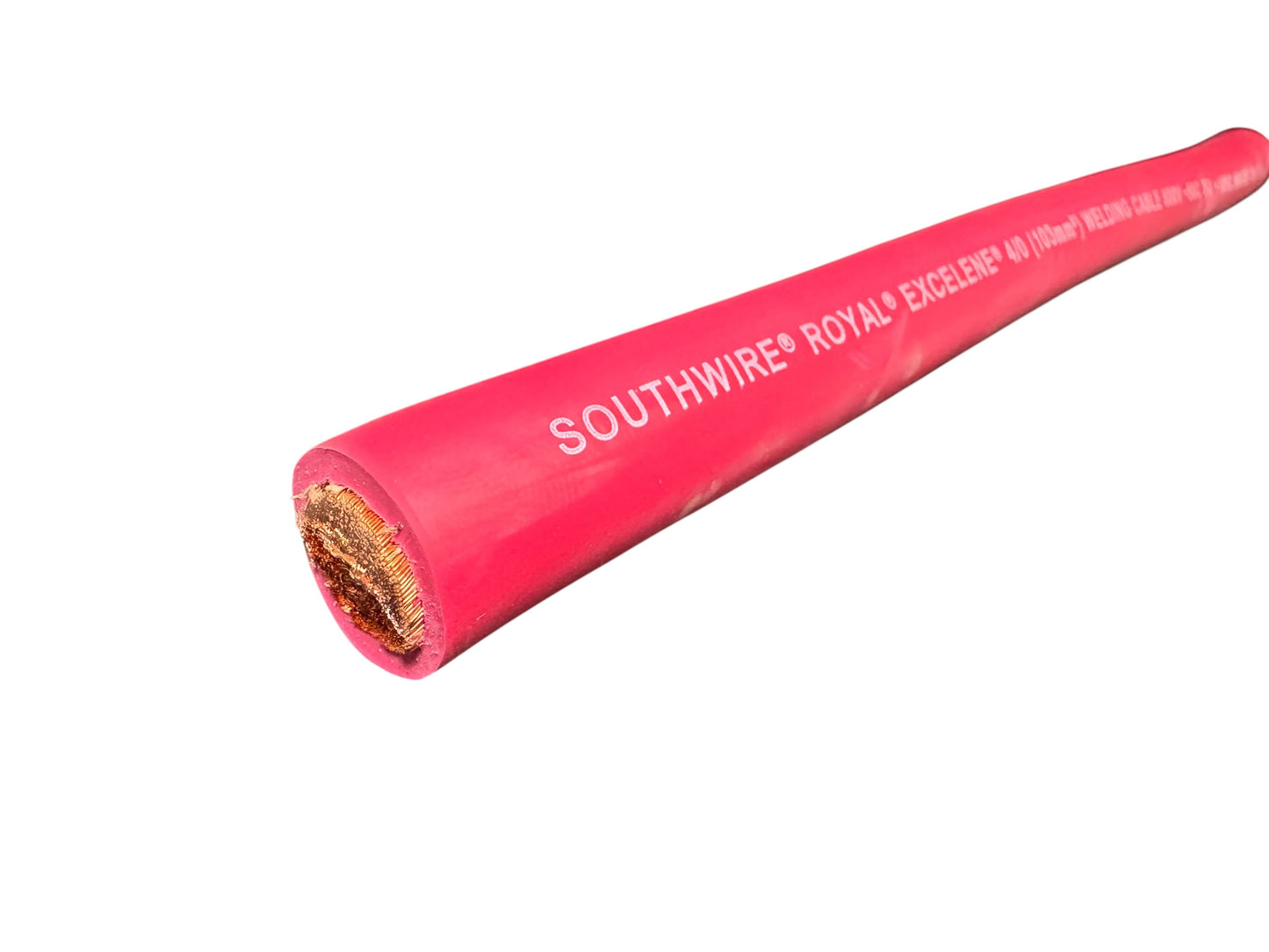

EXCELENE Battery and Welding Cable Copper 4/0 TO 6 Gauge.

 EXCELENE Battery and Welding Cable Copper 4/0 TO 6 Gauge

(BY THE FOOT)

FEATURES:
ANNEALED STRANDED BARE COPPER PER ASTM B-172
OZONE, SUN, WEATHER AND CHEMICAL RESISTANT

APPLICATIONS:
USED FOR ELECTRIC WELDERS, WELDING LEADS, ARC WELDERS, BATTERY CABLES, PERMANENT LEAD CABLES, BIG 3 CAR AUDIO CABLES, SOLAR BATTERY BANKS.( IF YOUR USING THIS CABLE FOR CAR AUDIO INSTALLS THEN I WOULD USE THE 2/0 EXCELENE FOR POWER IT'S RATED FOR 400 AMPS ,IT'S THE SAME AS CAR AUDIO 0 GAUGE.)
ROHS COMPLIANT
MADE IN THE U.S.A

SPECS:

* RESISTS ABRASION, CUT, TEARS, FLAME, GREASE, OIL AND ALSO WATER.
* NATIONAL ELECTRICAL CODE ARTICLE 630 ELECTRIC WELDERS.
* 600V RATED
* ROHS COMPLIANT
* 105C TEMP
* CAN BE USED IN FLEXIBLE LEAD CABLE, ELECTRODE TO WELDER , BATTERY CABLES AND TEMPORARY AND PERMANENT LEAD CABLES AND ETC.

CONSTRUCTION: 1. Conductor: Annealed flexible soft drawn bare copper per ASTM B3.

2. Separator: Paper separator for ease of stripability

3. Insulation: EPDM

 MADE IN THE USA

AMPS:

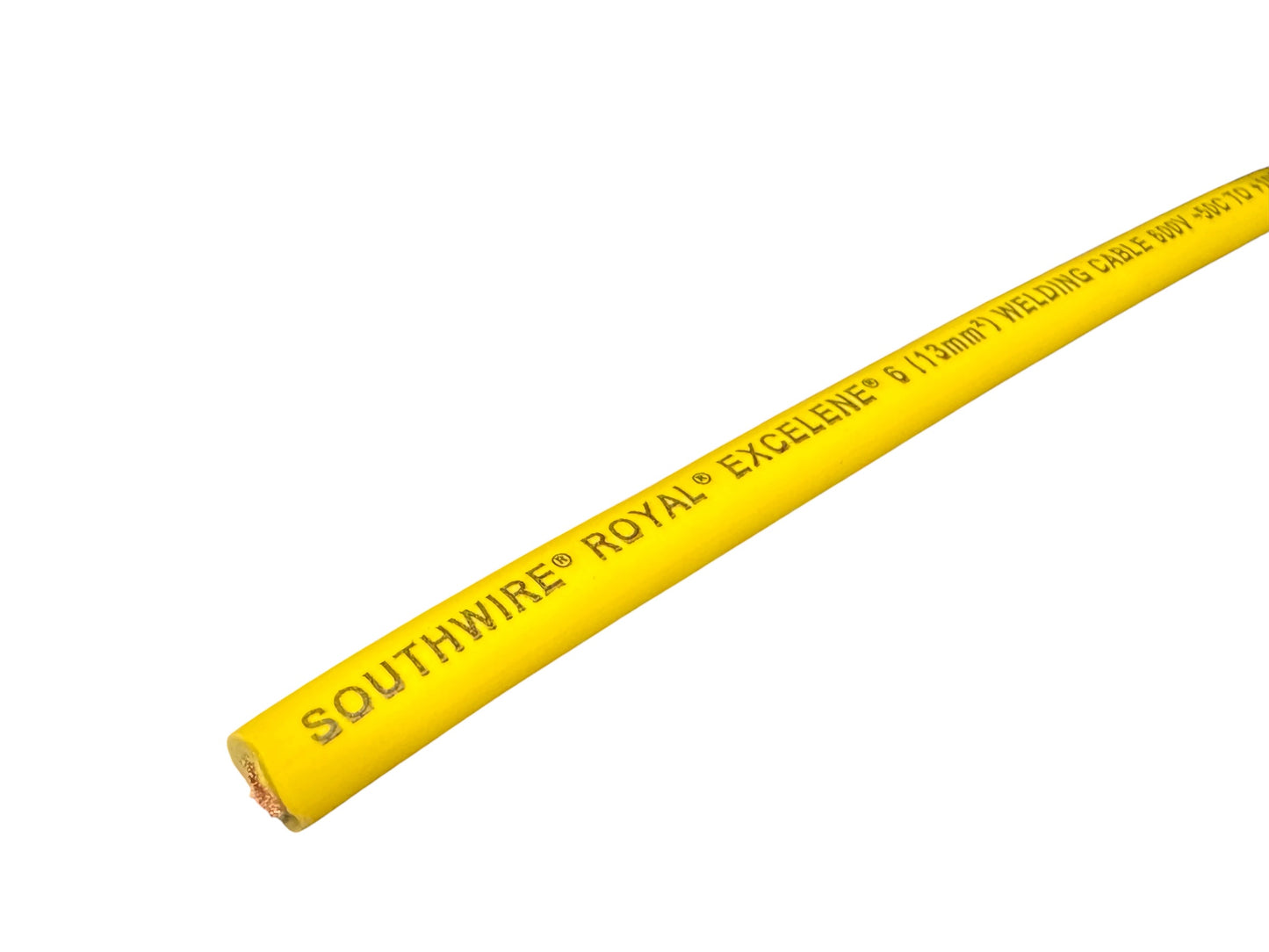

• 6 AWG   (259XBC)  OD: 0.305  -  105A

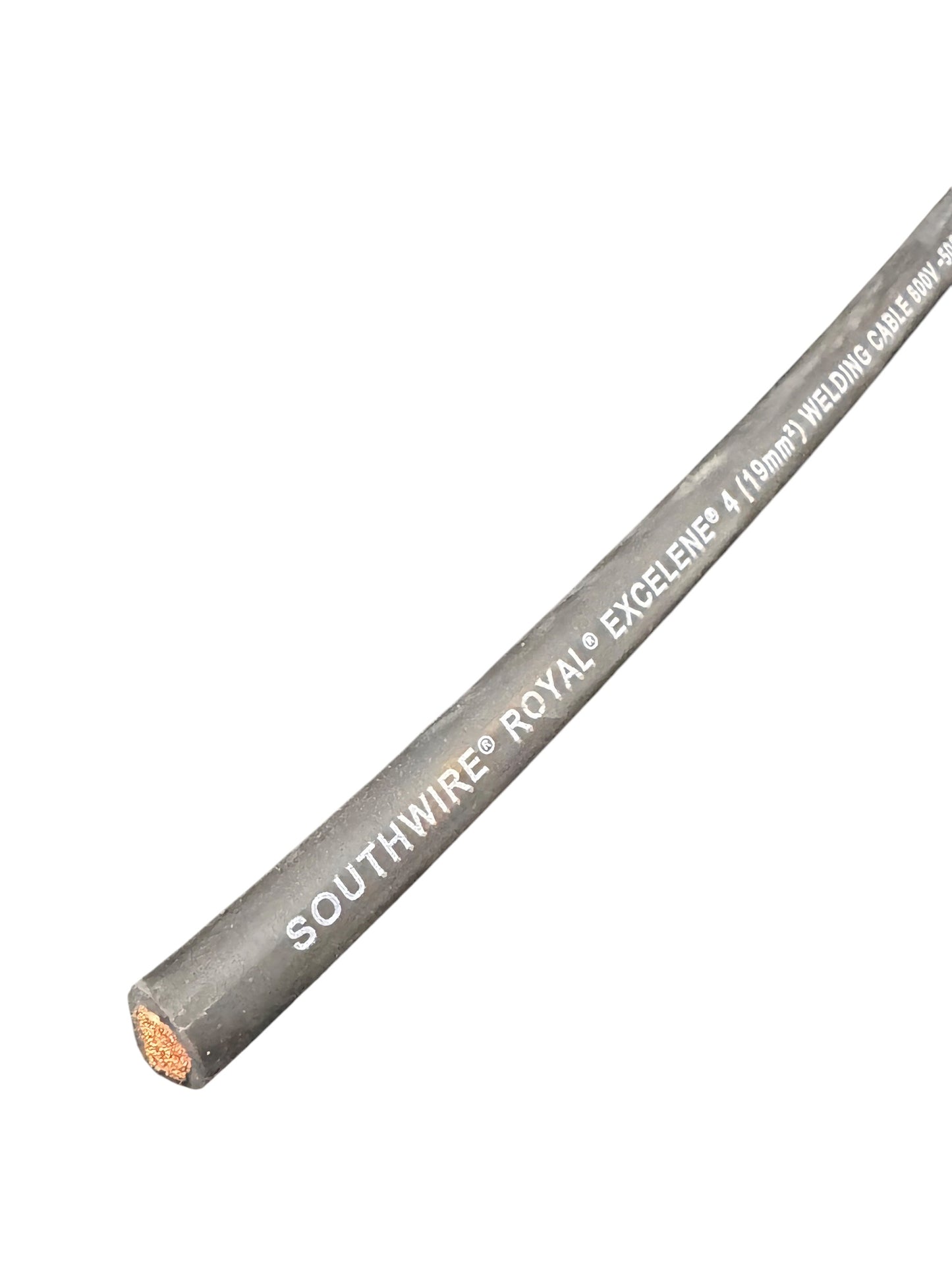

• 4 AWG   (385XBC)  OD: 0.340  -  140 A

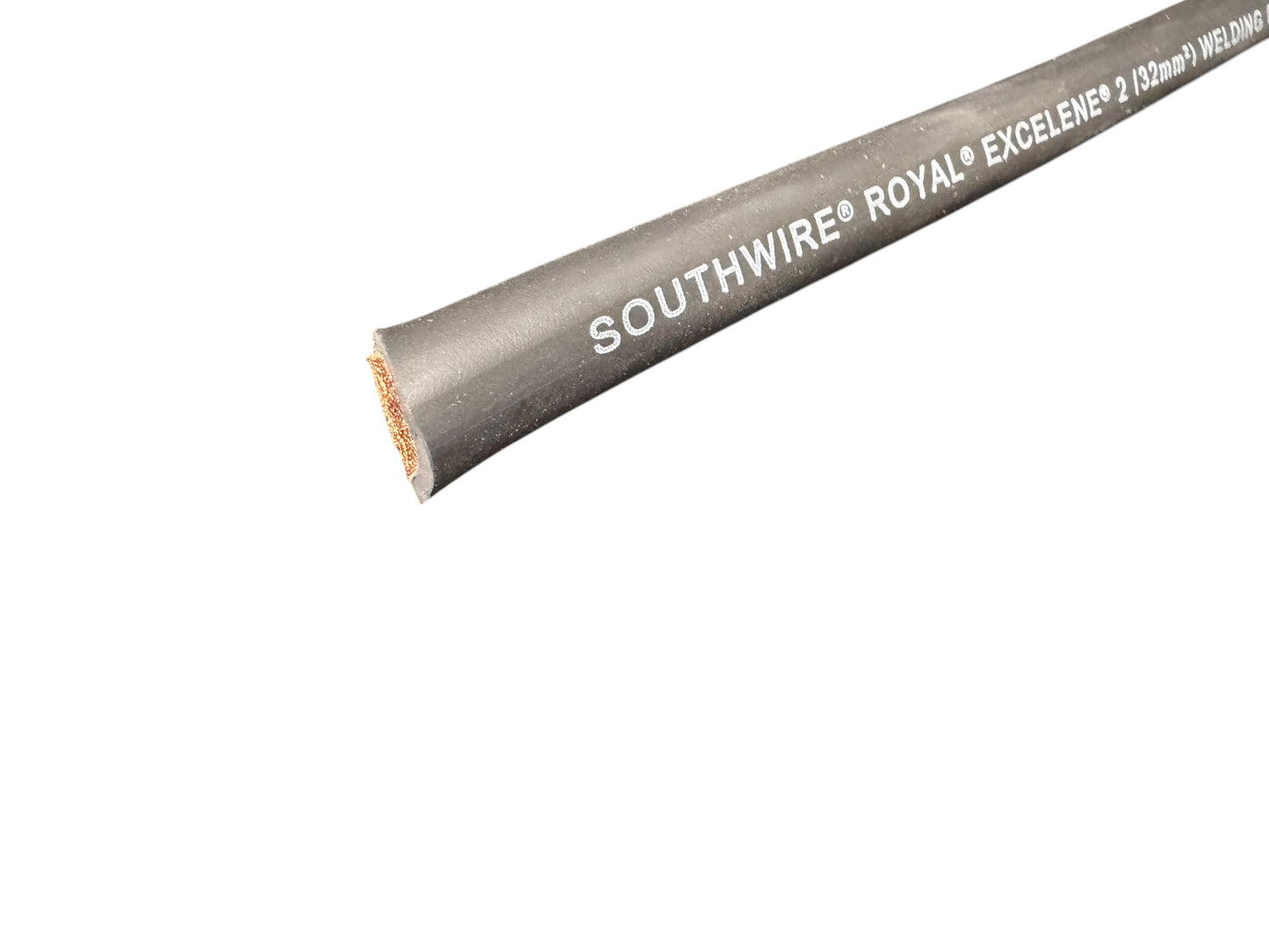

• 2 AWG   (651XBC)   OD: 0.420. -  190 A

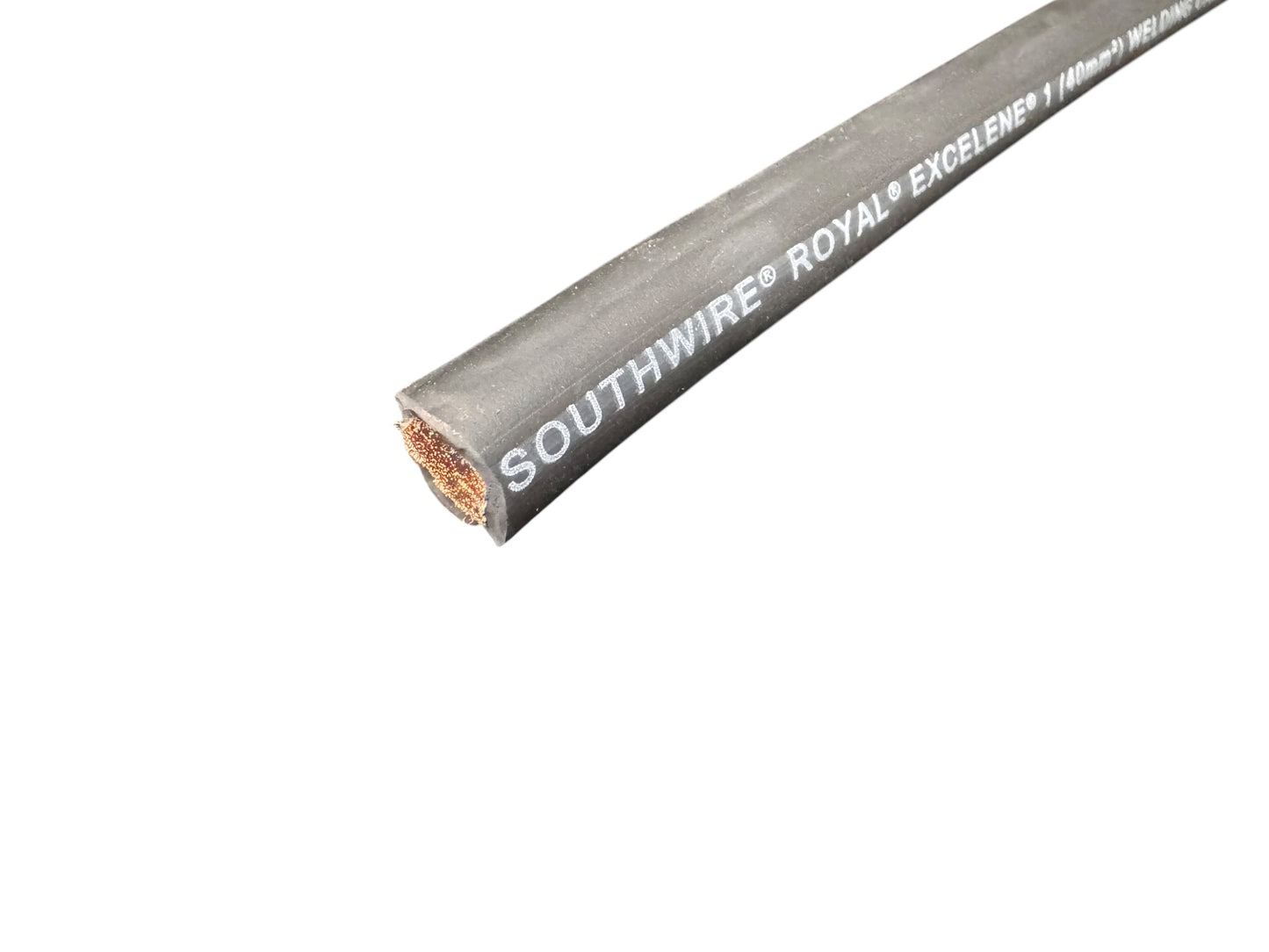

• 1 AWG   (798XBC)   OD: 0.498  -  220 A

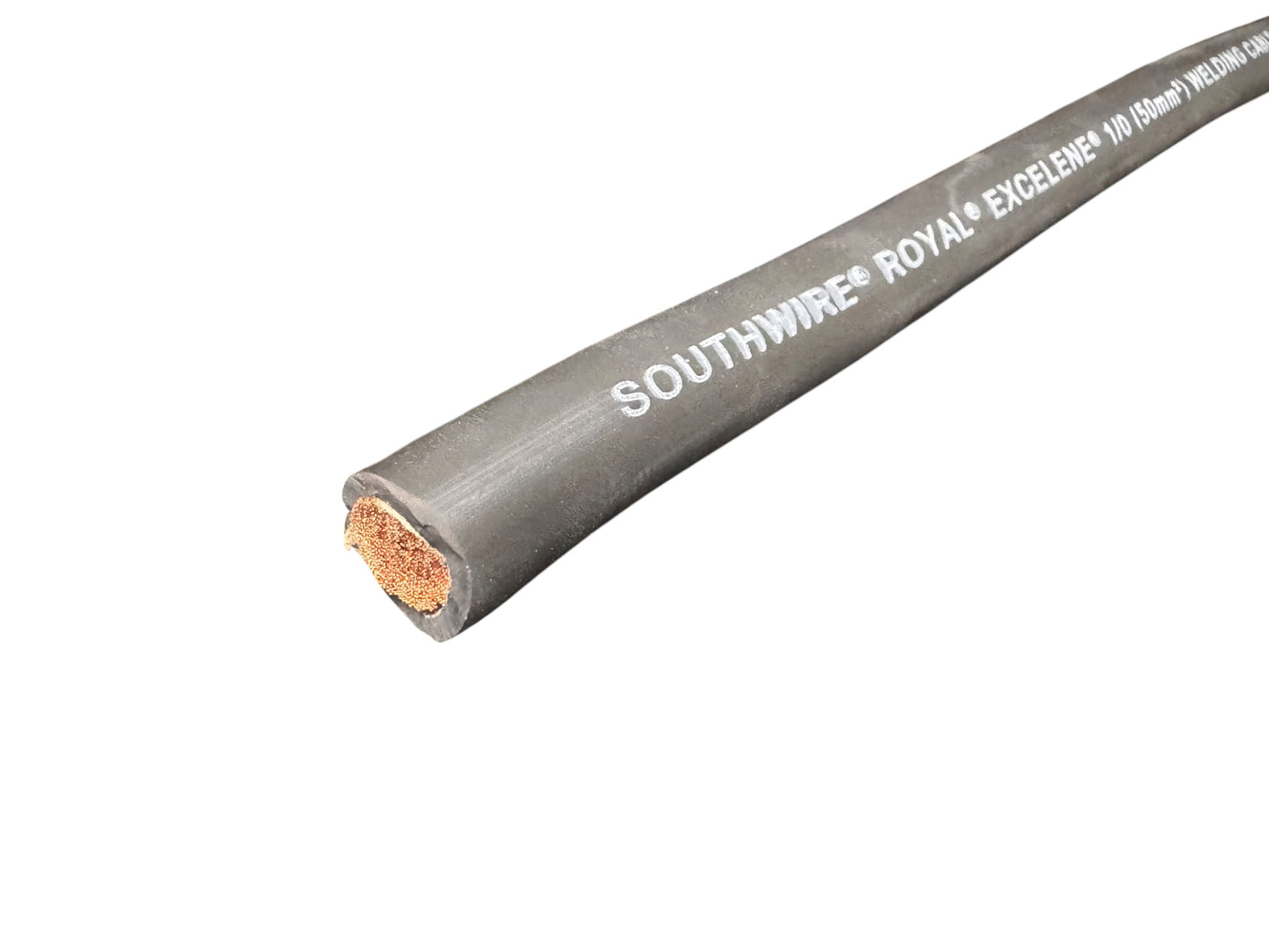

• 1/0.        (1026XBC) OD:0.525   -  260 A

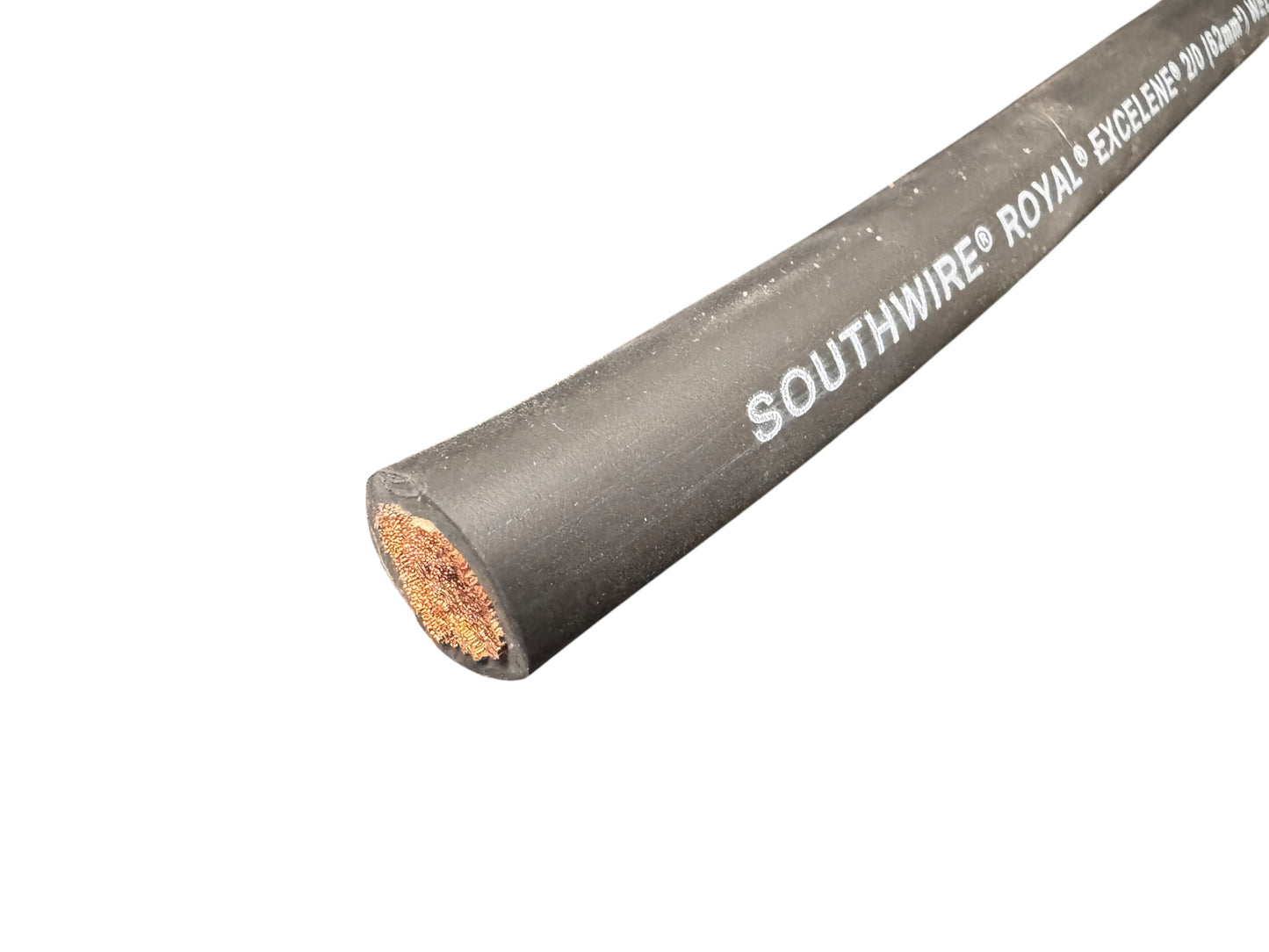

• 2/0.       (1254XBC) OD 0.570  -   300 A

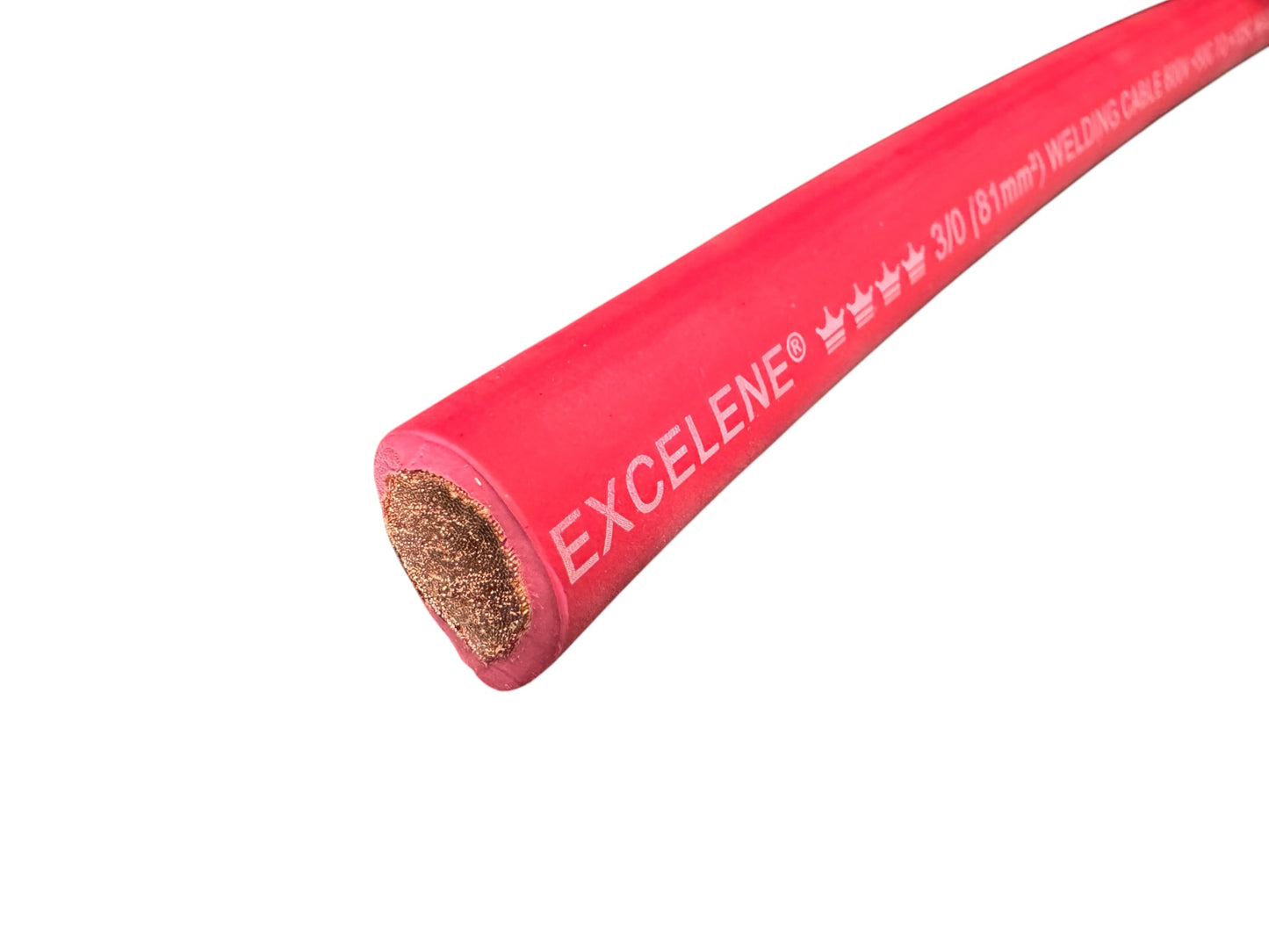

• 3/0.       (1615XBC) OD:0.617 -    350 A

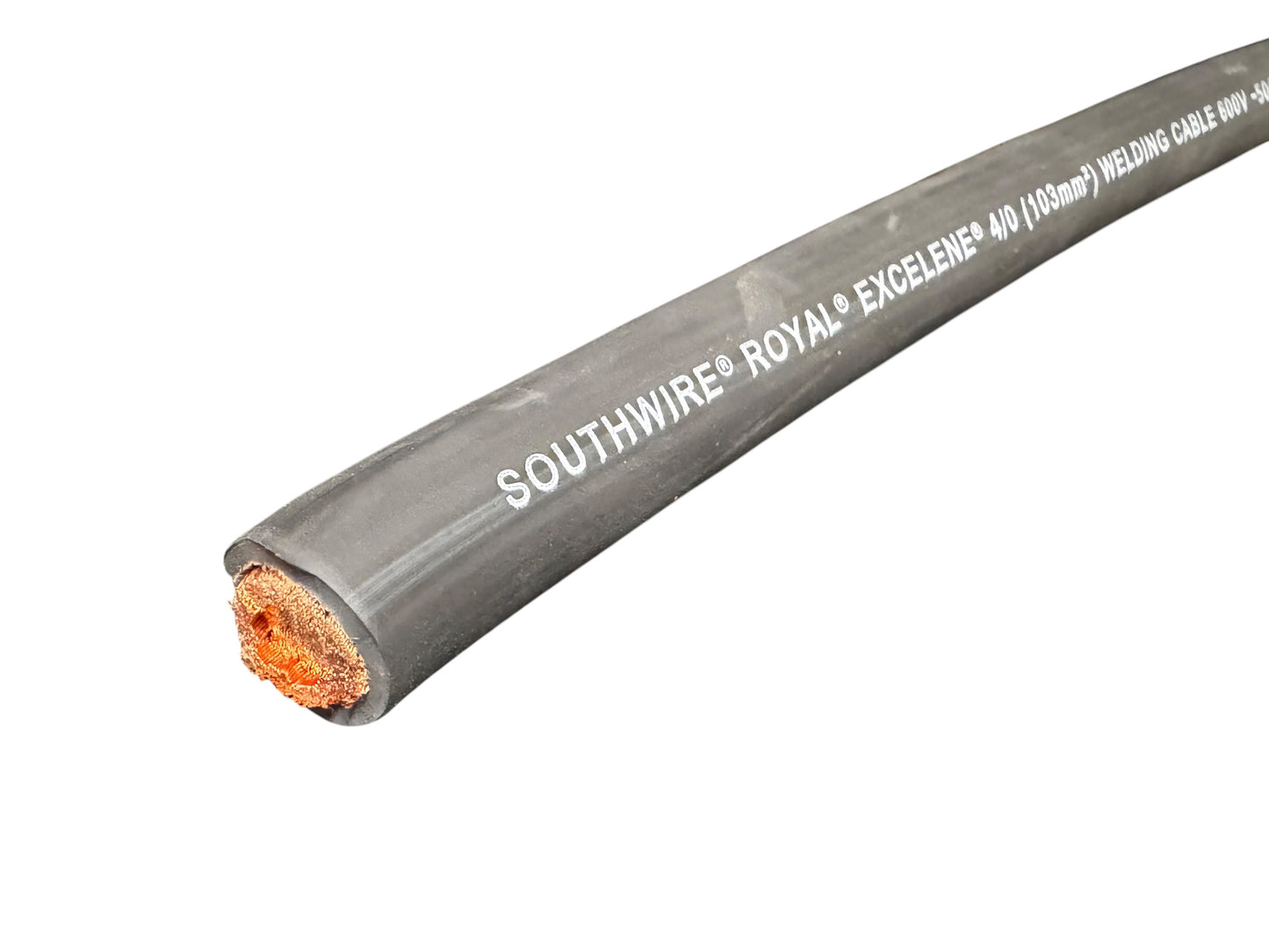

• 4/0.       (2052XBC) OD:0.695 -  405 A
