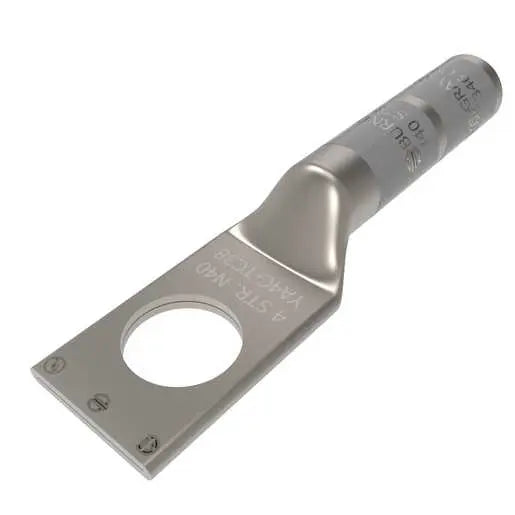

YA4CTC38, Cu Compression, 1-Hole, 3/8" Stud, Long Barrel, 4 AWG

YA4CTC38, Cu Compression, 1-Hole, 3/8" Stud, Long Barrel, 4 AWG

Regular price $5.89 USD
Regular price Sale price $5.89 USD
Sale Sold out

Condition: BRAND NEW

50 in stock

4 AWG CU, One Hole, 3/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV,GRAY Color Code, 8 or 346 Die Index.

  • Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
  • Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping and barrel color



General

Application

Wire Termination

Catalog Number

YA4CTC38

Color Code

Gray

Connector Type

LONG BARREL

Die Index

8

EU RoHS Indicator

Yes

Feature - Barrel Style

Chamfered

Feature - Barrel Type

Long

Finish Type

Tin-Plated

Material

COPPER

Physical Attribute - Number of Holes

1

Physical Attribute - Tongue Type

Straight

Plated

Y

Plating Type

Electro-Tin

Sub Brand

HYLUG

Type

Long Barrel, Electro-Tin Plated
