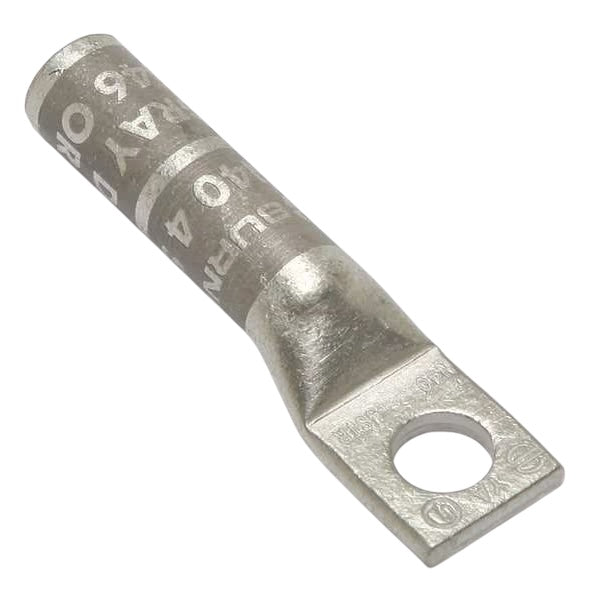

YA4C, Cu Compression, 1-Hole, 1/4" Stud, Long Barrel, 4 AWG
YA4C, Cu Compression, 1-Hole, 1/4" Stud, Long Barrel, 4 AWG
No reviews
Regular price
$3.99 USD
Regular price
Sale price
$3.99 USD
Unit price
/
per
Condition: BRAND NEW
50 in stock
Couldn't load pickup availability
4 AWG CU, One Hole, 1/4 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV,GRAY Color Code, 8 or 346 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
General
Application
Wire Termination
Catalog Number
YA4C
Color Code
Gray
Connector Type
LONG BARREL
Die Index
8
EU RoHS Indicator
Yes
Feature - Barrel Style
Chamfered
Feature - Barrel Type
Long
Finish Type
Tin-Plated
Material
COPPER
Physical Attribute - Number of Holes
1
Physical Attribute - Tongue Type
Standard
Plated
Y
Plating Type
Tin - Electro Plated
Sub Brand
HYLUG
Temperature Rating
194
Trade Name
HYLUG™
Type
Long Barrel, Tin Plated
Dimensions
| For Wire Size | 4 AWG |
| For Stud Size | 1/4 in |
| Barrel Size | Long |
| Tongue Width | 0.5 in |
| Cable Size | 4 AWG |
| Stud Size | 1/4 in |
| Width | 1/2" |
| Length | 1.87" |
| Barrel Length | Long |
| Overall Length | 1.87 in |
| Overall Width | 0.51 in |
| Length (Straight Wireway) | 1.87 in |
| Barrel Outside Diameter | 0.34 in |
| Tongue Length | 0.5 in |
| Hole Size | 0.27 in |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Tongue Thickness | 0.09 in |
| Strip Length | 1 3/16 in |
| Dimension - Stud Size inch | 44930 |
| Dimension - Strip Length inch | 42372 |
| Dimension - Length Overall inch | 1.87 in |
| Conductor Size | 4 AWG |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Outside Diameter inch | 0.34 in |
| Conductor - Copper Str Navy Size Range | 40 (19) Navy |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Conductor - Copper Str Size | 4 AWG |
