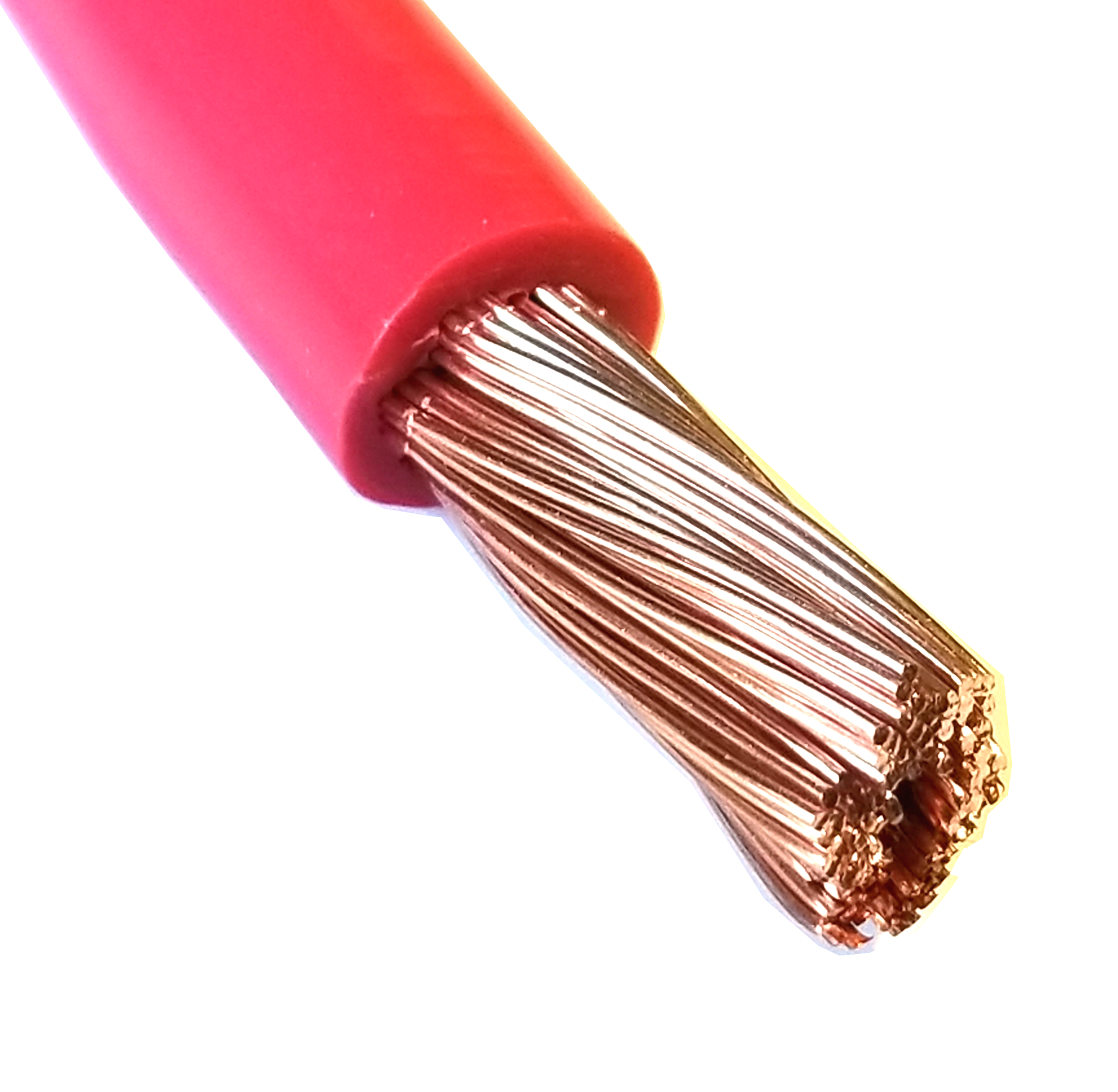

UL 1284 MTW Wire 600V

UL 1284 MTW Wire 600V

(BUY PER FOOT)

(NEC) recognizes that hook-up machine tool wire (MTW) is suitable for wiring machine tools, appliances, electrical control panels, and similar electrical equipment.UL 1284 is suitable for use in the wiring of machine tools, appliances, control cabinets, electronic circuits, transformers, battery charger cable, motor lead, power hook-up cable, and switchboards. This wire is approved for both the internal and external wiring of appliances. It has a temperature rating of 105°C.

• This hook-up wire is covered by several UL Appliance Wiring Material standards.
• Check before selecting them for use in UL-listed applications.
• Certain types also have other certifications, such as the BC-5W2 specification for marine craft and the NEC's THHW wire certification.
• MTW uses moisture- and heat-resistant polyvinyl chloride (PVC) insulation.

UL 1284 SPECS:

• UL-1284-250-2499B
  • AWG Size: 250
  • Cond. Material: Bare Copper
  • No. of Cond.: 1
  • Nom. O.D. (in): 0.8350
  • Insul. Material: Polyvinylchloride (PVC)
  • No. of Strands: 2421
  • Additional Ratings: BC-5W2/THHW; CT rated

• UL-1284-350-3458B
  • AWG Size: 350
  • Cond. Material: Bare Copper
  • No. of Cond.: 1
  • Nom. O.D. (in): 1.0450
  • Insul. Material: Polyvinylchloride (PVC)
  • No. of Strands: 3458
  • Additional Ratings: BC-5W2/THHW; CT
• UL-1284-500-5054B
  • AWG Size: 500
  • Cond. Material: Bare Copper
  • No. of Cond.: 1
  • Nom. O.D. (in): 1.1270
  • Insul. Material: Polyvinylchloride (PVC)
  • No. of Strands: 5054
  • Additional Ratings: BC-5W2/THHW; CT
• UL-1284-4/0-2109B
  • AWG Size: 4/0
  • Cond. Material: Bare Copper
  • No. of Cond.: 1
  • Nom. O.D. (in): 0.7300
  • Insul. Material: Polyvinylchloride (PVC)
  • No. of Strands: 2109
  • Additional Ratings: BC-5W2/THHW; CT rated;rated and printed SAE J1127 Type SGT
• UL-1284-3/0-1665B
  • AWG Size: 3/0
  • Cond. Material: Bare Copper
  • No. of Cond.: 1
  • Nom. O.D. (in): 0.6700
  • Insul. Material: Polyvinylchloride (PVC)
  • No. of Strands: 1665
  • Additional Ratings: BC-5W2/THHW; CT
• UL-1284-2/0-1330B
  • AWG Size: 2/0
  • Cond. Material: Bare Copper
  • No. of Cond.: 1
  • Nom. O.D. (in): 0.6200
  • Insul. Material: Polyvinylchloride (PVC)
  • No. of Strands: 1330
  • Additional Ratings: BC-5W2/THHW; CT
• UL-1284-1/0-1045B
  • AWG Size: 1/0
  • Cond. Material: Bare Copper
  • No. of Cond.: 1
  • Nom. O.D. (in): 0.5650
  • Insul. Material: Polyvinylchloride (PVC)
  • No. of Strands: 1045
  • Additional Ratings: BC-5W2/THHW; CT
• UL-1284-1-836B
  • AWG Size: 1
  • Cond. Material: Bare Copper
  • No. of Cond.: 1
  • Nom. O.D. (in): 0.5250
  • Insul. Material: Polyvinylchloride (PVC)
  • No. of Strands: 836
  • Additional Ratings: BC-5W2/THHW;CT rated; rated and printed SAEJ1127 Type SGT

• UL 1284 MTW/TEW Approvals and Ratings:

  • UL Rated MTW Wire
  • CSA Rated TEW Cable
  • 6 AWG - 500 MCM also meets BC-5W2
  • UL 10269: 1000 Volts, THHW
  • 1 AWG - 500 MCM CT Rated
  • 6 AWG - 4/0 is rated/printed SAE J1127, Type SGT
  • Flammability: Pass VW-1 Flame Test

• Construction:

  • Conductor: Bare
  • Insulation: Polyvinylchoride (PVC)

  Temperature Ratings:

  • MTW: 90°C
  • TEW: 105°C
  • UL & CSA: 105°C
