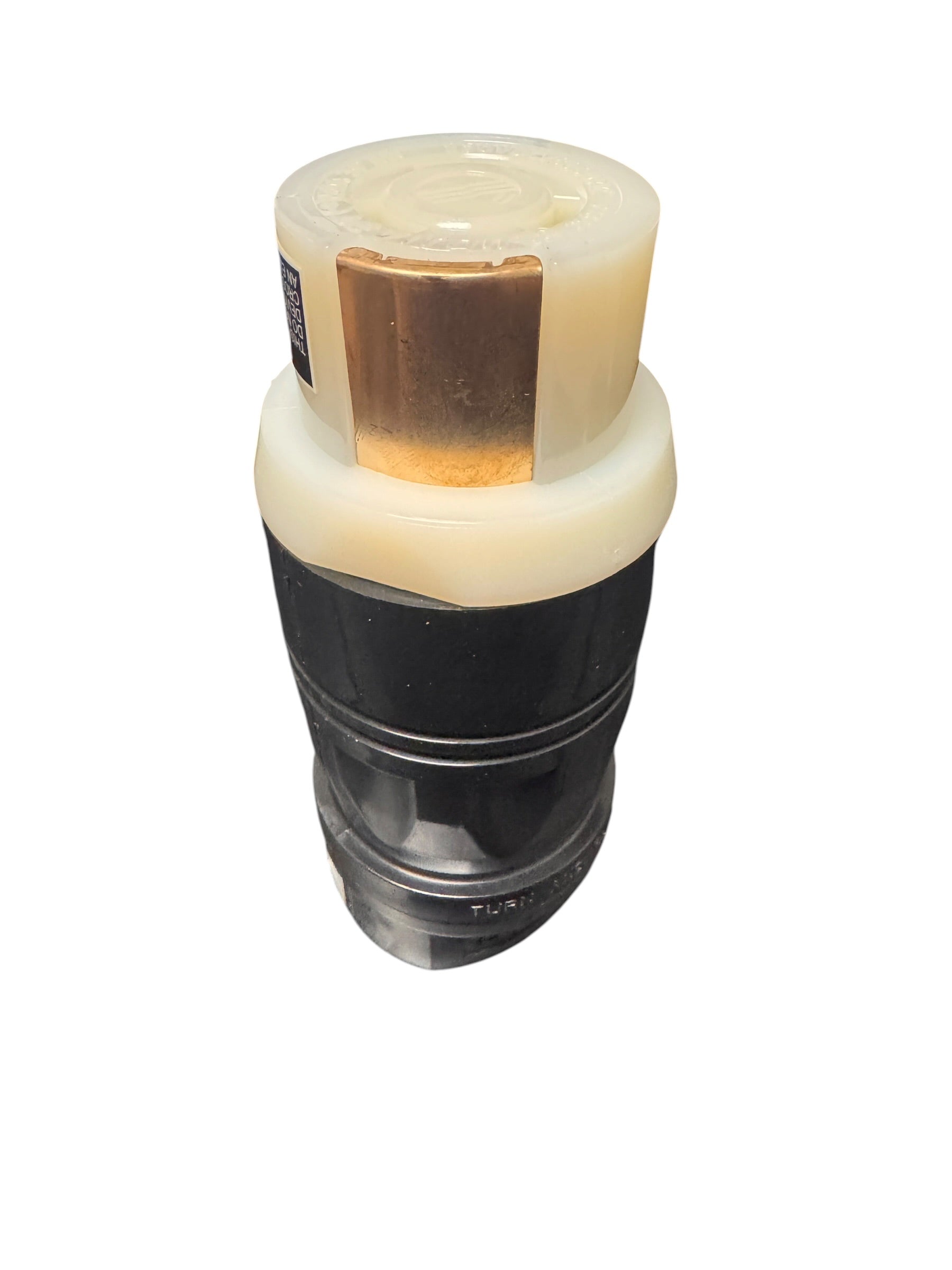

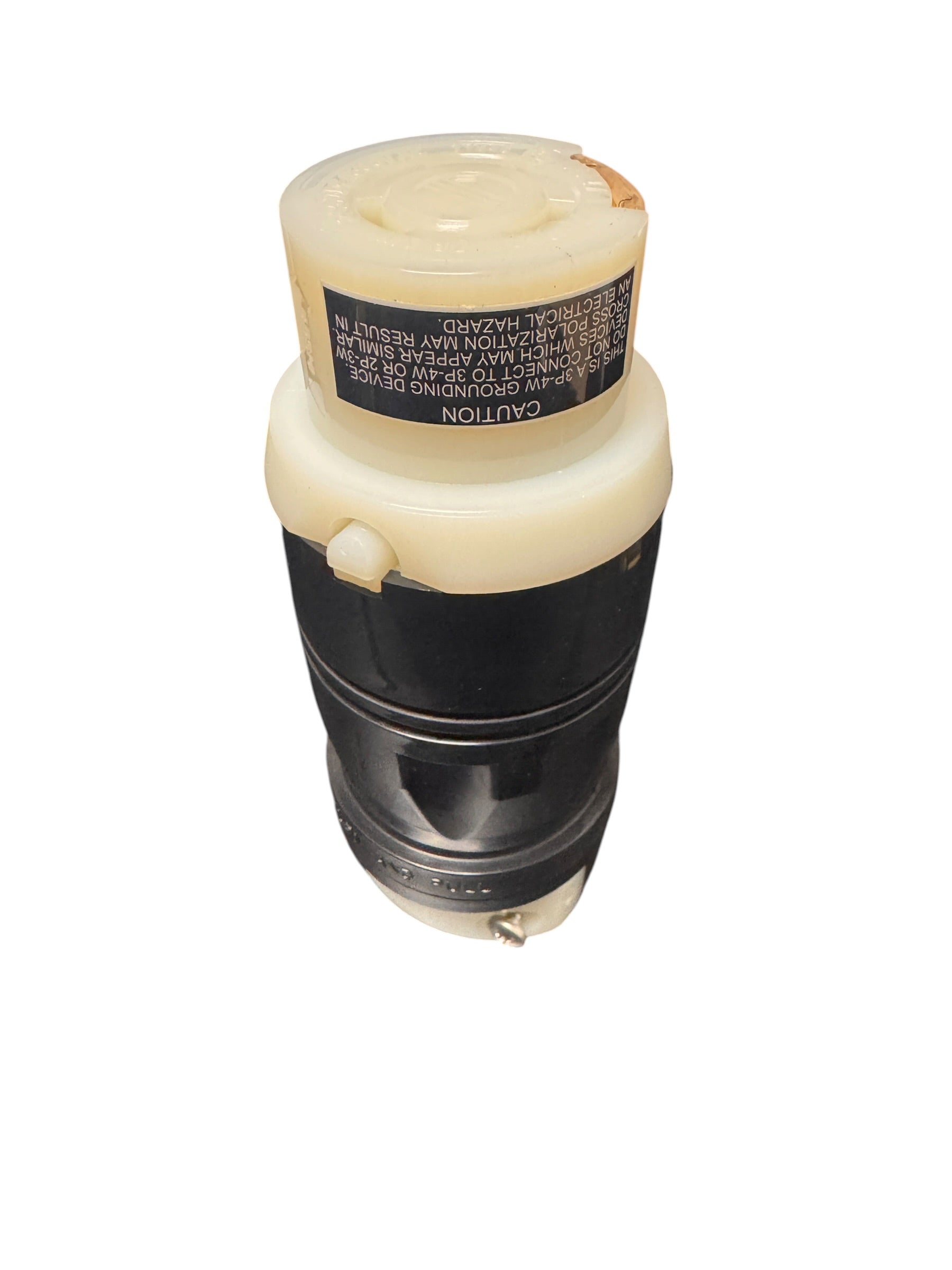

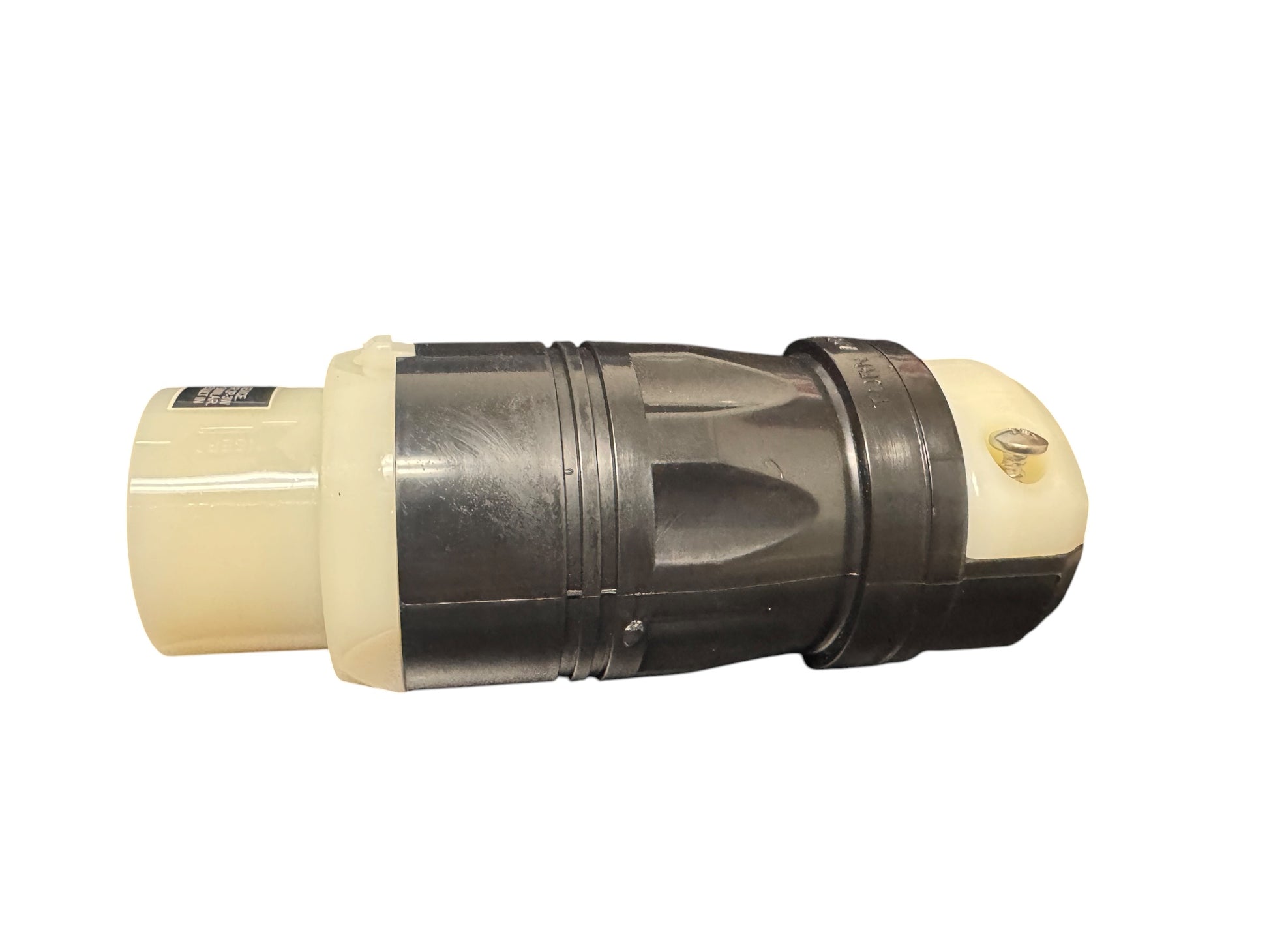

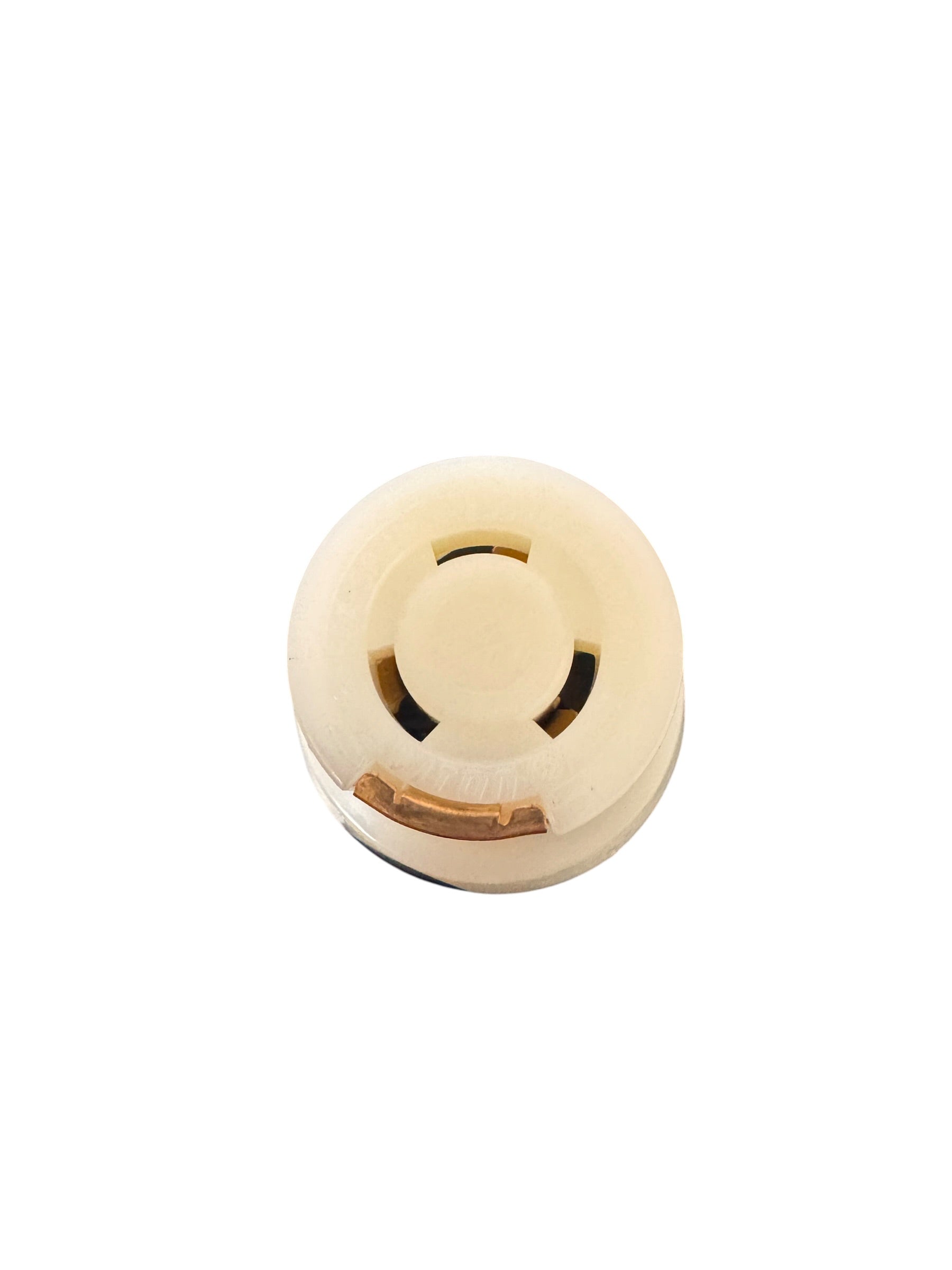

Leviton 7764C 50A Power Lock Connector

Name: Leviton 7764C 50A Power Lock Connector
Brand: WIREANDSUPPLY.COM
Price: 95.00 USD
Availability: InStock

$95.00 USD

Sale Sold out

Shipping calculated at checkout.

Condition: BRAND NEW

25 in stock

LEVITON 7764C : 50A POWER LOCK CONNECTOR

Technical Description:
Polarized Type; Nylon Material; Black, White Color; Non-NEMA Locking Configuration; 4 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 600 VAC, 250 VDC Voltage Rating; 50 Ampere Current Rating; Grounding; 3 Pole(S)

Number of Poles:	3
Number of Wires:	4
Ground Type:	Grounding
Material:	Nylon
Color:	Black, White
Cord Size:	0.68 to 1.125 Inch
Approval:	UL 498, CSA C22.2, NOM 057
Additional Information:	Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 75 Deg C; Application Industrial
Catalog Number:	7764C
Brand Name:	Black & White
Model:	7764
Type:	Polarized
Constructional Feature:	Impact Resistant, Abrasion Resistant, Chemical Resistant
Configuration:	Non-NEMA Locking
Voltage Rating:	600 VAC, 250 VDC
Current Rating:	50 Ampere
CATALOG DESCRIPTION:	50 AMP, 250 VOLT DC/600 VOLT AC, NEMA NON-NEMA, 3P, 4W, LOCKING CONNECTOR, INDUSTRIAL GRADE, GROUNDING - BLACK-WHITE
