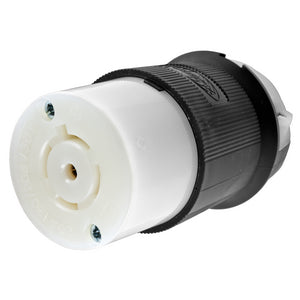

HUBBELLS HBL2513 Female Connector Body, 20A 3-Phase Wye 120/208V AC, L21-20R

HUBBELLS HBL2513 Female Connector Body, 20A 3-Phase Wye 120/208V AC, L21-20R

• 20 AMP
• NEMA L21-20R
• 3 PHASE 120/208V
• 4 POLE 5 WIRE
• Performance
• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - 2,000V minimum
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

ITS COUNTER PART IS HBL2511
