Hubbell Series 15 Panel Mount Male Receptacle 5 pc set, 150 AMP 600v

Hubbell Series 15 Panel Mount Male Receptacle 5 pc set, 150 AMP 600v

Regular price $202.99 USD
Regular price Sale price $202.99 USD
Sale Sold out
Shipping calculated at checkout.

Condition: BRAND NEW

Quantity

Low stock: 10 left

This is a Complete Brand New set of 5 (series 15, 150Amp Hubbell Male Receptacles)

Each Rececptacle is New in the Oem Packaging.
includes:
  • 1 receptacle
  • 1 nylon retaining screw
  • 1 brass strain relief
  • 2 large screws
  • 2 small screws
  • 1 copper wrap.
  • 1 felt gasket

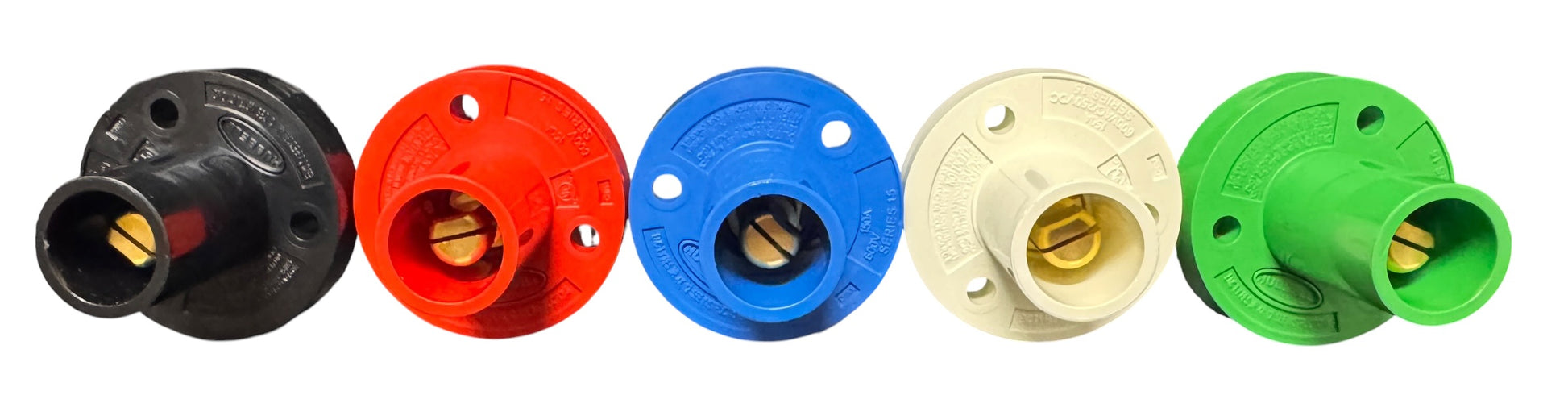

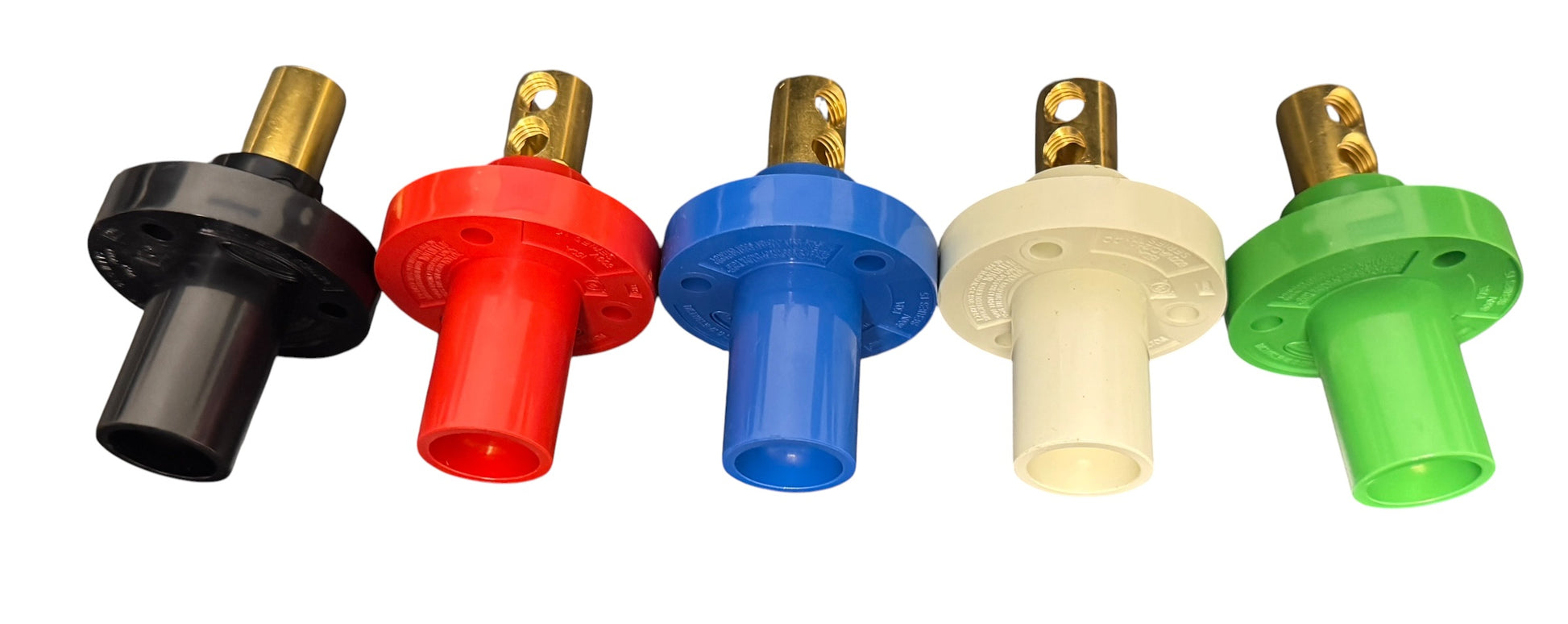

Colors Included:
HBL15MRBK - BLACK
HBL15MRR - RED
HBL15MRW- WHITE
HBL15MRBL- BLUE
HBL15MRGN - GREEN


Applications: entertainment, theme parks, carnival equipment, concerts, movie making and other applications requiring 150amps of power.

(CAUTION)
(WILL ONLY MATE WITH SERIES 15 CAMLOCKS - HUBBELL,MARINCO,LEVITON AND SO ON AS LONG AS ITS A SERIES 15)
(WILL NOT MATE WITH SERIES 16 CAMLOCKS)

Specifications:
Base Compound: Thermoplastic Elastomer (TPE)
Contact Material: Brass
Retaining Screw Material: Nylon
UL and cUL Listed UL Enclosure Types 3R, 4X, 12 National Electric Code (NEC), ANSI/NFPA 70

Fits cable Range: #8 - #2 awg

Electrical Amperage Rating: 150A
Maximum Voltage Rating 600V AC/DC Maximum

Features: Insulgrip Style Housing for Superior Gripping Non-Conductive Retaining Screw locks contacts in place Large Raised Alignment Arrow aids in the mating of devices
