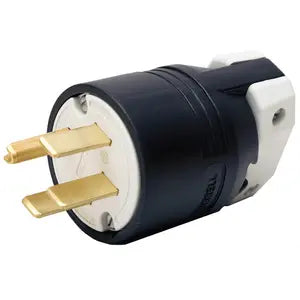

HUBBELL HBL9451C Straight Blade Devices, Male Plug, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50P.

• Catalog Number HBL9451C
• Color Black
• Cord Range 0.625"-1.310"
• Horsepower - Maximum 3
• Material Nylon
• Number Of Poles 3-Pole
• OEM Brand Name Hubbell Wiring Device-Kellems
• Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
• Performance
• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 HB
• Environmental - IP Suitability - IP20
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Series Extra Heavy Duty
• Specifications
• Blade Holder - Reinforced Thermoplastic Polyester
• Blades - Brass
• Box Terminals - Copper Alloy
• Housing - Supertough Nylon
• Mounting Screw - Stainless steel
• Style Grounding
• Type Plug
• Dimensions 4.13 in x 2.88 in x 2.88 in
• Height 2.88 in
• Length 4.13 in
• Weight 0.85 lb
• Width 2.88 in
