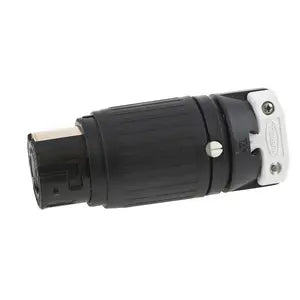

HUBBELL HBL7764C Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA
HUBBELL HBL7764C Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA
Condition: BRAND NEW
Low stock: 10 left
Couldn't load pickup availability
- General
-
Application: Heavy Duty Industrial
-
Catalog Number: HBL7764C
-
Color: Black, White
-
Cord Range
.830"-1.250"(21.08-31.75)
-
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
-
EU RoHS Indicator
No
-
Insulation
Insulated Body
-
Item Type
50A Insulgrip® Connector
-
Material
Nylon
-
Material - Mounting Hardware
Cord Mounted
-
Number Of Poles
3-Pole
-
OEM Brand Name
Hubbell Wiring Device-Kellems
-
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
-
Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
-
Specifications
- Contacts - Brass
- Cord Grip - Polyester
- Housing - Nylon
- Terminal Retainer - Thermoplastic polyester
- Terminal Screws - Stainless Steel
-
Type
Connector Body
-
UPC
783585237848
Dimensions
Dimensions
2.56 in x 2.56 in x 6.50 in
Display Size
Standard
Height
6.5 in
Length
2.56 in
Weight
1.05 lb
Width
2.56 in
Electrical Ratings
Amperage Rating
50 A
Connectivity
Pressure Terminal Screws
Current / Amperage Rating
50 A
Current Rating
50 A
Dielectric Strength
Withstands 2,000V minimum
Voltage Rating
250 VDC/600 VAC
Voltage Rating Description
250 VDC/600 VAC
Conductor Related
Cable Range
0.830 - 1.250 in
Number Of Wires
4-Wire
Wire Size
#8 AWG to #4 AWG
Certifications And Compliance
Industry Standard(s)
- Certified to CSA C22.2 No.42
- Listed to UL 498
