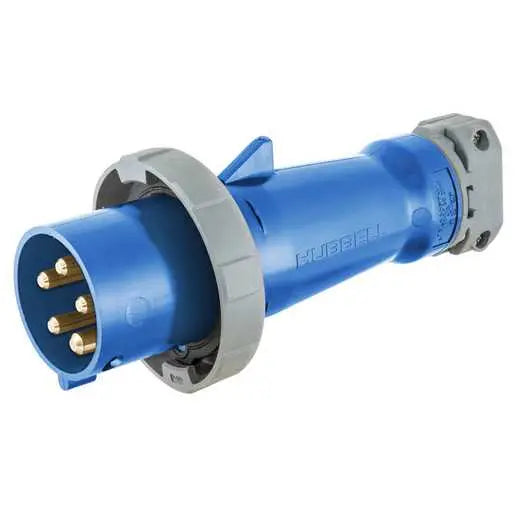

HUBBELL HBL5100P9W IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Watertight

HUBBELL HBL5100P9W IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Watertight

$625.99 USD
$625.99 USD
Sale Sold out

Condition: BRAND NEW

Low stock: 2 left

IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Watertight



Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing

Watertight



General

Application: High Ampacity Connections

Catalog Number: HBL5100P9W

Color: Blue

EU RoHS Indicator: Yes

Item Type

Material: Composite

Material - Mounting Hardware: Cord Mounted

Number Of Poles: 4-Pole

Specifications



  • Contact Carrier - High-Impact Thermoset
  • Housing - Zytel® ST801 Nylon
  • Locking Ring - Reinforced Thermoplastic Polyester
  • Retainer - High-Impact Thermoset
  • Terminal Screws - Stainless Steel



Style: Standard Service

Type: Watertight Plug

Electrical Ratings

Amperage Rating: 100 A

Connectivity: Pressure Terminal Screws

Phase: Three Phase

Voltage Rating: 3 Phase Y 120/208 VAC

Conductor Related

Number Of Wires: 5-Wire

Wire Size: #3 AWG to #1/0 AWG

Certifications And Compliance

EU RoHS Indicator: Yes

Industry Standard(s)

  • CSA Standard C22.2 No. 182.1
  • UL Classified to IEC60309-1
  • UL Listed, File E146032



Nema Rating: Non-NEMA

Configuration

Cord Type: All Portable

Number Of Poles: 4-Pole
