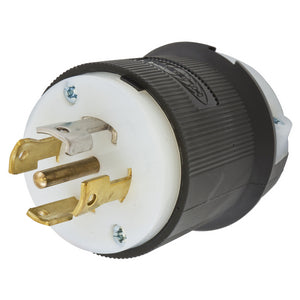

HUBBELL HBL2811 Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, Black and White

HUBBELL HBL2811 Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, Black and White

Regular price $39.99 USD
Regular price Sale price $39.99 USD
Sale Sold out

Condition: BRAND NEW

25 in stock

HUBBELL HBL2811 Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, Black and White



  • Catalog Number - HBL2811
  • Color  - Black, White
  • Cord Range - 0.350"-1.150" (9-29)
  • Environmental Conditions - Indoor Dry Unless Protected By Additional Means
  • EU RoHS Indicator - Yes
  • Item Type - 30A Grounding Insulgrip® Plug
  • Material - Nylon
  • Material - Mounting Hardware - Cord Mounted
  • Number Of Poles - 4-Pole
  • Operating Temperature - Maximum continuous 75°C and minimum -40°C without Impact
  • Performance - Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Electrical Ratings - Amperage Rating 30 A
  • Connectivity - Pressure Terminal Screws
  • Current / Amperage Rating 30 A
  • Current Rating 30 A
  • Dielectric Strength Withstands 2,000V minimum
  • Phase - Three Phase
  • Voltage Rating - 3 Phase WYE 120/208 VAC
  • Conductor Related - Cable Range 0.350 - 1.150 in
  • Cord Type - All Listed Portables
  • Number Of Wires 5-Wire
  • Wire Size #16 AWG to #8 AWG
  • Certifications And Compliance Industry Standard(s), Certified to CSA C22.2 No.42, Fed.Spec. W-C-596 ,Listed to UL 498
  • Nema Rating - L21-30P

its counter part is HBL2813
