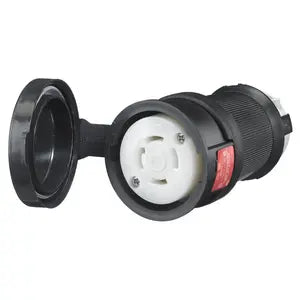

HUBBELL HBL2733SW Locking Devices, Twist-Lock, Watertight Safety Shroud, Female Connector Body,, 30A 3-Phase Delta 480V AC, L16-30R

• General Application
• Catalog Number HBL2733SW

• Color Black, White

  Cord Range 0.350"-1.150" (9-29)

• Environmental Conditions

  Watertight

• EU RoHS Indicator

  Yes

• Insulation

  Insulated Body

• Item Type

  30A Watertight Safety-Shroud Connector

• Material

  Composite

• Material - Mounting Hardware

  Cord Mounted

• Number Of Poles

  3-Pole

• OEM Brand Name

  Hubbell Wiring Device-Kellems

• Operating Temperature

  Maximum continuous 75°C and minimum -40°C without Impact

• Performance

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

• Specifications

  • Assembly Screws - Stainless Steel
  • Closure Plug - Santoprene
  • Contacts - Brass
  • Housing / Cord Clamp - PBT
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
  • Watertight Gland - Neoprene

• Type

  Connector Body

Dimensions

Electrical Ratings

Conductor Related

Certifications And Compliance
