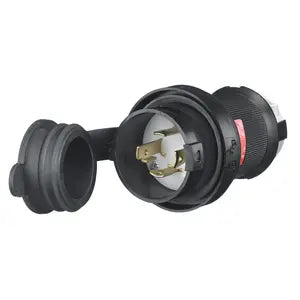

HUBBELL HBL2731SW Locking Devices, Twist-Lock, Watertight Safety Shroud, Male Plug, 30A 3-Phase Delta 480V AC, L16-30P
HUBBELL HBL2731SW Locking Devices, Twist-Lock, Watertight Safety Shroud, Male Plug, 30A 3-Phase Delta 480V AC, L16-30P
No reviews
Regular price
$139.99 USD
Regular price
Sale price
$139.99 USD
Unit price
/
per
Condition: BRAND NEW
Low stock: 10 left
Couldn't load pickup availability
Locking Devices, Twist-Lock, Watertight Safety-Shroud, Male Plug, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-30P, Screw Terminal, Black PBT housing, White PBT clamps.
- Catalog Number HBL2731SW
- Cord Range 0.350"-1.150" (9-29)
- Environmental Conditions Watertight
- EU RoHS Indicator Yes
- Horsepower - Maximum 10
- Item Type 30A Watertight Safety-Shroud® Plug
- Material Composite
- Material - Mounting Hardware Cord Mounted
- Number Of Poles 3-Pole
- Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
- Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
- Assembly Screws - Stainless Steel
- Blades - Brass
- Closure Plug - Santoprene
- Housing / Cord Clamp - PBT
- Terminal Clamp - Cold rolled steel – nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
- Watertight Gland - Neoprene
Type
Plugs
Dimensions
Dimensions
2.94 in x 2.94 in x 4.40 in
Display Size
Standard Sized
Height
4.4 in
Length
2.94 in
Weight
0.7 lb
Width
2.94 in
Electrical Ratings
Amperage Rating
30 A
Connectivity
Pressure Terminal Screws
Current / Amperage Rating
30 A
Current Rating
30 A
Dielectric Strength
Withstands 2,000V minimum
Phase
Three Phase
Voltage Rating
480 V
Voltage Rating Description
3 Phase 480 VAC
Conductor Related
Cable Range
0.350 - 1.150 in
Cord Type
All Listed Portables
Number Of Wires
4-Wire
Wire Size
#16 AWG to #8 AWG
Certifications And Compliance
Industry Standard(s)
UL Listed, CSA Certified To Type 4, 4X And Type 12
Nema Rating
L16-30P
Standards - RoHS Compliance Status
CM
