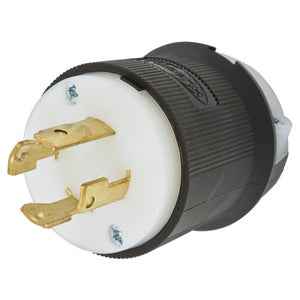

HUBBELL HBL2731 Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Black and White

Name: HUBBELL HBL2731 Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Black and White
Brand: WIREANDSUPPLY.COM
Price: 34.99 USD
Availability: InStock

$34.99 USD

Sale Sold out

Condition: BRAND NEW

Quantity

30 in stock

HUBBELL HBL2731 Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Black and White

Catalog Number - HBL2731
Color - Black, White
Cord Range - 0.350"-1.150" (9-29)
Environmental Conditions - Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator - Yes
Horsepower - Maximum 10
Item Type - 30A Grounding Insulgrip® Plug
Material - Nylon
Material - Mounting Hardware - Cord Mounted
Number Of Poles - 3-Pole
Operating Temperature - Maximum continuous 75°C and minimum -40°C without Impact
Performance - Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
Environmental - Moisture Resistance - IP20 Suitability
Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Electrical Ratings
Amperage Rating - 30 A
Connectivity - Pressure Terminal Screws
Current / Amperage Rating 30 A
Dielectric Strength - Withstands 2,000V minimum
Phase - Three Phase
Voltage Rating - 3 Phase 480 VAC
Conductor Related
Cable Range - 0.350 - 1.150 in
Cord Type - All Listed Portables
Number Of Wires - 4-Wire
Wire Size - #16 AWG to #8 AWG
Certifications And Compliance
Industry Standard(s) - Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Nema Rating - L16-30P
Standards - RoHS Compliance Status -CM
its counter part is HBL2733
