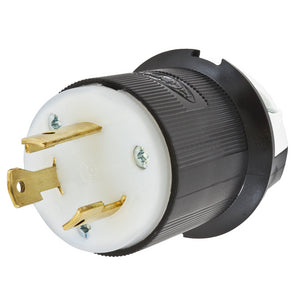

HUBBELL HBL2621 Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White
HUBBELL HBL2621 Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White
Regular price
$32.99 USD
Regular price
Sale price
$32.99 USD
Unit price
/
per
Condition: BRAND NEW
25 in stock
Couldn't load pickup availability
HUBBELL HBL2621 Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White
- Catalog Number - HBL2621
- Color - Black, White
- Cord Range - 0.360"-0.930" (9-24)
- Environmental Conditions - Indoor Dry Unless Protected By Additional Means
- EU RoHS Indicator - Yes
- Horsepower - Maximum 2
- Item Type - 30A Grounding Insulgrip® Plug
- Material - Nylon
- Material - Mounting Hardware - Cord Mounted
- Number Of Poles - 2-Pole
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance - Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- AMPS: 30
- VOLTS:250
- SINGLE PHASE
-
Industry Standard(s) - Certified to CSA C22.2 No.42 ,Fed.Spec. W-C-596, Listed to UL 498
ITS COUNTER PART IS HBL2623
Nema Rating
L6-30P
