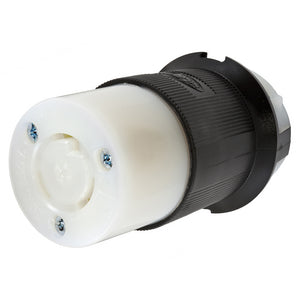

HUBBELL HBL2323 Female Connector Body, 20A 250V, 2-Pole 3-Wire Grounding, L6-20R, Screw Terminal, Black and White

HUBBELL HBL2323 Female Connector Body, 20A 250V, 2-Pole 3-Wire Grounding, L6-20R, Screw Terminal, Black and White

• Catalog Number: HBL2323
• Color: Black, White
• Cord Range: 0.360"-0.930" (9-24)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes

• Insulated Body
• Item Type: 20A  Connector
• Material: Composite: Material - Mounting Hardware Cord Mounted
• Number Of Poles: 2-Pole
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance
• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
• Environmental - Moisture Resistance - IP20 Suitability
  Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  Temperature Rating
• Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

ITS COUNTER PART IS HBL2321
