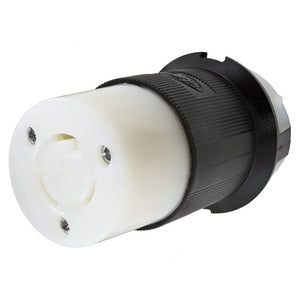

HUBBELL HBL2313 Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black and White
HUBBELL HBL2313 Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black and White
Condition: BRAND NEW
25 in stock
Couldn't load pickup availability
HUBBELL HBL2313 Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black and White
Catalog Number
Color: Black, White
Cord Range: 0.360"-0.930" (9-24)
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator: Yes
Horsepower - Maximum 1
Insulation: Insulated Body
Item Type; 20A Insulgrip Connector
Material; Nylon
Material - Mounting Hardware
Cord Mounted
Number Of Poles; 2-Pole
Operating Temperature; Maximum continuous 75°C and minimum -40°C without Impact
Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating
Electrical Ratings
Amperage Rating; 20 A
Connectivity; Pressure Terminal Screws
Current / Amperage Rating; 20 A
Current Rating; 20 A
Dielectric Strength; Withstands 2,000V minimum
Voltage Rating; 125 VAC
Conductor Related
Cable Range; 0.360 - 0.930 in
Number Of Wires; 3-Wire
Wire Size; #16 AWG to #8 AWG
Certifications And Compliance
Industry Standard(s)
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
Nema Rating
Standards - RoHS Compliance Status
CM
ITS COUNTER PART IS HBL2311
