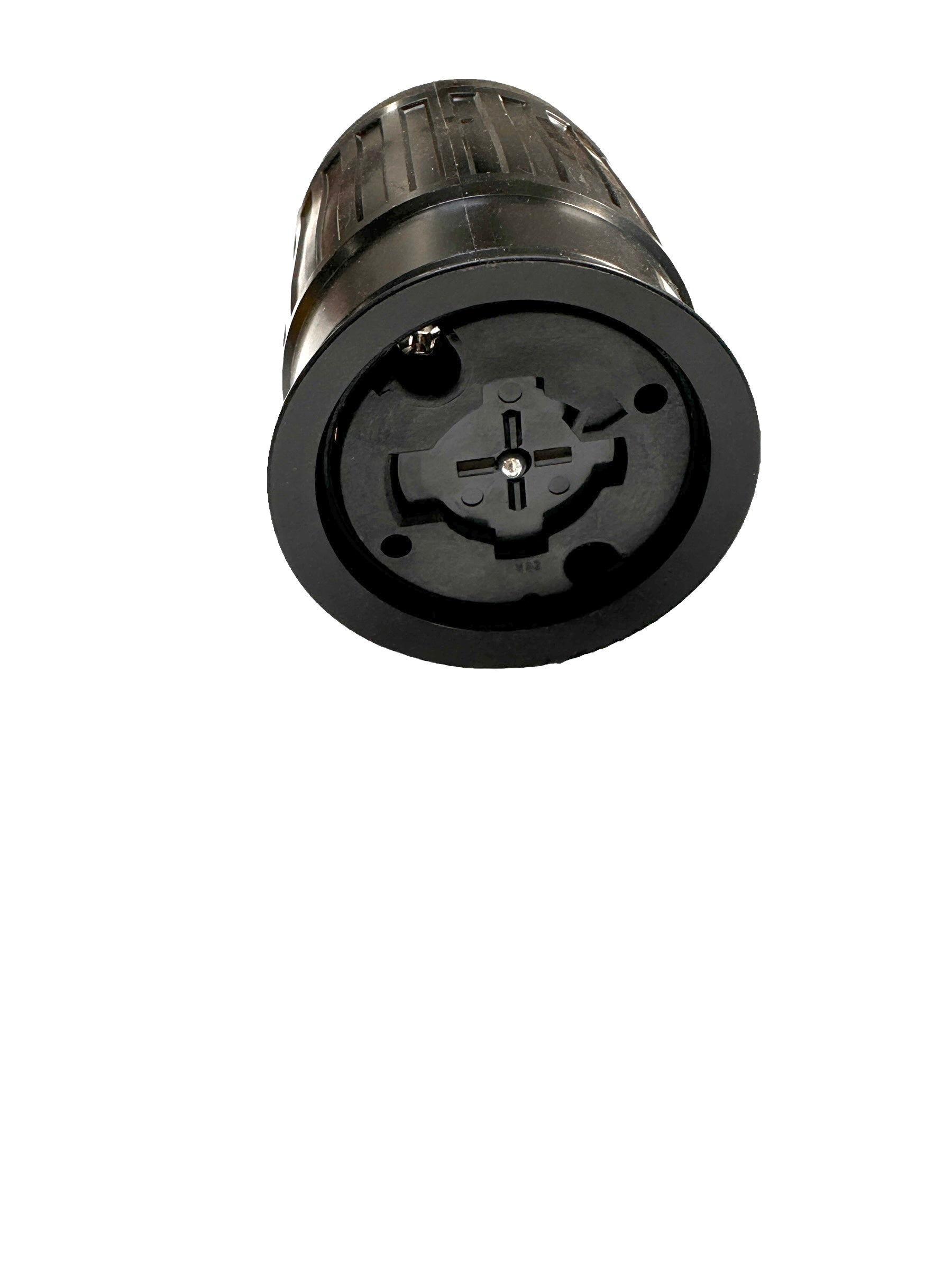

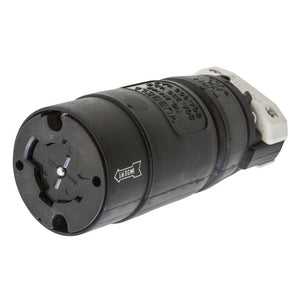

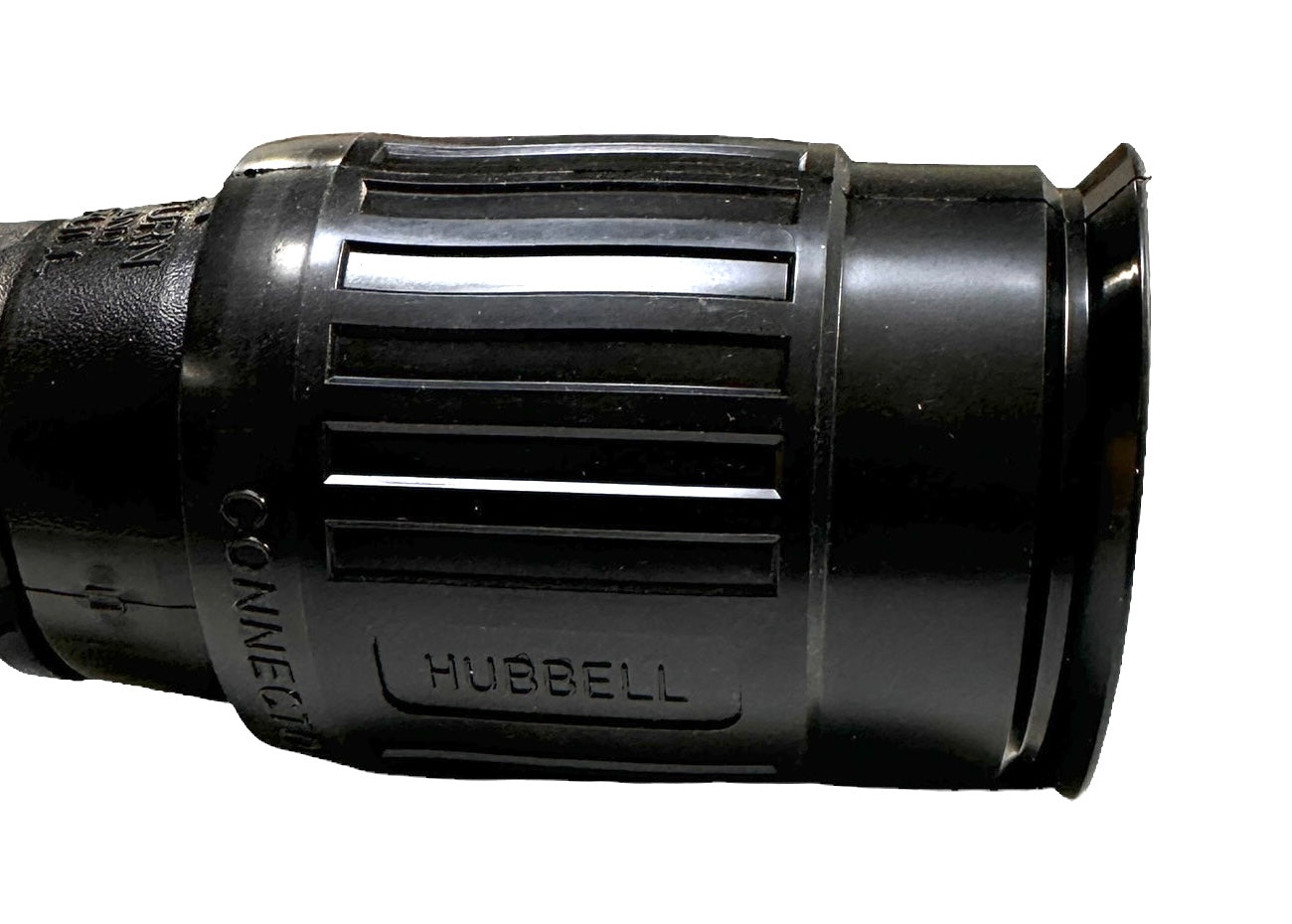

HUBBELL HBL21414B Female Connector Body, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal and White.

• Catalog Number - HBL21414B
• Color -Black, White
• Cord Range - 0.70"-1.20" (17.78-30.5)
• Environmental Conditions - Indoor Dry Unless Protected By Additional Means
• Insulation - Insulated Body
• Item Type - 30A Grounding Hubbellock® Female Connector
• Material - Nylon
• Material - Mounting Hardware - Cord Mounted
• Number Of Poles - 3-Pole
• Operating Temperature - Maximum continuous 75°C and minimum -40°C without Impact
• Performance
• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage Withstand - 2,000V minimum
• Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors
• Environmental - Moisture Resistance - IP30 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
