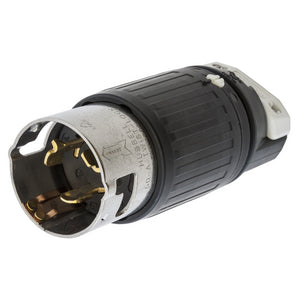

HUBBELL CS8265C Industrial, Male Plug, 50A Single Phase 250V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
HUBBELL CS8265C Industrial, Male Plug, 50A Single Phase 250V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
No reviews
Regular price
$74.99 USD
Regular price
Sale price
$74.99 USD
Unit price
/
per
Condition: BRAND NEW
Out of stock
Couldn't load pickup availability
Industrial, Male Plug, 50A Single Phase 250V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
- 50 amp
- 250v
- 2p 3w
- counter part is CS8264C
Catalog Number
- CS8265C
- Color Black, White
- Cord Range .830"-1.250"(21.08-31.75)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Item Type
Insulgrip Plug
Material
Nylon
Material - Mounting Hardware
Cord Mounted
Number Of Poles
2-Pole
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
Specifications
- Blade Holder - Polyester
- Blades - Brass
- Cord Grip - Polyester
- Housing - Nylon
- Shell - Stainless Steel
- Terminal Screws - Stainless steel
Type
Plugs
Dimensions
Dimensions
6.37 in x 2.56 in x 2.56 in
Display Size
Standard Sized
Height
2.56 in
Length
6.37 in
Weight
1.25 lb
Width
2.56 in
Electrical Ratings
Amperage Rating
50 A
Connectivity
Pressure Terminal Screws
Current / Amperage Rating
50 A
Current Rating
50 A
Dielectric Strength
Withstands 2,000V minimum
Phase
Single Phase
Voltage Rating
250 V
Voltage Rating Description
250 V
Conductor Related
Cable Range
0.830 - 1.250 in
Cord Type
All Listed Portables
Number Of Wires
3-Wire
Wire Size
#10 AWG to #6 AWG
Certifications And Compliance
Industry Standard(s)
- Certified to CSA C22.2 No.42
- Listed to UL 498
Standards - RoHS Compliance Status
CM
