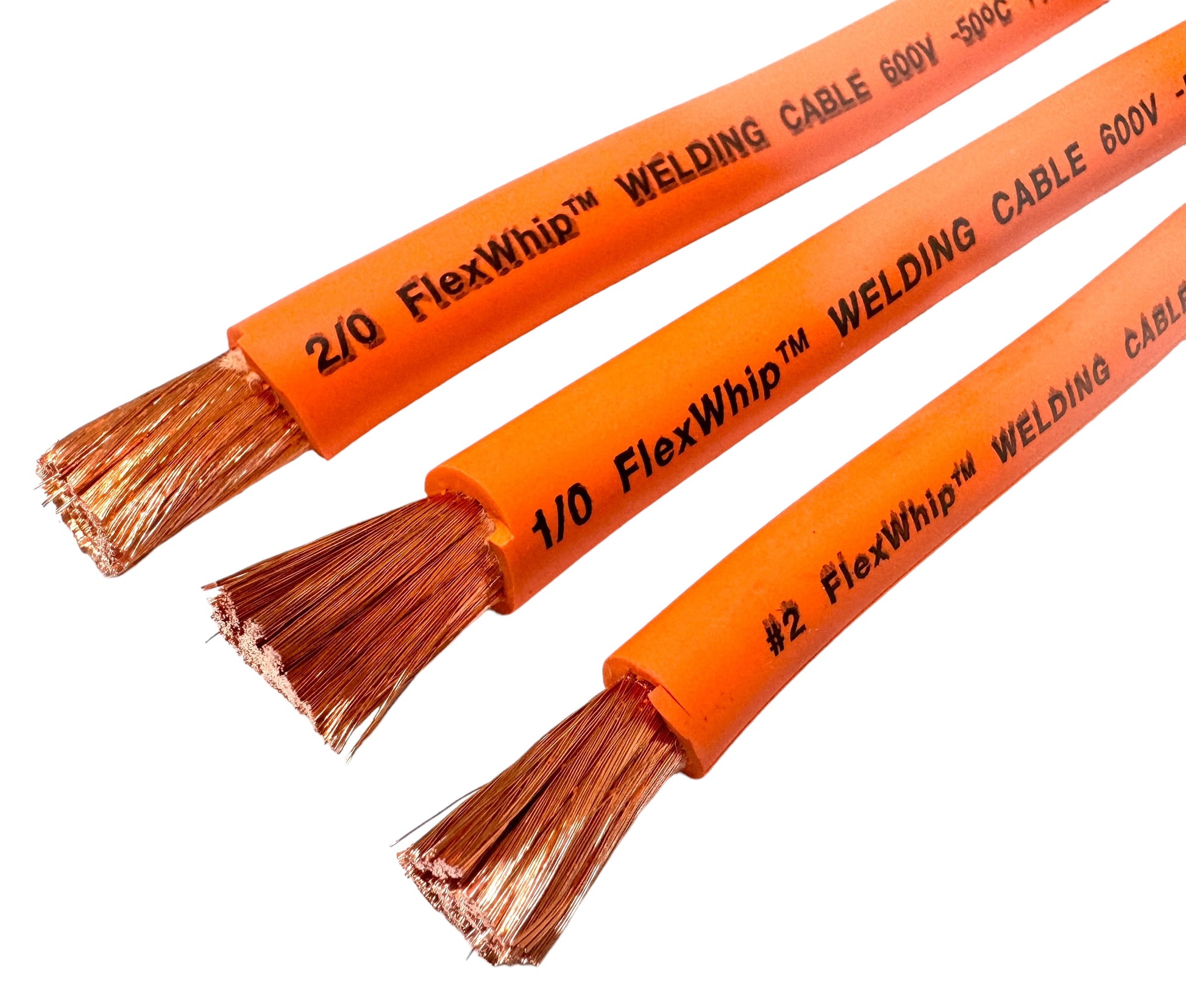

FLEXWHIP WELDING CABLE 34 AWG CLASS M STRANDING

CHOOSE YOUR GAUGE - SOLD PER FT IN ONE LENGTH

FLEX WHIP SAE (J1127) WELDING CABLE WITH A HIGH FLEXABILITY AND IS RATED FOR 600V,CAN BE USED AS LEADS FOR A WELDER OR BATTERY CABLES FOR MACHINERY, SOLAR INVERTER BANKS, CAR AUDIO POWER LEADS AND GROUNDS..

(ROHS COMPLIANCE)

MADE IN USA

BARE COPPER STRANDING:

2g strands:1438 bare copper strands

1/0 strands: 2337 bare copper strands

2/0 strands: 2886 bare copper strands

JACKET: EPDM

O.D:

2 awg:0.424

1/0: .532

2/0: .593

AMPS:

2 awg: 200 up to 50 ft

1/0: 350 UP TO 50 FT

2/0: 450 UP TO 50 FT

TEMPERTURE: -50*C TO 105*C

VOLTS:600V

Highly flexible annealed 34 gauge bare copper conductor, insulated with an EPDM jacket and paper separator. Operating temperatures range from -50°C to +105°C (-58°F to +221°F). Rated to 600 volts

Meets SAE J1127. • Rugged jacket and highly flexible. • Resists Abrasion, Cut, Tear, Flame, Grease, Oil and Water. • National Electrical Code article 630 electric welders. • RoHS Compliant.

Passes exposure to oils and fluids including: Gasoline, Oil, Engine Coolant, Acid, Power Steering Fluid, Diesel, Transmission Fluid, and Ethanol.

EXCELLENT FOR CAR AUDIO INSTALLS.

BATTERY CABLES FOR FORKLIFTS,

SOLAR BATTERY BANKS.

MARINE USE.
