CAMLOCK 4/0 TYPE SC Entertainment ,Generator Cables 5 Cable Set M/F

$399.99 USD

Sale Sold out

Condition: BRAND NEW

EA CABLE LENGTH: 5 FT 10 FT 15 FT 25 FT 50 FT 75 ft 100 ft

Quantity

Low stock: 10 left

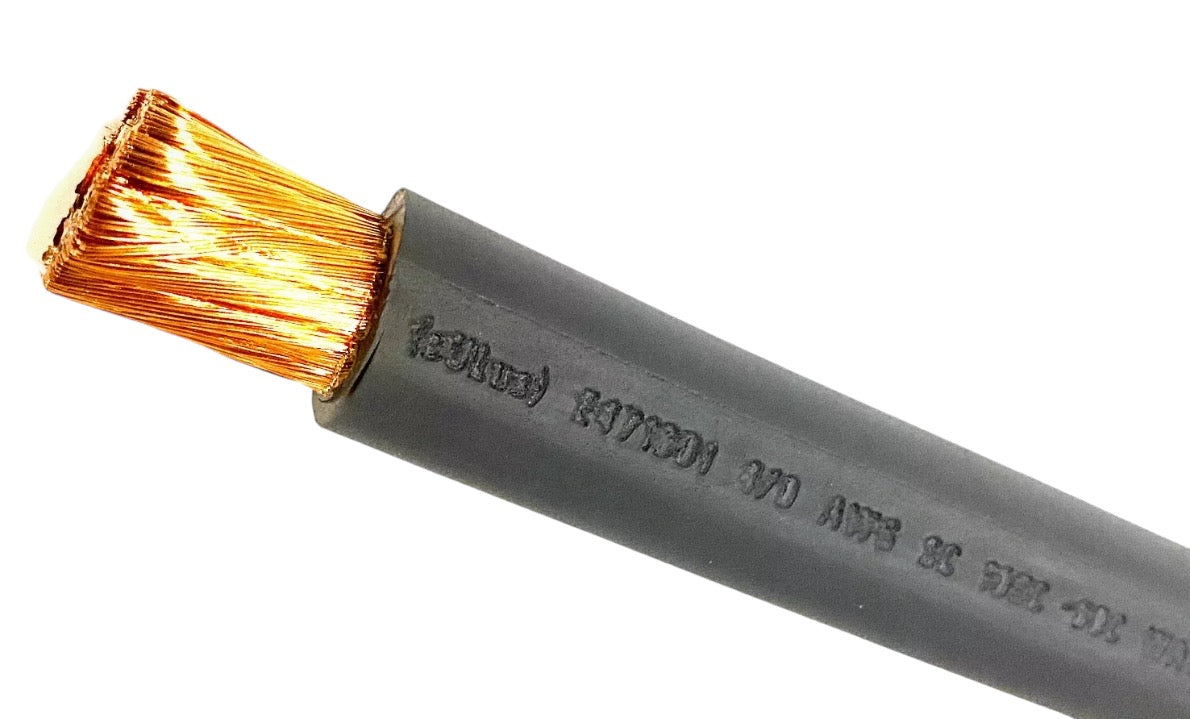

4/0 AWG Type SC Entertainment and Stage Lighting Cable

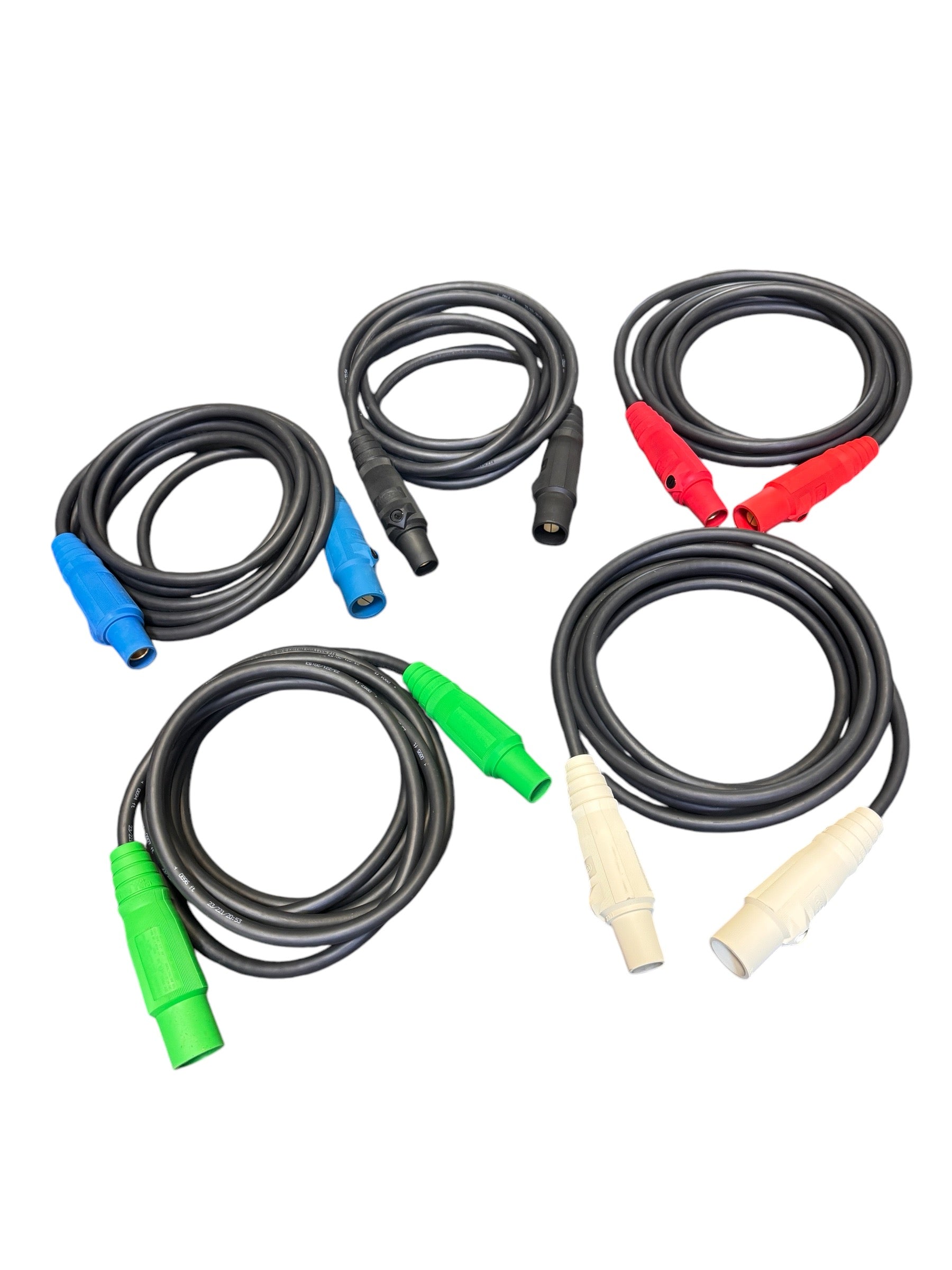

EACH CABLE COMES WITH CAM LOCKS INSTALLED ON EACH END.

CONFIGURATION: MALE TO FEMALE.

THESE CABLES ARE BUILT BRAND NEW WITH TYPE SC 4/0 CABLE AND HUBBELL SERIES 16 400 AMP CAM LOCKS.

MALE TO FEMALE CAM LOCKS.

COLOR:

GREEN-GROUND

WHITE-NEUTRAL

BLACK-LINE 1

RED-LINE 2

BLUE- LINE 3

BUILT IN THE USA.

Features
AWG: 4/0
STRANDS: 2109 / 30 CLASS K
405 AMPS

HUBBELL M/F SERIES 16 CAM LOCKS.

SPECS:

• 600 V

• Wrapped paper separator

• Insulated with low-smoke, halogen-free EPDM compound

• Jacketed with proprietary CPE compound

• Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil,sunlight, and water

• tested 60°C (140°F) oil resistant temperature rating

• tested 720 hours sunlight resistance rating

• -50°C (-58°F) to 105°C (221°F) Dry; 75°C (167°F) WetTemperature RangeTemperature RangeStandards & CertificationsIndustry Approvals

• Listed Type SC

• 1680 (Stage and Lighting Cable)

• 44 and 1581 LISTED

• Listed Type SC

• NFPA 70/NEC Arts. 400, 520, 525, and 530

• FT-5 and VW-1• CSA C22.2 No. 96 and 2556

• ASTM B3, B49, B172, and B263

• MSHA Compliant

• RoHS and Prop 65 Compliant
