CAMLOCK #6 GREEN FEEDER ENTERTAINMENT CAMLOCK CABLE M/F 600V
CAMLOCK #6 GREEN FEEDER ENTERTAINMENT CAMLOCK CABLE M/F 600V
No reviews
Regular price
$85.99 USD
Regular price
Sale price
$85.99 USD
Unit price
/
per
Condition: BRAND NEW
Low stock: 10 left
Couldn't load pickup availability

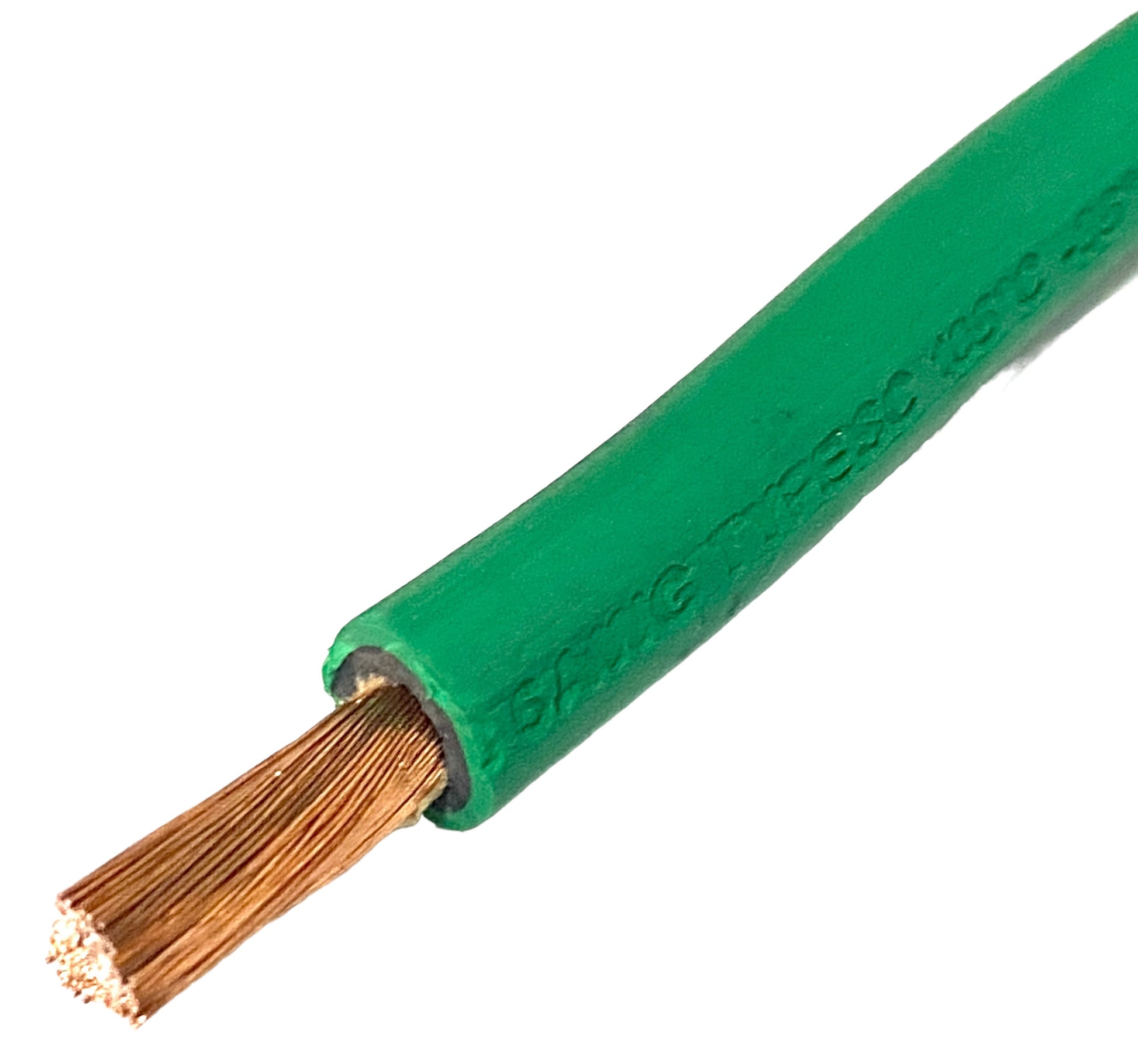

6 GREEN AWG Type SC Entertainment and Stage Lighting FEEDER Cable GROUND CABLE.

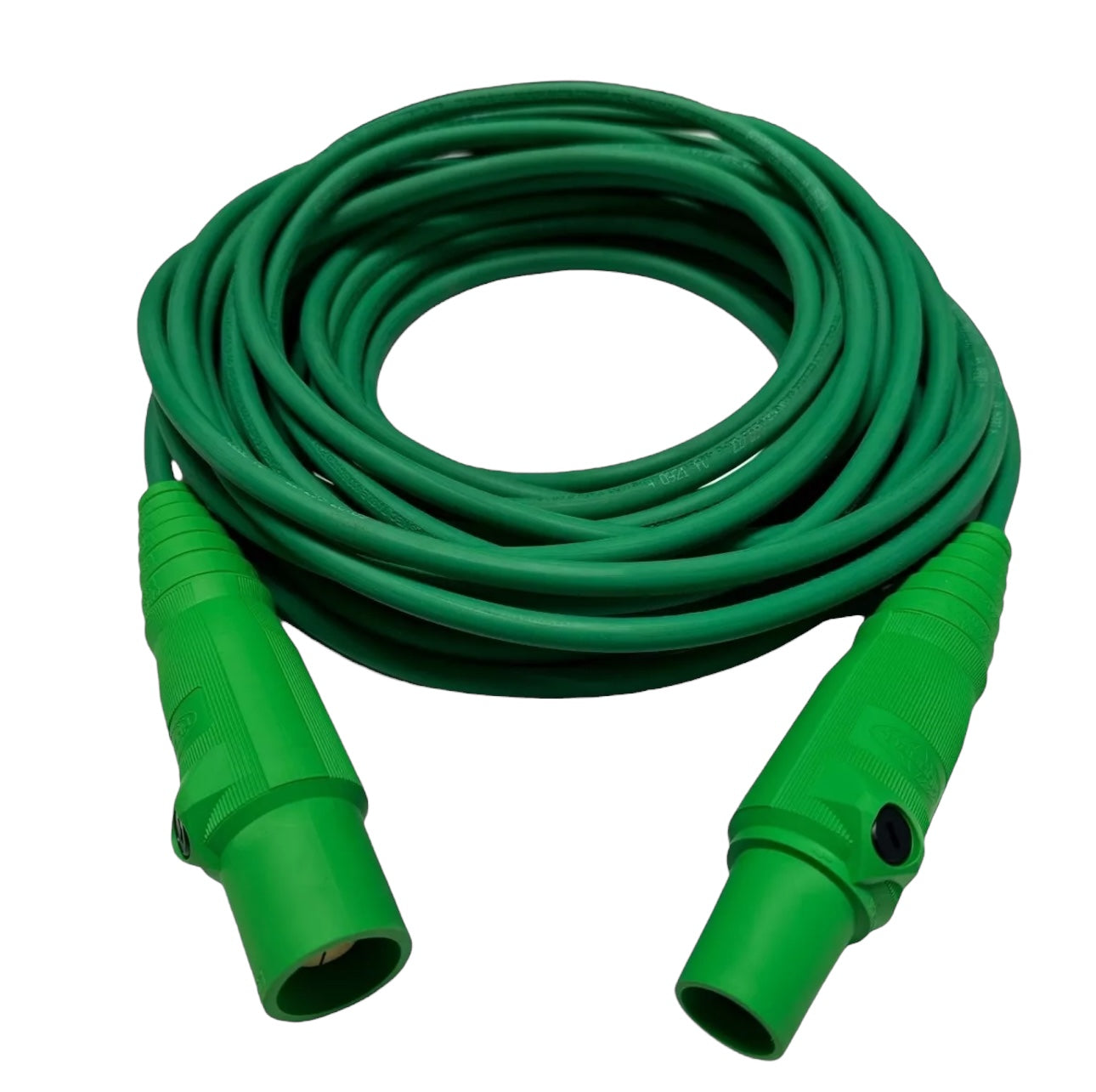

CABLE IS BUILT AND ASSEMBLIED WITH CAM LOCKS INSTALLED ON EACH END.
CONFIGURATION: MALE TO FEMALE.

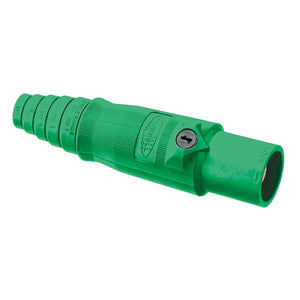

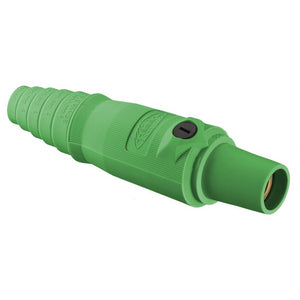

BUILT BRAND NEW WITH TYPE SC 6 AWG GREEN CABLE AND HUBBELL SERIES 16 300 AMP CAM LOCKS.
MALE TO FEMALE CAM LOCKS.
COLOR:
GREEN-GROUND
Features
AWG: #6
STRANDS: 258 / 30 CLASS K
105 AMPS
Specs:
- Bare ASTM Class K copper
- 600 V
- Wrapped paper separator
- Insulated with low-smoke, halogen-free EPDM compound
- Jacketed with proprietary CPE compound
• Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil,sunlight, and water
• tested 60°C (140°F) oil resistant temperature rating
• tested 720 hours sunlight resistance rating
• -50°C (-58°F) to 105°C (221°F) Dry; 75°C (167°F) WetTemperature RangeTemperature RangeStandards & CertificationsIndustry Approvals
• Listed Type SC
• 1680 (Stage and Lighting Cable)
• 44 and 1581 LISTED
• Listed Type SC
• NFPA 70/NEC Arts. 400, 520, 525, and 530
• FT-5 and VW-1• CSA C22.2 No. 96 and 2556
• ASTM B3, B49, B172, and B263
• MSHA Compliant
• RoHS and Prop 65 Compliant
