CAMLOCK 4/0 TYPE SC Entertainment ,Generator Cables 5 Cable Pigtail Set

4/0 TYPE SC  Entertainment ,Generator CAMLOCK Cables 5 Cable Pigtail Set

ALL HUBBELL DEVICES.This is a set of 5 Series 16 Hubbell Plug Locking Devices.

HUBBELL SERIES 16 CAMLOCKS 400 AMP

EACH SET COMES WITH THE PROTECTIVE END CAPS.

1. CHOOSE THE LENGTH OF THE CABLE SET.

2. CHOOSE THE CAMLOCK CONFIGURATION: MMMMM, FFFFF, MMMFF, FFFMM

   1. ALL MALE CAMLOCKS

   2. ALL FEMALE CAMLOCKS

   3. 3 MALE CAMLOCKS WITH GREEN FEMALE AND WHITE FEMALE(MMMFF)

   4. 3 FEMALE CAMLOCKS WITH GREEN MALE AND WHITE MALE (FFFMM)

3. CHOOSE THE CAMLOCK COLOR CONFIGURATION:
   1. Red, Blue, and Black for each Phase Green/ground, White neutral (120/208V Wye, 240V Delta).
   2. Orange, Yellow, and Brown for each Phase Green/ground, White neutral (277/480V Wye, 480V Delta)

Applications:

Portable power systems. Entertainment industry activities such as theater, television, nightclubs, motion pictures, mobile communication vans, spotlights, and sound systems. Other similar applications would require temporary power. Stage Lighting Entertainment Cable Type SC is a temporary power supply cable used in the entertainment industry, such as television, sound stages, concert venues, and outdoor areas. The electrical cable is also often used in portable lighting systems used on movie production sets, theaters, and stages, and as an Entertainment Industry Stage Lighting Cable (EISL). The electrical cable is rated 600 volts and is used in temperatures between -50°C and -105°C.

Known As:

4/0 SC Cable, 4/0 SC Stage Lighting Cable, 4/0 Entertainment Stage Lighting Cable, 4/0 Stage Lighting Entertainment Wire Type SC, 4/0 Stage Lighting Wire, 4/0 SC Feeder Stage Cable, 4/0 Entertainment Industry Cable, 4/0 SC Portable Power Cable, 4/0 SC Portable Power Cord.

Standards:

• UL Subject 1680
• CSA C22.2 No. 96
• NEC Article 520, 525 & 530
• CEC Part I, Table 11
• RoHS
• MSHA

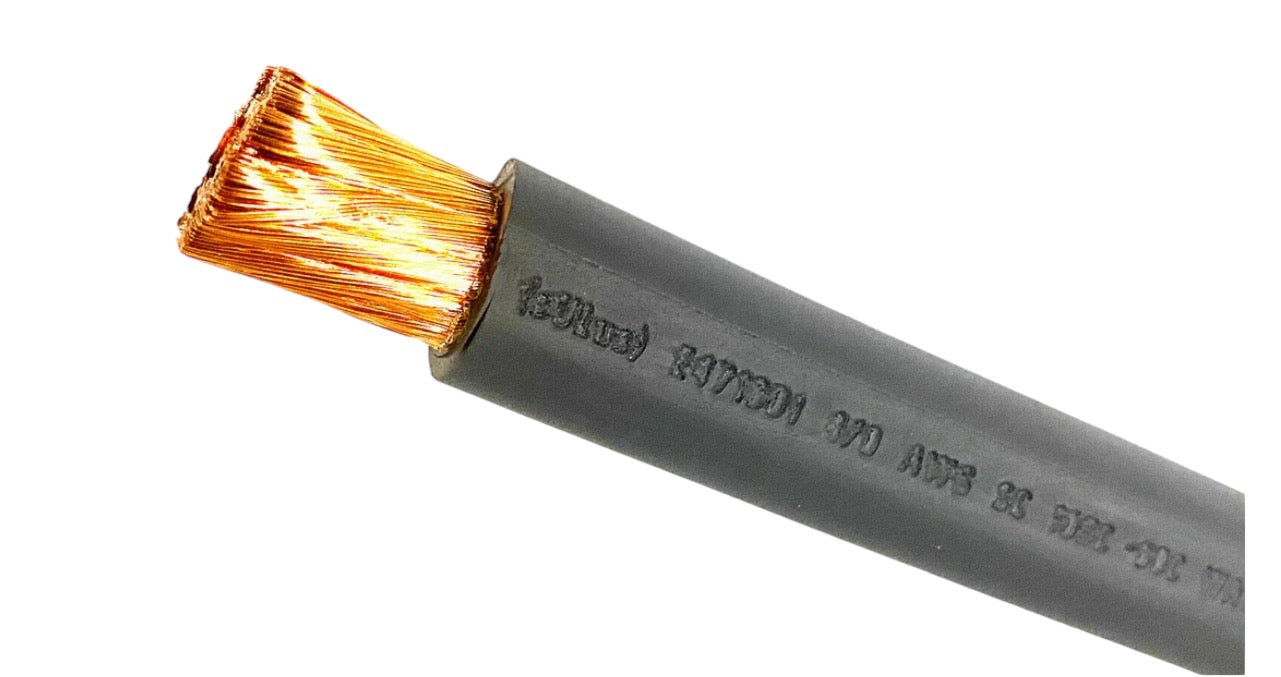

Conductor:

Fully annealed stranded bare copper per ASTM B 172

Insulation:

EPDM/CPE insulation resistant to sunlight, water, ozone, abrasion, acids, alkalis, heat, flame, and chemicals.

Specification:

• AWG Size: 4/0
• Number of Conductors: 1
• Stranding: 2109/30
• Insulation Wall, Nom OD Inches: 0.062
• Nominal Diameter (inches): 0.828

**USA BUILT AND MADE IN THE USA.
