CAM LOCK 4/0 DLO Entertainment ,Generator Power Pigtail Cables 27pc -10ft 240v
CAM LOCK 4/0 DLO Entertainment ,Generator Power Pigtail Cables 27pc -10ft 240v
No reviews
Regular price
$3,299.99 USD
Regular price
Sale price
$3,299.99 USD
Unit price
/
per
Condition: BRAND NEW
Low stock: 5 left
Couldn't load pickup availability
CAM LOCK 4/0 DLO 2KV Entertainment ,Generator Power Pigtail Cables 27pc -10ft EA
ALL HUBBELL DEVICES.

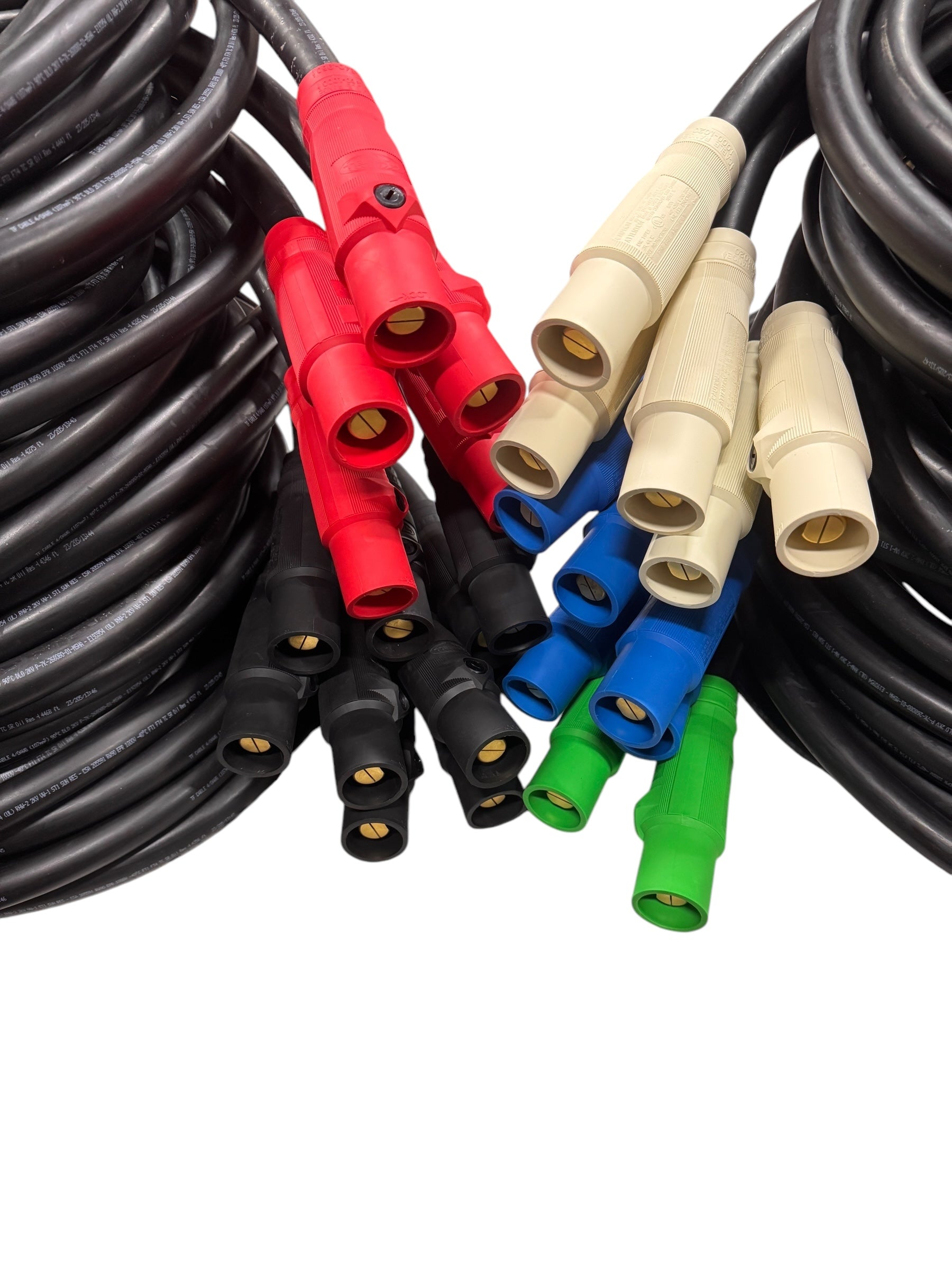

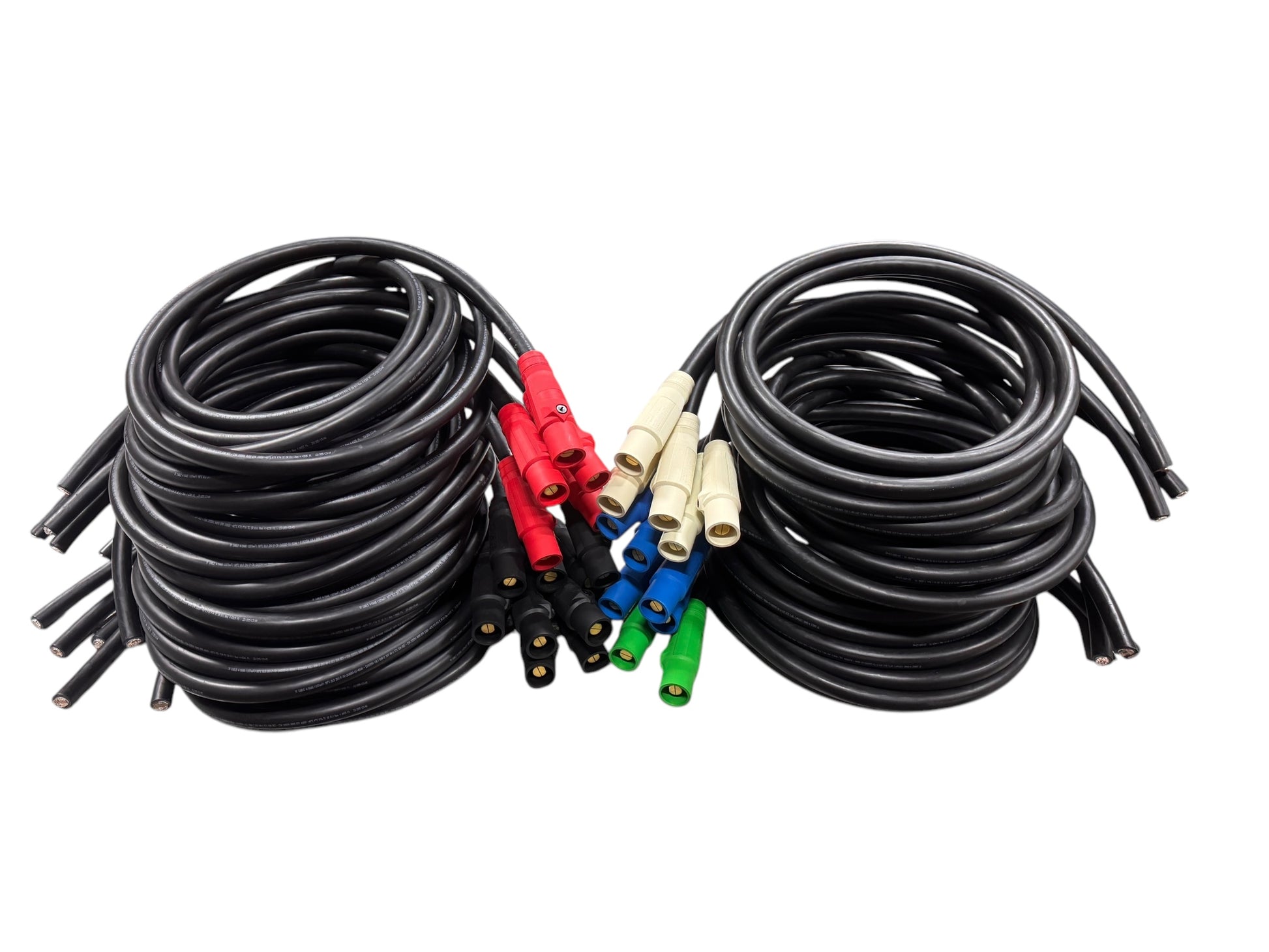

This is a set of 27 Series 16 Hubbell Plug Locking Devices.
10 - BLACK MALE CAMLOCKS TO PIGTAIL - 10 FT EA
5 - BLUE MALE CAMLOCKS TO PIGTAIL - 10 FT EA
5 - RED MALE CAMLOCKS TO PIGTAIL - 10 FT EA
5 - WHITE MALE CAMLOCKS TO PIGTAIL - 10 FT EA
2 - GREEN MALE CAMLOCKS TO PIGTAIL - 10 FT EA
400 AMPS MALE HUBBELL CAMLOCK DEVICES.
STANDARD USA COLOR-CODING
Red, Blue, and Black for each Phase (120/208V Wye, 240V Delta)
Green for Ground.
White for Neutral.
ALL orders will be shipped M-PIGTAIL
IF YOU NEED A DIFFERENT CONFIGURATION OR LENGTH PLEASE CONTACT US.
Conductors
- Rope-lay, bunch-stranded 24 AWG ASTM Class I tinned copper
Voltage Rating
- 600 / 1,000 / 2,000 V
- 405 AMPS
Separators
- Paper (1P) and Poly Wrap (2P)
Insulation & Jacket
- Insulated with LSHF EPDM compound
- Jacketed with CPE compound
Resistance Properties
- Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight, and water
- UL tested 60°C oil resistant temperature rating
- UL tested 720 hours sunlight resistance rating
Temperature Range
- -40°C - +90°C (dry) / +90°C (wet)
- Industry Approvals
- UL 44, 1650, 2556, and 2806
- UL Listed RHH / RHW-2
- CSA C22.2 No. 38 and 2556
- CSA C22.1 / CEC
- CSA Listed RW90
- MSHA Approved
- FT-1, FT-2, and FT-5
- 30-CFR-Part 7 Subchapter K
- NFPA 70 / NEC
- ASTM B3 or B33, B49, B172 or B174, B263
- CMRT and Prop 65 Compliant
- THIS LISTING IS FOR ALL MALE TO PIGTAIL**
USA BUILT AND MADE IN THE USA
