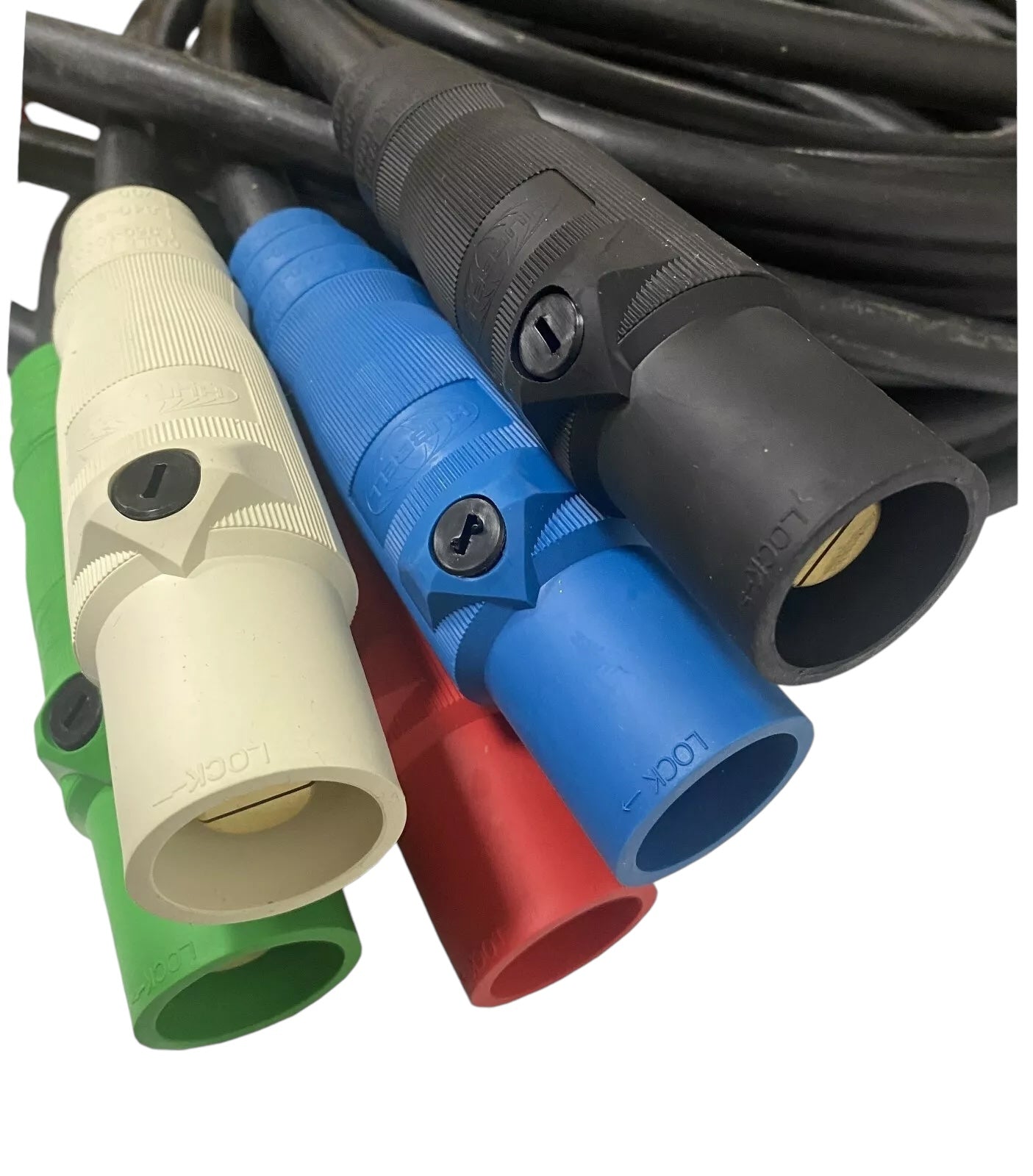

4/0 TYPE W Entertainment ,Generator CAMLOCK Cables 5 Cable set.

4/0 TYPE W Entertainment ,Generator CAMLOCK Cables 5 Cable  Set

ALL HUBBELL DEVICES.

This is a set of 5 Series 16 Hubbell Plug Locking Devices.

HUBBELL SERIES 16 CAMLOCKS 400 AMP

EACH SET COMES WITH THE PROTECTIVE END CAPS.

CHOOSE THE LENGTH OF THE CABLE SET.

CHOOSE THE CAMLOCK CONFIGURATION:

M/F, MMMMM, FFFFF, MMMFF-FFFMM, FFFMM-MMMFF

ALL MALE CAMLOCKS (MMMMM) BOTH ENDS

ALL FEMALE CAMLOCKS. (FFFFF) BOTH ENDS

MALE TO FEMALE - (M/F)

3 MALE CAMLOCKS WITH GREEN FEMALE AND WHITE FEMALE

(MMMFF-FFFMM) REVERSED.

3 FEMALE CAMLOCKS WITH 2 MALE CAMLOCKS.

(FFFMM - MMMFF) REVERSED.

CHOOSE THE CAMLOCK COLOR CONFIGURATION:

• Red, Blue, and Black for each Phase Green/ground, White neutral (120/208V Wye, 240V Delta).
• Orange, Yellow, and Brown for each Phase Green/ground, White neutral (277/480V Wye, 480V Delta)

Specification on the Cable:

Type W Single-Conductor Portable Power And Mining Cable 2kv

• Applications:Type W Single Conductor Cable is used in the entertainment industry's power supply, including television program shoots, music sound stages, and concerts. The electrical cable is suitable for outdoor applications and in portable lighting systems used on movie production sets, theaters, and stages. The cable is known for its excellent portability and electrical transmission efficiency. The electrical cable is rated 2000V.
• Also Known As:Type W Portable Power Cable, Type W Mining Cable, Type W cable, Type W Portable Power Cord, Type W Entertainment Cable, Type W, Single-Conductor Type W, Type W Power Cable
• Standards:UL Subject 1680,CSA C22.2 No. 96,NEC Article 520, 525 & 530,CEC Part I, Table 11,RoHS,MSHA
• Construction:
• Conductor:Fully annealed Class K stranded bare copper per ASTM B 174
• Insulation:EPDM/CPE insulation resistant to sunlight, water, ozone, abrasion, acids, alkalis, heat, flame, and chemicals
• AMPS: 405

**USA BUILT AND MADE IN THE USA.
