4/0 SC Feeder Assembly
4/0 SC Feeder Assembly
Condition: BRAND NEW
50 in stock

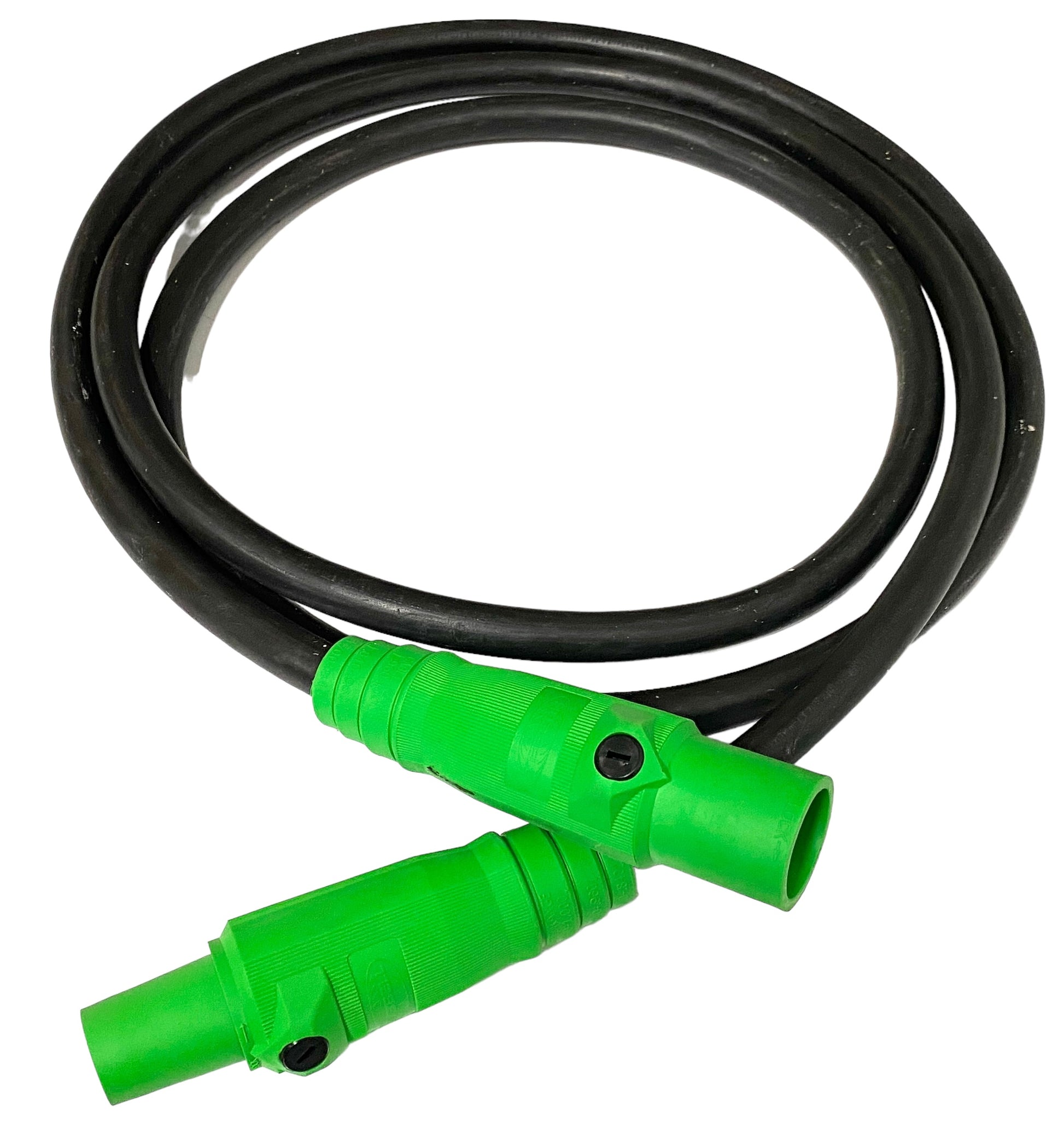

Wireandsupply.com Single Conductor entertainment cable features 4/0 gauge SC cable, one male camlock connector, and one female camlock connector.
FEATURES
- UL and c(UL) listed SC Cable made from annealed No. 30 gauge bare copper stranding.
- Durable and flexible CPE insulation.
- Resistant to abrasion, acids, heat, flame, chemicals, sunlight, water, and ozone.
- Hubbell series 16 400 amp camlocks.(fits any series 16 camlock connectors.
Allowable Ampacity For 4/0 AWG Stage Lighting Entertainment Cable Type SC: 405 Amps
Applications:
Portable power systems. Entertainment industry activities such as theater, television, nightclubs, motion pictures, mobile communication vans, spotlights, and sound systems. Other similar applications would require temporary power. Stage Lighting Entertainment Cable Type SC is a temporary power supply cable used in the entertainment industry, such as television, sound stages, concert venues, and outdoor areas. The electrical cable is also often used in portable lighting systems used on movie production sets, theaters, and stages, and as an Entertainment Industry Stage Lighting Cable (EISL). The electrical cable is rated 600 volts and is used in temperatures between -50°C and -105°C.
Also Known As:
4/0 SC Cable, 4/0 SC Stage Lighting Cable, 4/0 Entertainment Stage Lighting Cable, 4/0 Stage Lighting Entertainment Wire Type SC, 4/0 Stage Lighting Wire, 4/0 SC Feeder Stage Cable, 4/0 Entertainment Industry Cable, 4/0 SC Portable Power Cable, 4/0 SC Portable Power Cord.
Standards:
- UL Subject 1680
- CSA C22.2 No. 96
- NEC Article 520, 525 & 530
- CEC Part I, Table 11
- RoHS
- MSHA
Construction:
Conductor:
Fully annealed stranded bare copper per ASTM B 172
Insulation:
EPDM/CPE insulation resistant to sunlight, water, ozone, abrasion, acids, alkalis, heat, flame, and chemicals.
Specification:
- AWG Size: 4/0
- Number of Conductors: 1
- Stranding: 2109/30
- Insulation Wall, Nom OD Inches: 0.062
-
Nominal Diameter (inches): 0.828
