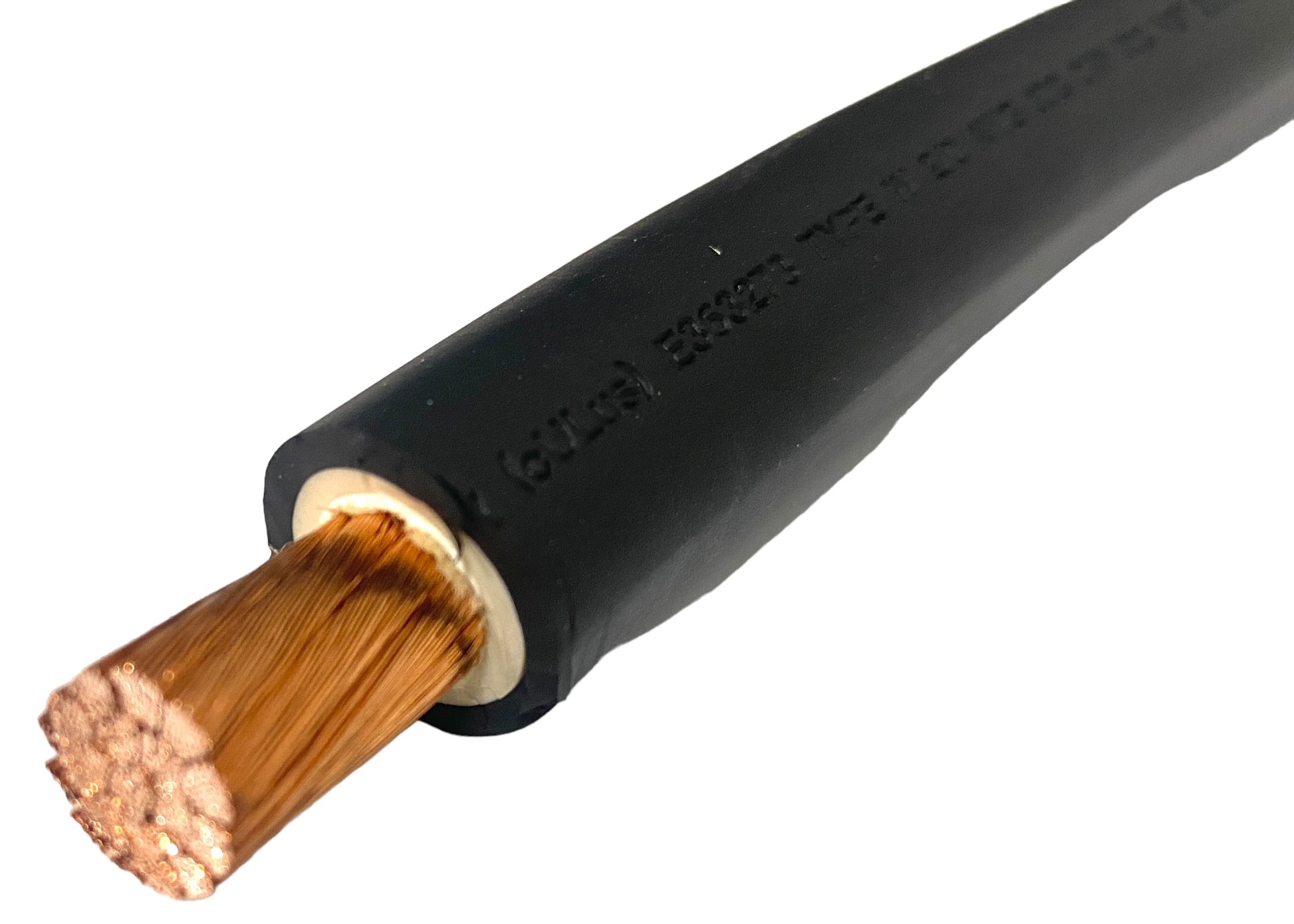

2/0 Portable Power Cable (Type W) (1C) Generator cable

type w portable power cable 2000v generator power cable.
heavy-use, industrial, and emergency applications, including power and equipment rental (e.g. power generators), motor and battery leads, mining and oil drilling, shore power, HVAC systems, and general power distribution.

• Conductors

  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare ASTM Class K copper.

  Voltage Rating

  • 600 V and 2,000 V
  Separators

  • Paper (conductor); Mesh (insulation)
  Insulation & Jacket

  • Insulated with low-smoke, halogen-free EPDM compound
  • Jacketed with proprietary CPE compound
  Resistance Properties

  • Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight, and water
  • UL tested 60°C (140°F) oil resistant temperature rating
  • UL tested 720 hours sunlight resistance rating
  Temperature Range

  • -40°C (-40°F) to 90°C (194°F) Dry; 90°C (194°F) Wet.
  • stranding: 1339/30 bare copper strands.
  • amp: 300
