Hubbell Snake Bite Stage Pin Adapter 100 Amp 125V (Male)
Hubbell Snake Bite Stage Pin Adapter 100 Amp 125V (Male)
No reviews
Regular price
$215.99 USD
Regular price
Sale price
$215.99 USD
Unit price
/
per
Condition: BRAND NEW
Low stock: 5 left
Couldn't load pickup availability

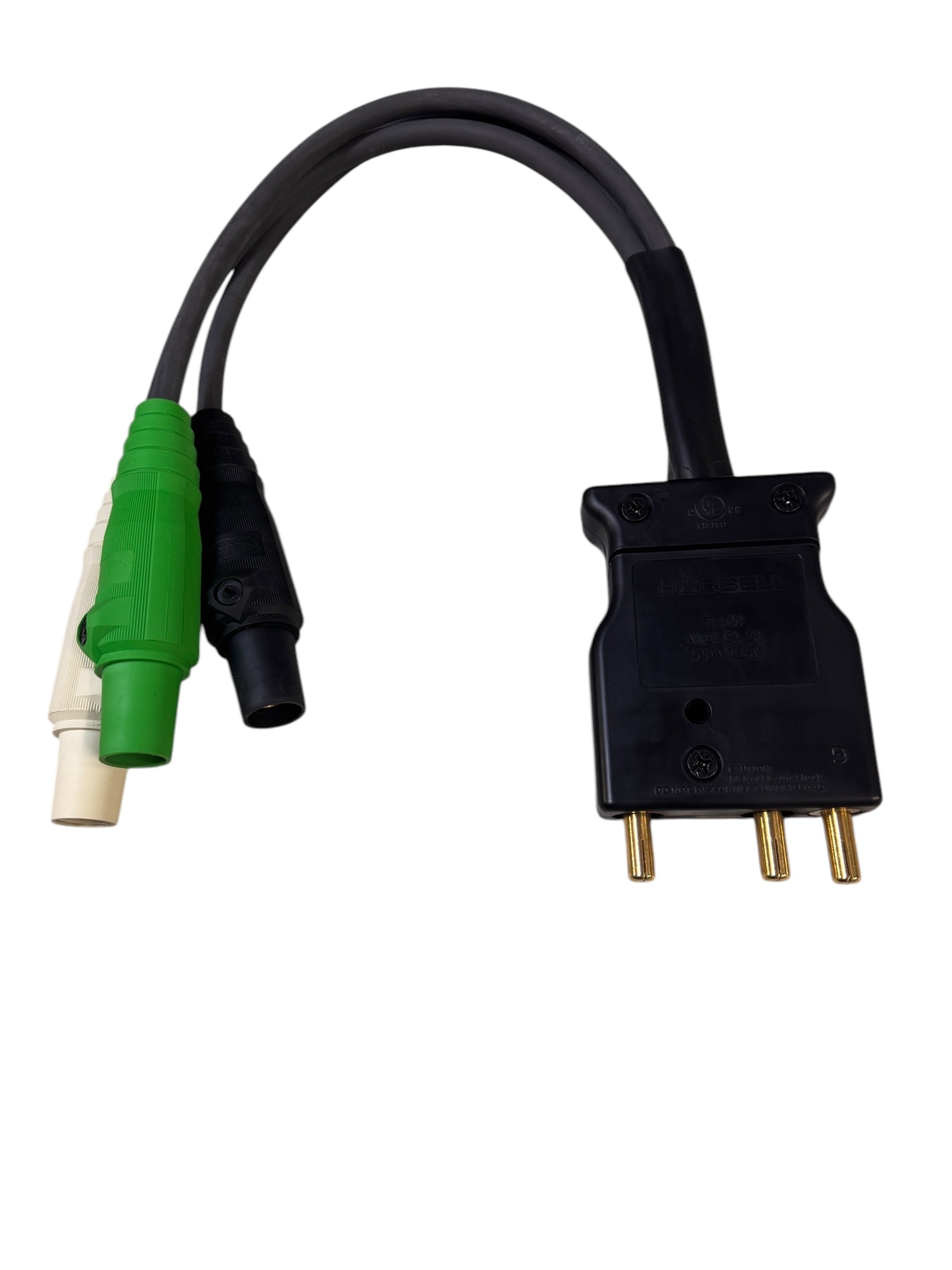

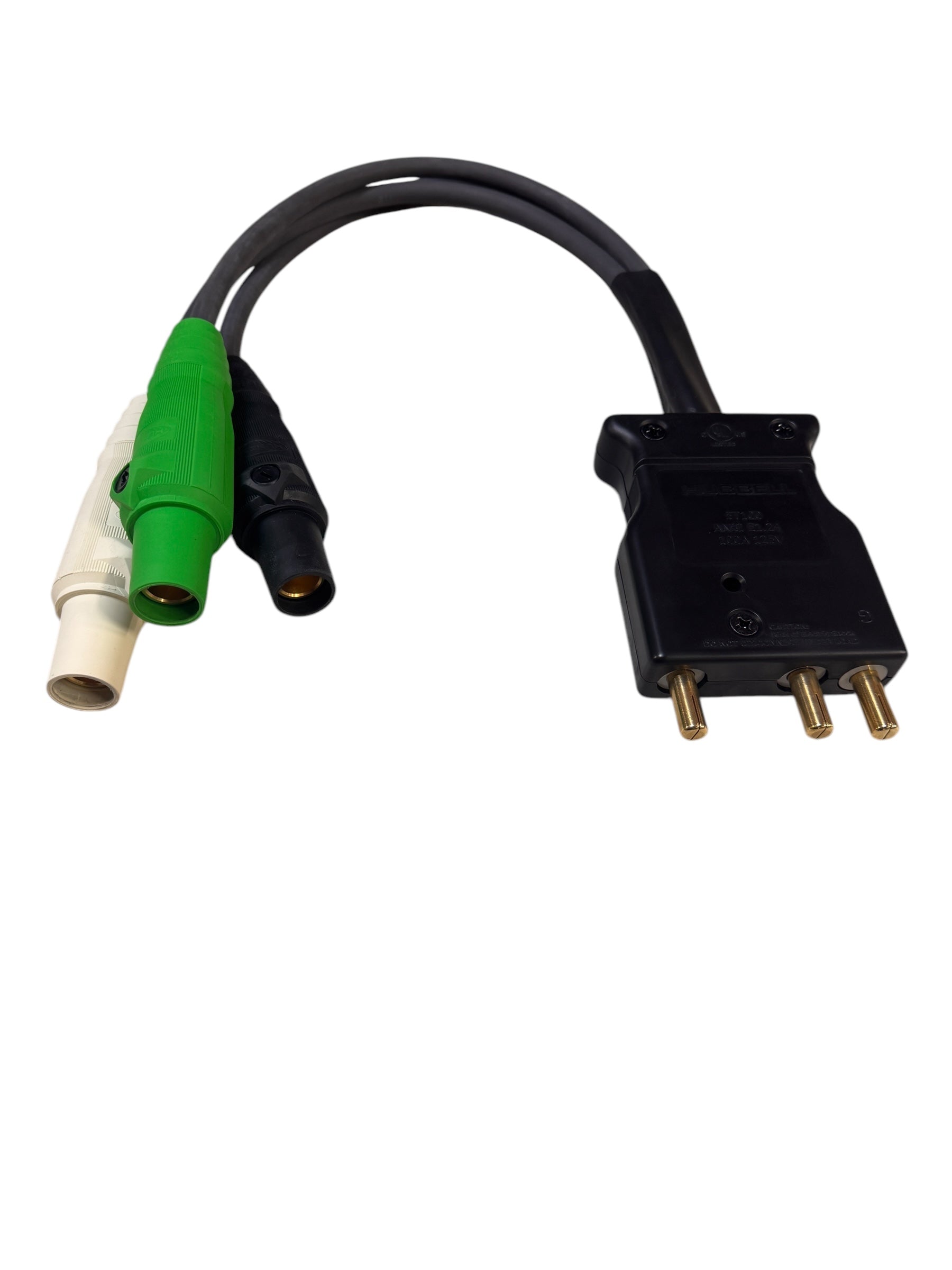

Snake Bite Stage Pin Adapter 100 Amp 125V (Male)
- Adapters build with UL listed Type SC cable.
- 100A build with (3) #2 AWG Black Type Sc cable
- High durability and flexibility
- Resistant to Oil, Solvents, Ozone, Aging and Abrasion
- Cam lock 16 series Hubbell
- Hubbell Hbl100spm stage pin connector standard UL listed and ETL
- Robust, reliable and 100% continuity tested
- Standard lengths: 2′ but can get it in other lengths
- configuration: 100A male stage pin to 3 female Camlocks.
Applications: Used to power lights and distribution boxes commonly found on set and stages.
Markets: Movie and TV production, Theaters etc

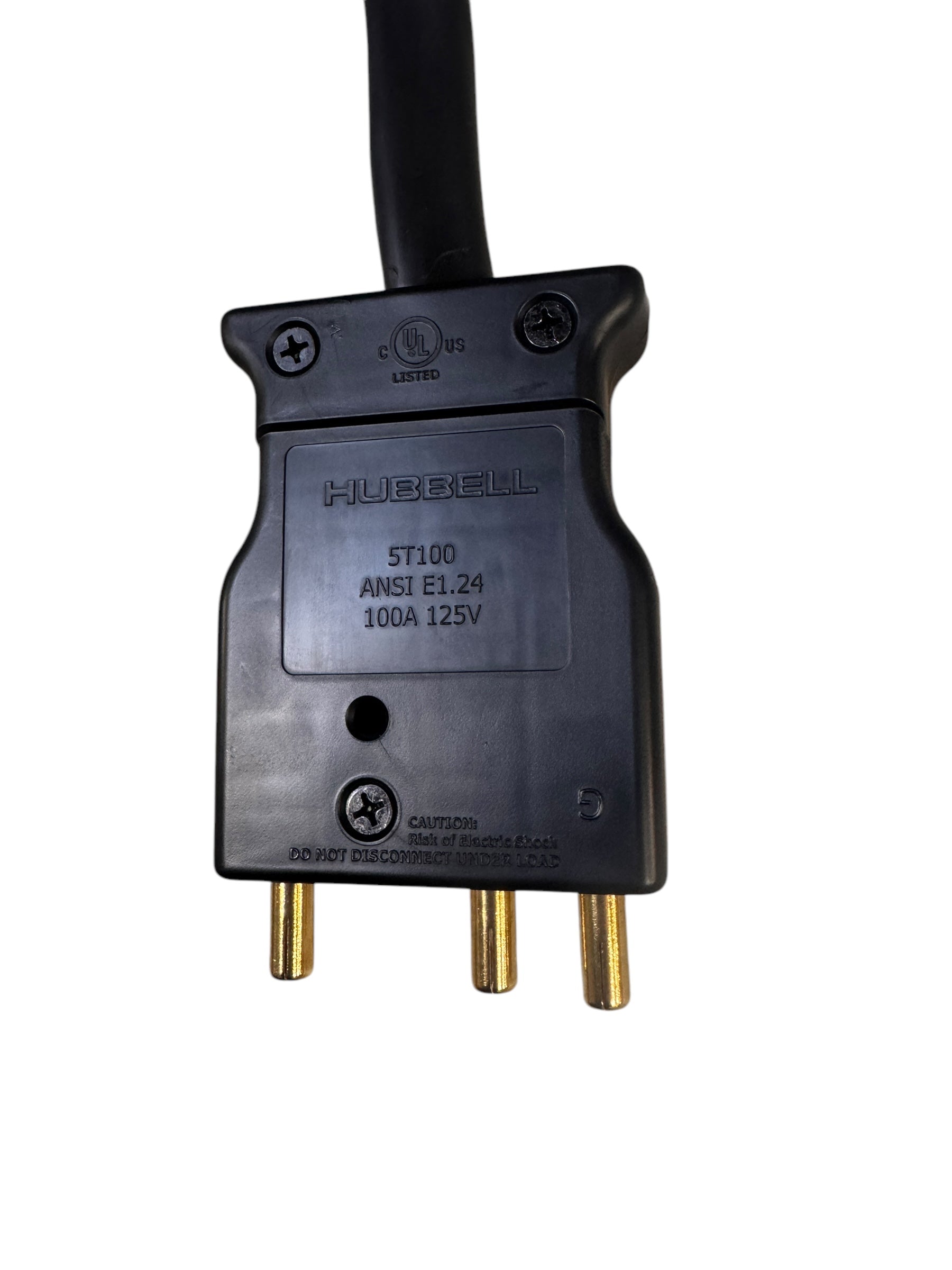

Specs Hbl100SPM Stage Pin Connector:
- cULus, UL Enc Type 1, ESTA Compliant
- Housing Material Super-Tough Nylon
- Contact Material Brass
- Contact Sleeve Material PBT
- Electrical Amperage Rating 100A Maximum
- Voltage Rating 125V Maximum
- Environmental Moisture Resistance UL Enclosure Type 1
- Lightweight, Impact Resistant, Easy to Wire, ESTA Compliant 100A Stage Pin Devices
- double Set screw
Cable Specs:
Conductors
- Rope-lay, bunch-stranded 30 AWG copper conductor
- Bare ASTM Class K copper
Voltage Rating
- 600 V
Insulation & Jacket
- Wrapped paper separator
- Single-Layer proprietary CPE construction
- Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight, and water
- UL tested 60°C (140°F) oil resistant temperature rating
- UL tested 720 hours sunlight resistance rating
Temperature Range
- -50°C (-58°F) to 105°C (221°F) Dry
-
Industry Approvals
- UL Listed Type SC
- UL 1680 (Stage and Lighting Cable)
- UL 44 and 1581, & 2556
- NFPA 70/NEC Articles 400, 520, 525, and 530
- FT-5 (4/0 and larger only)
- ASTM B3, B49, B172, and B263
Camlock Specs:
- Hubbell 300amp camlock
- Series 16
- Female: Green, White, Black
- National Electric Code (NEC), ANSI/NFPA 70
- UL and cUL Listed
- UL Enclosure Types 3R, 4X, 12
- Base Compound - Thermoplastic Elastomer
- Contact Material - Brass
- Retaining Screw Material - Nylon
- Electrical - Amperage Rating - 400A Maximum
- Electrical - Voltage Ratings - 600V AC Maximum
- 250V DC Maximum
- Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17
- Mechanical - Product Identification - Ratings are a permanent part of device
-
Amperage Rating:300
BUILT AND ASSEMBLIED AT THE WIREANDSUPPLY CABLE ASSEMBLY WAREHOUSE.
MADE IN THE USA.
(if you need a longer length Email us for a Quote).
