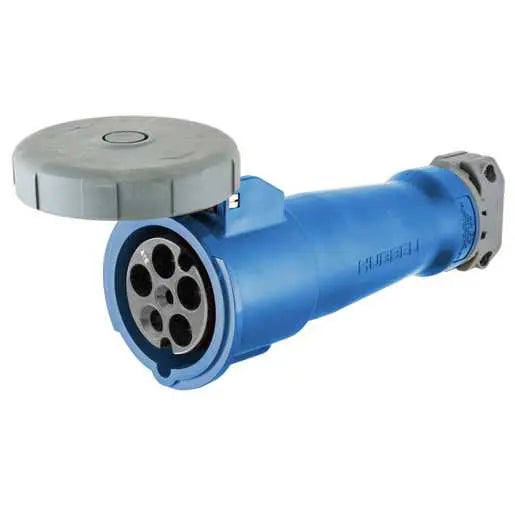

HUBBELL HBL5100C9W IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, Watertight

HUBBELL HBL5100C9W IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, Watertight

Regular price $575.99 USD
Regular price Sale price $575.99 USD
Sale Sold out

Condition: BRAND NEW

Quantity

Low stock: 2 left

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, Watertight



Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing

Watertight



General

Application: High Ampacity Connections

Catalog Number: HBL5100C9W

Color: Blue

EU RoHS Indicator: Yes

Material - Mounting Hardware: Cord Mounted

Number Of Poles: 4-Pole

Specifications

Style: Standard Service

Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Type: Watertight Connector Body

Electrical Ratings

Amperage Rating: 100 A

Connectivity: Pressure Terminal Screws

Voltage Rating: 3 Phase Y 120/208 VAC

Conductor Related

Conductor Range: #3 AWG to #1/0 AWG

Number of Conductors: 5-Wire Grounding

Number Of Wires: 5-Wire

Certifications And Compliance

EU RoHS Indicator: Yes

Industry Standard(s)

Nema Rating: Non-NEMA

Operational

Temperature Rating

Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Configuration

Number Of Poles: 4-Pole
