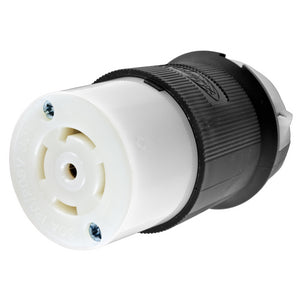

HUBBELL HBL2813 Female Connector, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30R, Screw Terminal, Black and White

HUBBELL HBL2813 Female Connector, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30R, Screw Terminal, Black and White

• Catalog Number - HBL2813
• Color  - Black, White
• Cord Range - 0.350"-1.150" (9-29)
• Environmental Conditions - Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator - Yes
• Item Type - 30A Grounding Insulgrip® Plug
• Material - Nylon
• Material - Mounting Hardware - Cord Mounted
• Number Of Poles - 4-Pole
• Operating Temperature - Maximum continuous 75°C and minimum -40°C without Impact
• Performance - Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - 2,000V minimum
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17

• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Electrical Ratings - Amperage Rating 30 A
• Connectivity - Pressure Terminal Screws
• Current / Amperage Rating 30 A
• Current Rating 30 A
• Dielectric Strength Withstands 2,000V minimum
• Phase - Three Phase
• Voltage Rating - 3 Phase WYE 120/208 VAC
• Conductor Related - Cable Range 0.350 - 1.150 in
• Cord Type - All Listed Portables
• Number Of Wires 5-Wire
• Wire Size #16 AWG to #8 AWG
• Certifications And Compliance Industry Standard(s), Certified to CSA C22.2 No.42, Fed.Spec. W-C-596 ,Listed to UL 498
• Nema Rating - L21-30R

its counter part is HBL2811
