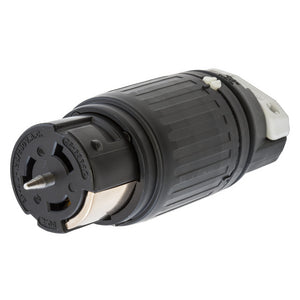

HUBBELL CS8264C Industrial, Female Plug, 50A Single Phase 250V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
HUBBELL CS8264C Industrial, Female Plug, 50A Single Phase 250V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
No reviews
Regular price
$69.99 USD
Regular price
Sale price
$69.99 USD
Unit price
/
per
Condition: BRAND NEW
Out of stock
Couldn't load pickup availability
Industrial, Female Plug, 50A Single Phase 250V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
- 50 amp
- 250v
- 2p 3w
- counter part is CS8265C
Catalog Number
- CS8264C
- Color: Black, White
- Cord Range .830"-1.250"(21.08-31.75)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- EU RoHS Indicator No
- Insulation: Insulated Body
- Item Type: Insulgrip Connector
- Material: Nylon
- Material - Mounting Hardware Cord Mounted
- Number Of Poles: 2-Pole
- OEM Brand Name:Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
Specifications
- Contacts - Brass
- Cord Grip - Polyester
- Housing - Nylon
- Terminal Retainer - Thermoplastic polyester
- Terminal Screws - Stainless Steel
Type
Connector Body
Dimensions
- Dimensions: 6.50 in x 2.56 in x 2.50 in
- Display Size: Standard
- Height:2.5 in
- Length: 6.5 in
- Weight: 0.95 lb
- Width: 2.56 in
Electrical Ratings
- Amperage Rating 50 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 50 A
- Current Rating: 50 A
- Dielectric Strength: Withstands 2,000V minimum
- Voltage Rating: 250 V
- Voltage Rating Description: 250 V
Conductor Related
Cable Range
0.830 - 1.250 in
Number Of Wires
3-Wire
Wire Size
#10 AWG to #6 AWG
Certifications And Compliance
Industry Standard(s)
- Certified to CSA C22.2 No.42
- Listed to UL 498
Standards - RoHS Compliance Status
CM
