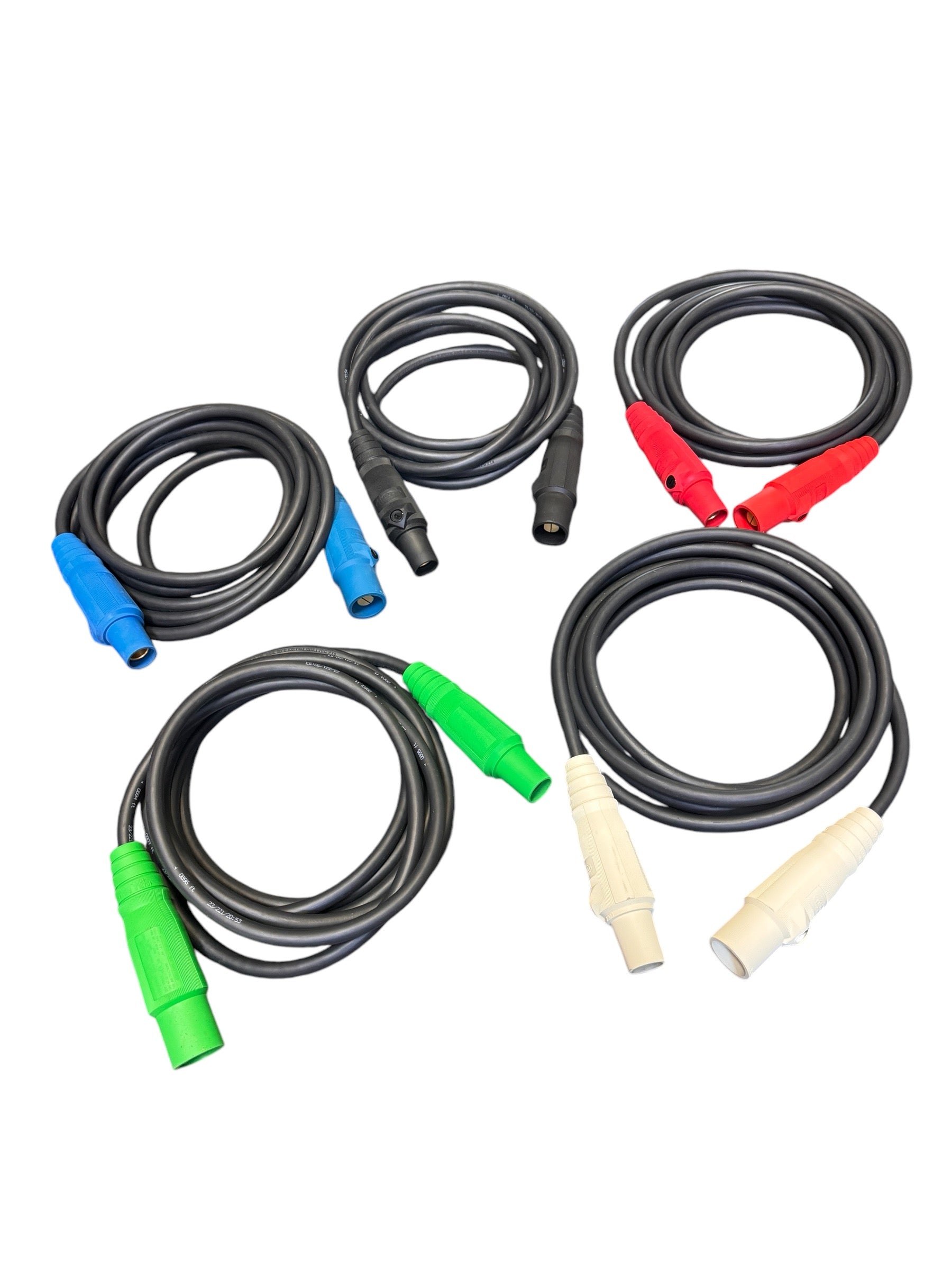

Camlock Extension Power Cables 5pc Set 1/0 AWG for Power Distro 260A U

Camlock Extension Power Cable 1/0 AWG 5pcs for Power Distro 260A USA

BUILT AND ASSEMBLED IN THE USA AT THE ACDCWIREANDSUPPLY CABLE ASSEMBLY WAREHOUSE.

TYPE SC CABLE

600V

260AMPS

YOU CHOOSE THE LENGTH AND THE CONFIGURATION.

CABLE SPECS:

CONDUCTORS: Rope-lay, bunch-stranded 30 AWG copper conductor; bare ASTM Class K copper

VOLTS: 600

INSULATION AND JACKET: Wrapped paper separator • Single-Layer construction with proprietary CPE compound • Improved black color compound • Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight, and water • UL tested 60°C (140°F) oil resistant temperature rating • UL tested 720 hours sunlight resistance rating

Temperature Range • -50°C (-58°F) to 105°C (221°F) Dry

Industry Approvals • UL Listed Type SC • UL 1680 (Stage and Lighting Cable) • UL 44 and 1581, & 2556 • NFPA 70/NEC Arts. 400, 520, 525, and 530 • FT-5 (4/0 and larger only) • CSA C22.2 No. 96 and 2556 • ASTM B3, B49, B172, and B263

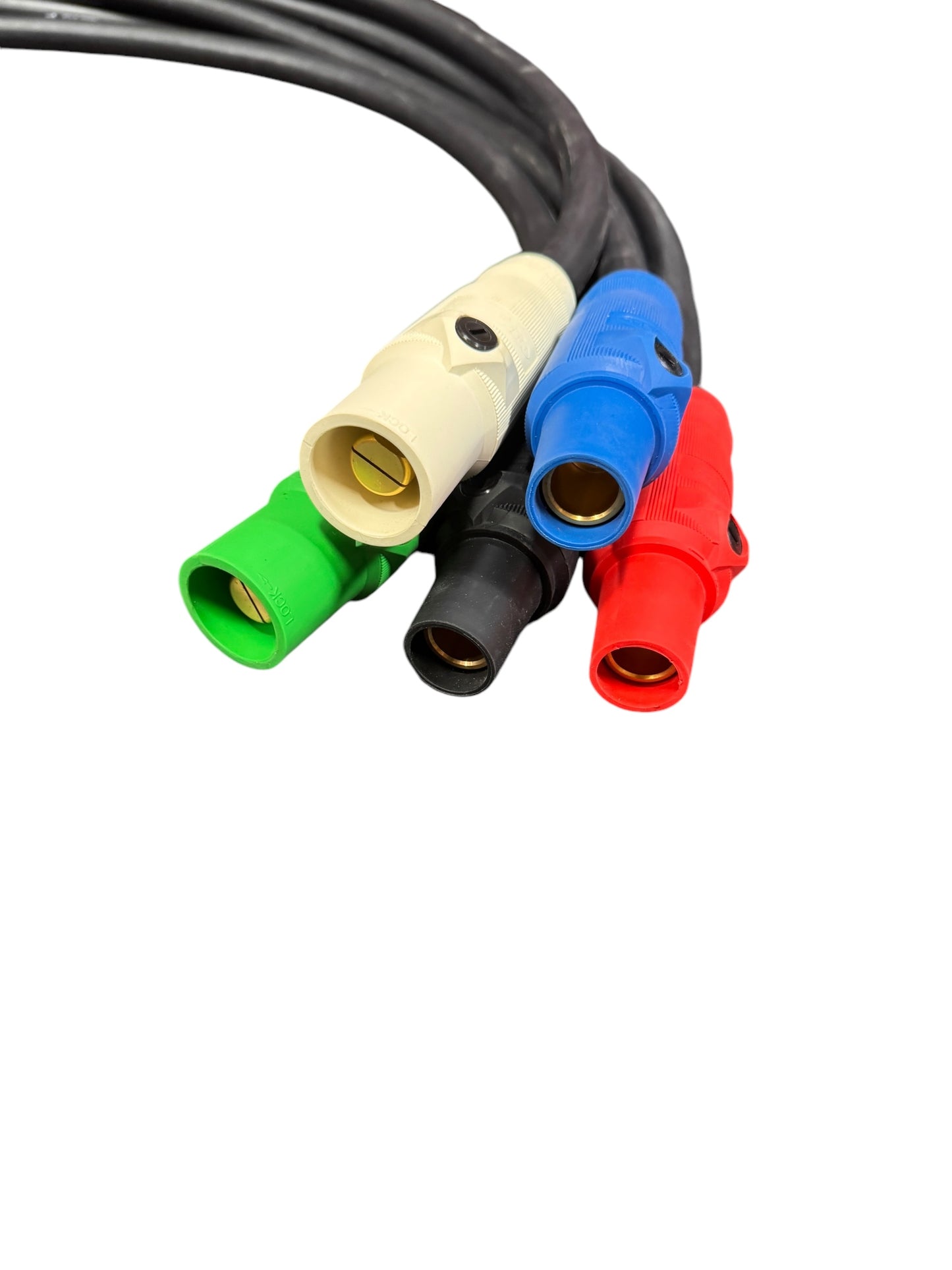

CAMLOCKS ARE HUBBELL HBL300M AND HBL300F SERIES 16 300AMP

EU RoHS Indicator: Yes

Performance
