5 Type SC Stage Cable Pigtail Series 16 HUBBELL Tie-In Set Assemblies - 6 AWG

5 Type SC Stage Cable Pigtail Series 16 HUBBELL Tie-In Set Assemblies - 6 AWG

Regular price $239.99 USD
Regular price Sale price $239.99 USD
Sale Sold out

Condition: BRAND NEW

CONFIGURATION:
GENDER:
LENGTH:

50 in stock

5 Type SC Stage Cable Pigtail Series 16 HUBBELL Tie-In Set Assemblies - #6 AWG

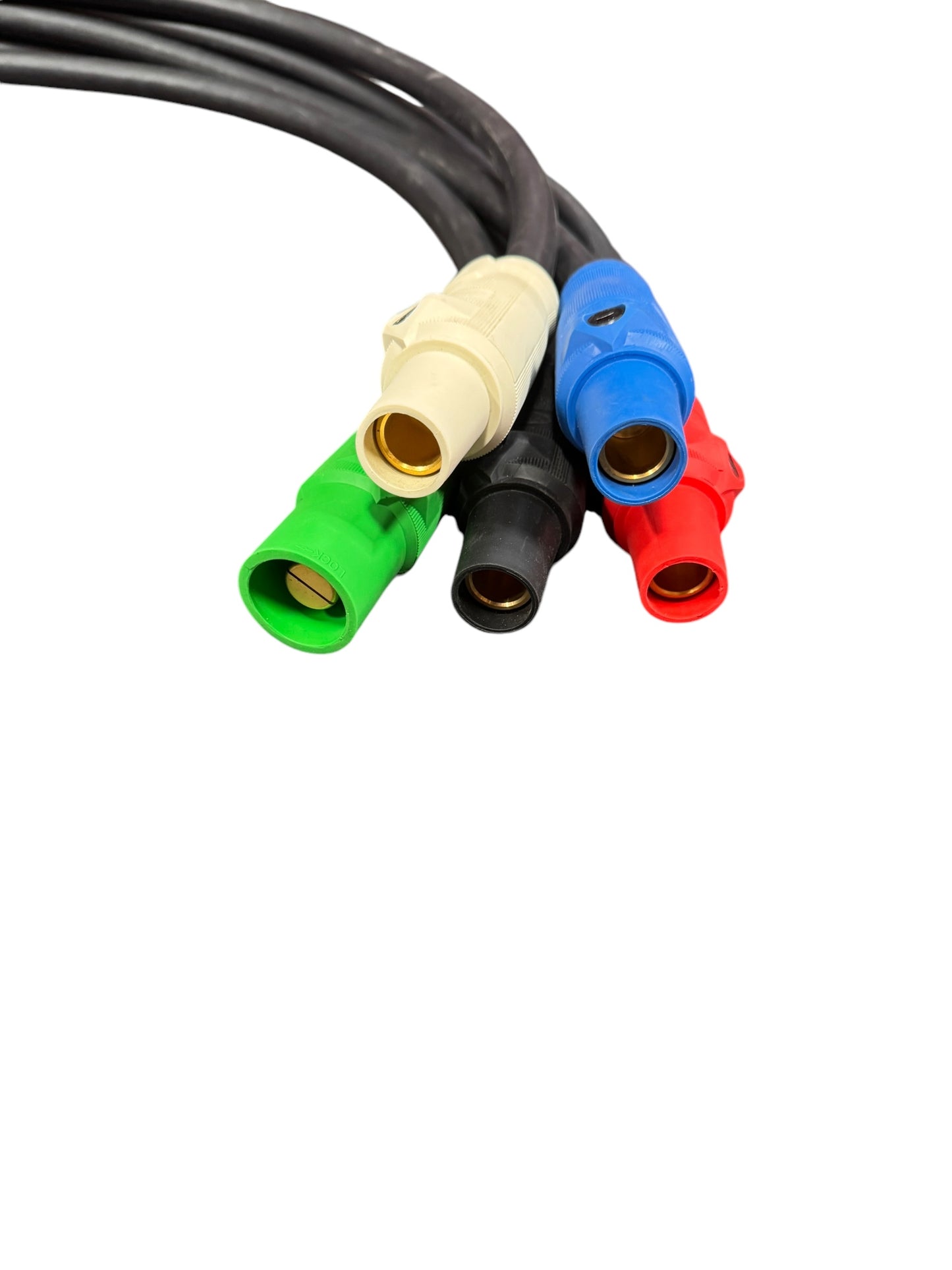

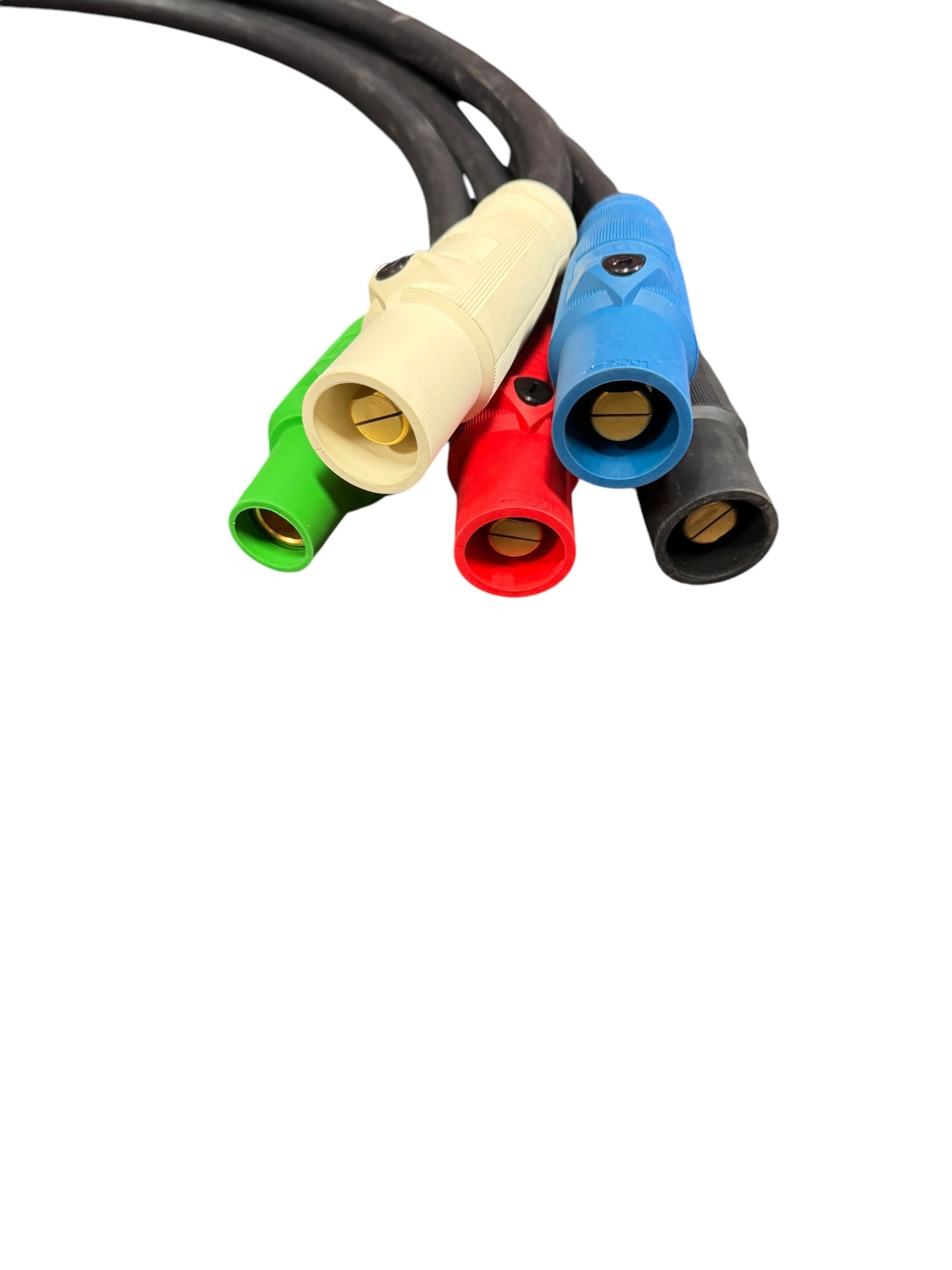

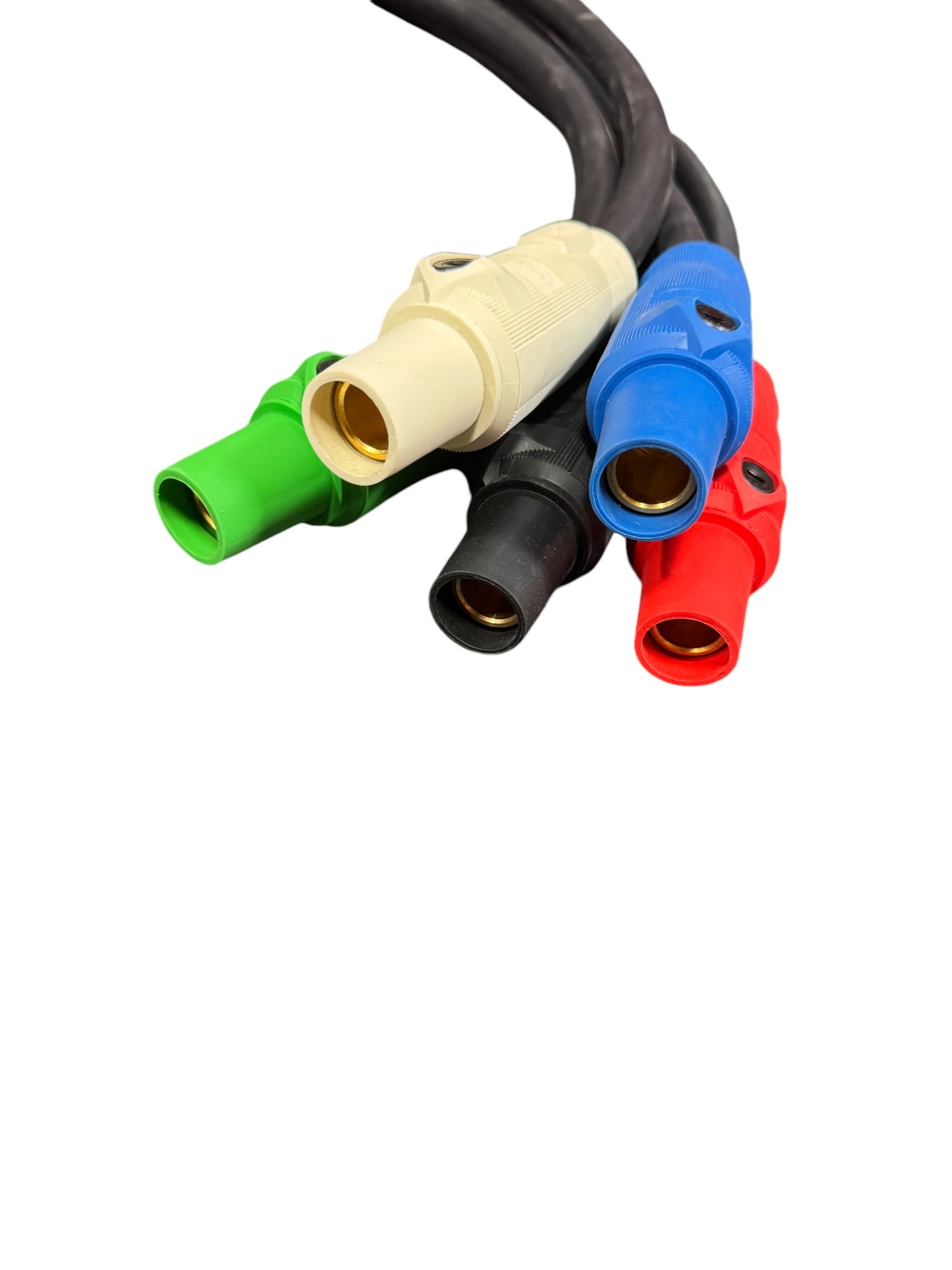

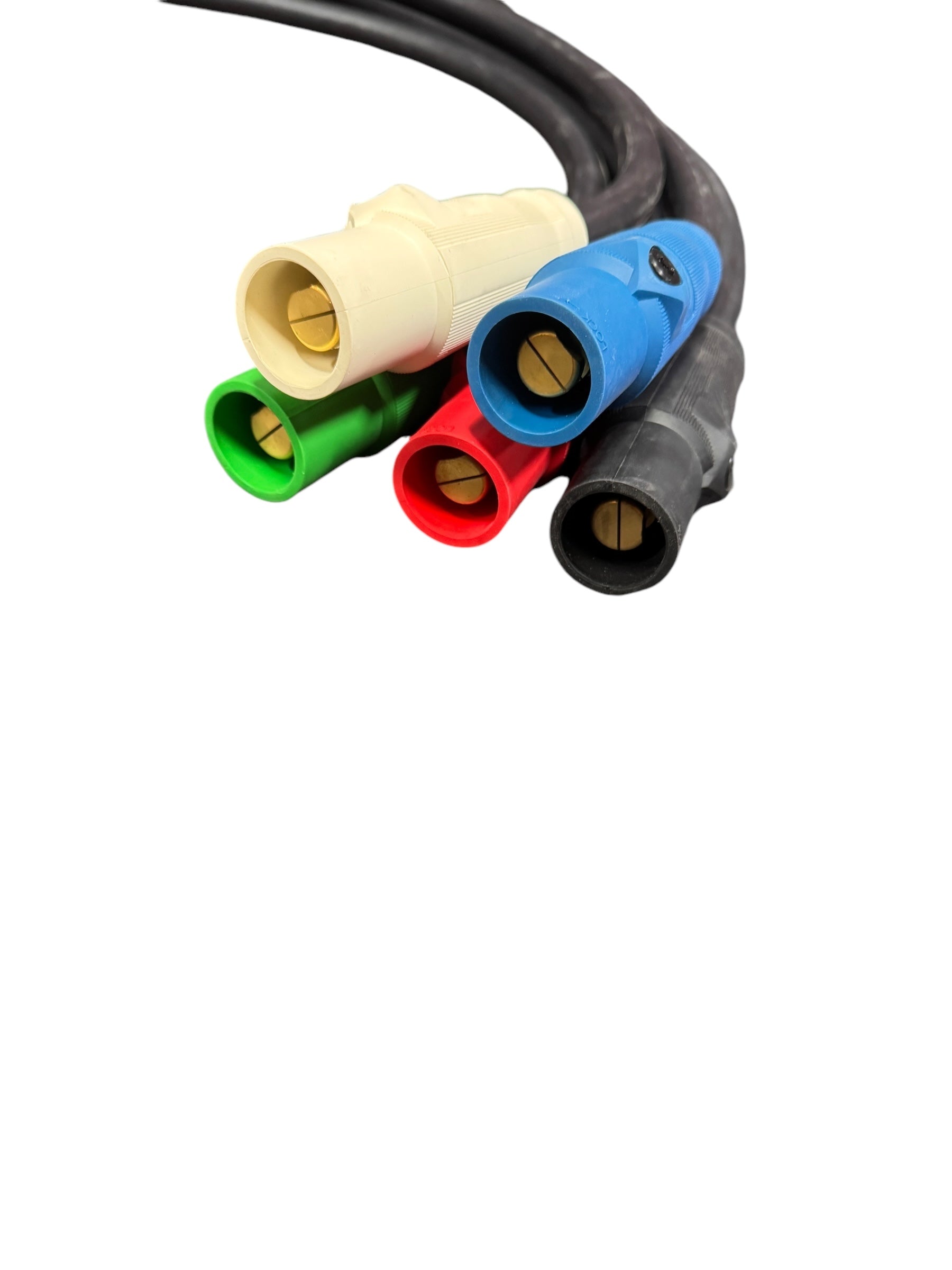

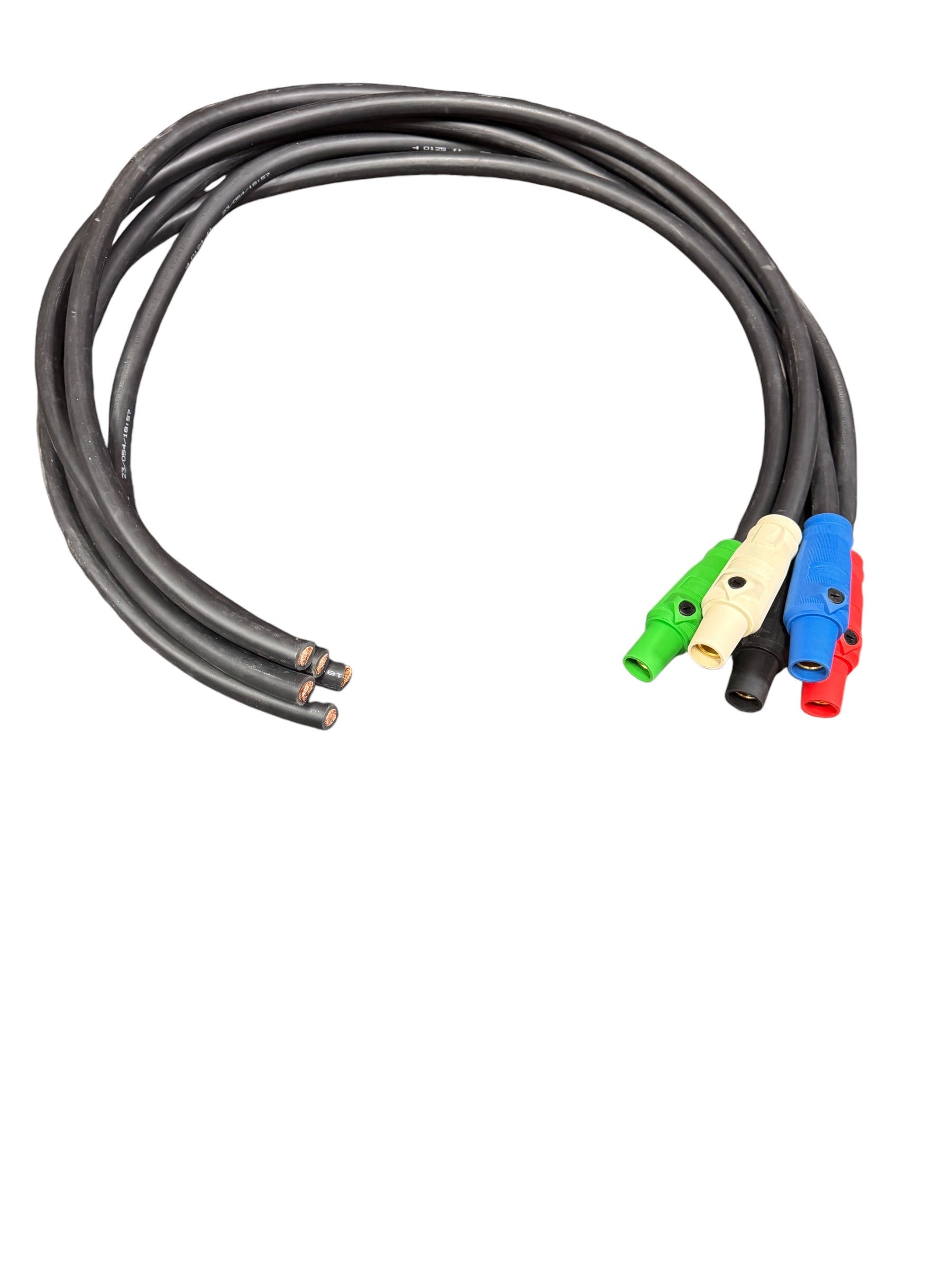

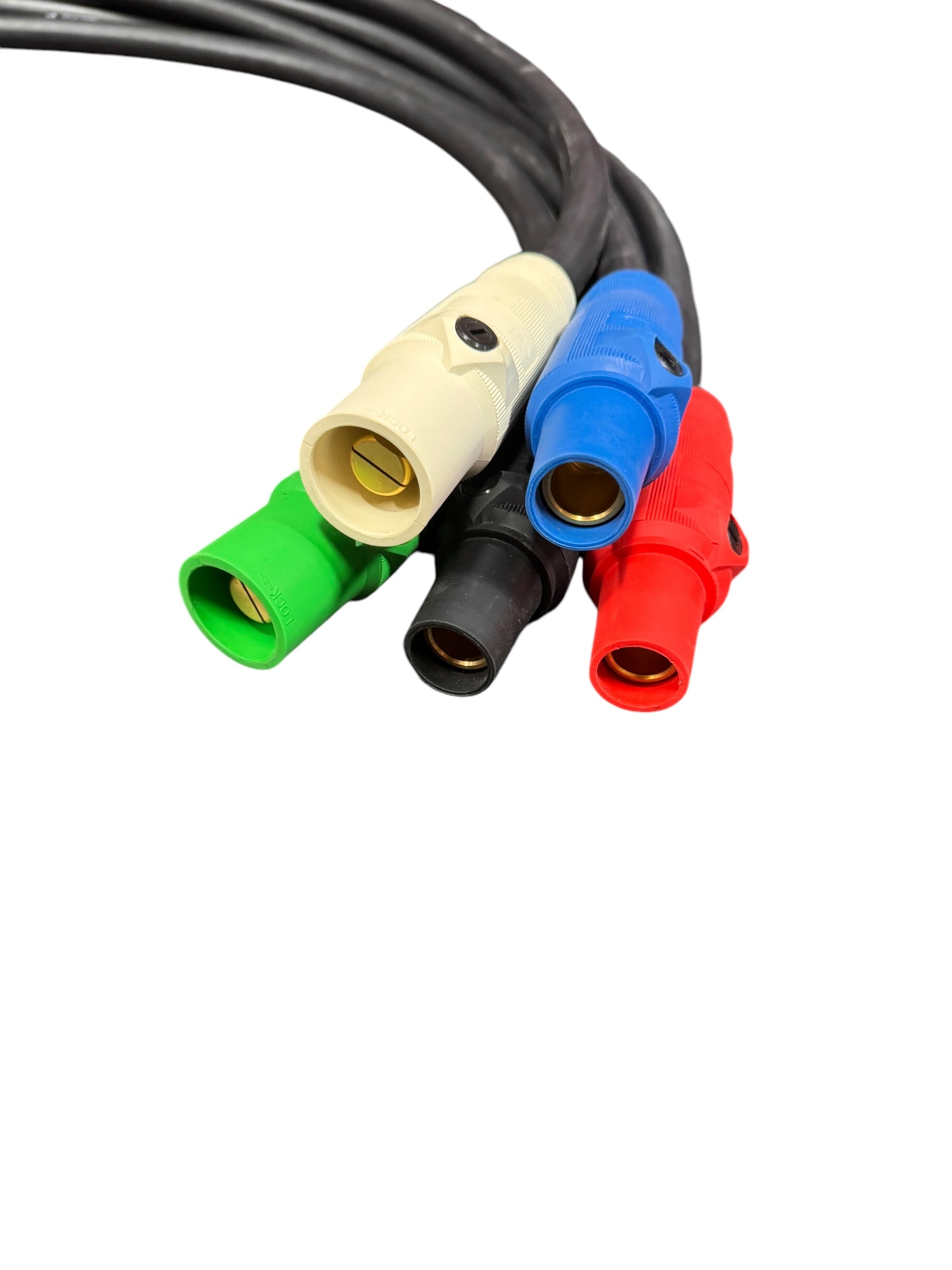

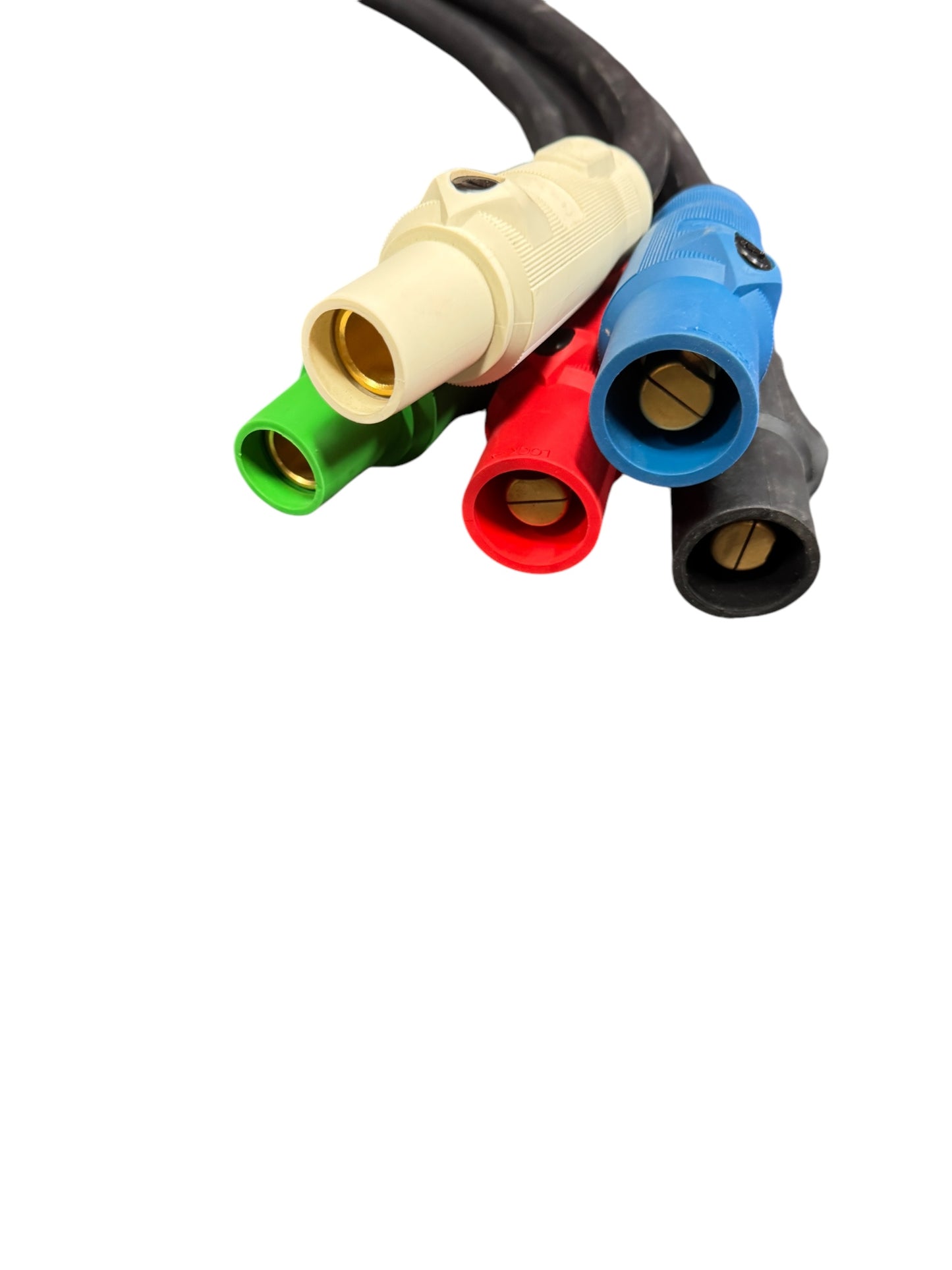

Wireandsupply 5-wire stage cable pigtails are assembled using #6Type SC cable and your choice of Hubbell male or female series 16 CAM lock connectors with a bare/blunt end. Our #6pigtail tie-in sets are rated for 105 Amps, 600V, and are available with Black, Red, Blue, White, and Green Hubbell Twist-locking CAM connectors that can be purchased in a standard configuration (All CAMS one gender), or with a reversed ground (ground opposite gender of rest of cable), or a reversed ground and neutral (both ground and neutral opposite gender).
built and assembled in the USA.
Applications:
Type SC Stage & Lighting Pigtail Sets

  • primarily used in the entertainment industry in events such as concert venues, festivals, carnivals, nightclubs, theaters, television, motion pictures, trade shows,
  • not limited to those applications and are often used in conjunction with generator hookups and portable and other temporary power systems.

Key Features

  • Manufactured in the USA
  • NEMA 3R while connected
  • RoHS Approved components
  • UL/CSA Listed connectors/plugs
  • UL/CSA Listed Type SC cable
  • Abrasion Resistant Jacket
  • Meets/ Exceeds Flame Test Requirements of UL, CSA, & MSHA
  • Incredible Cable Flexibility from high strand count
  • Heat, Oil, Chemical, & UV Resistant Jacket

Camlock Specifications

  • Male or Female Inline Camlock Connector
  • Max Amperage: 105 A
  • Max Voltage: 600V AC/DC
  • Camlock Housing: Rubber
  • Contact Material: Brass

Options

  • AWG Sizes: #6, #4, #2, 1/0, 2/0, 4/0 type SC
  • Connectors: Female/Blunt and Male/Blunt
  • Lengths: 3' and 5'. Additional lengths are available upon request.
  • Configurations: Standard, Reverse Ground, or Reversed Ground and Neutral
