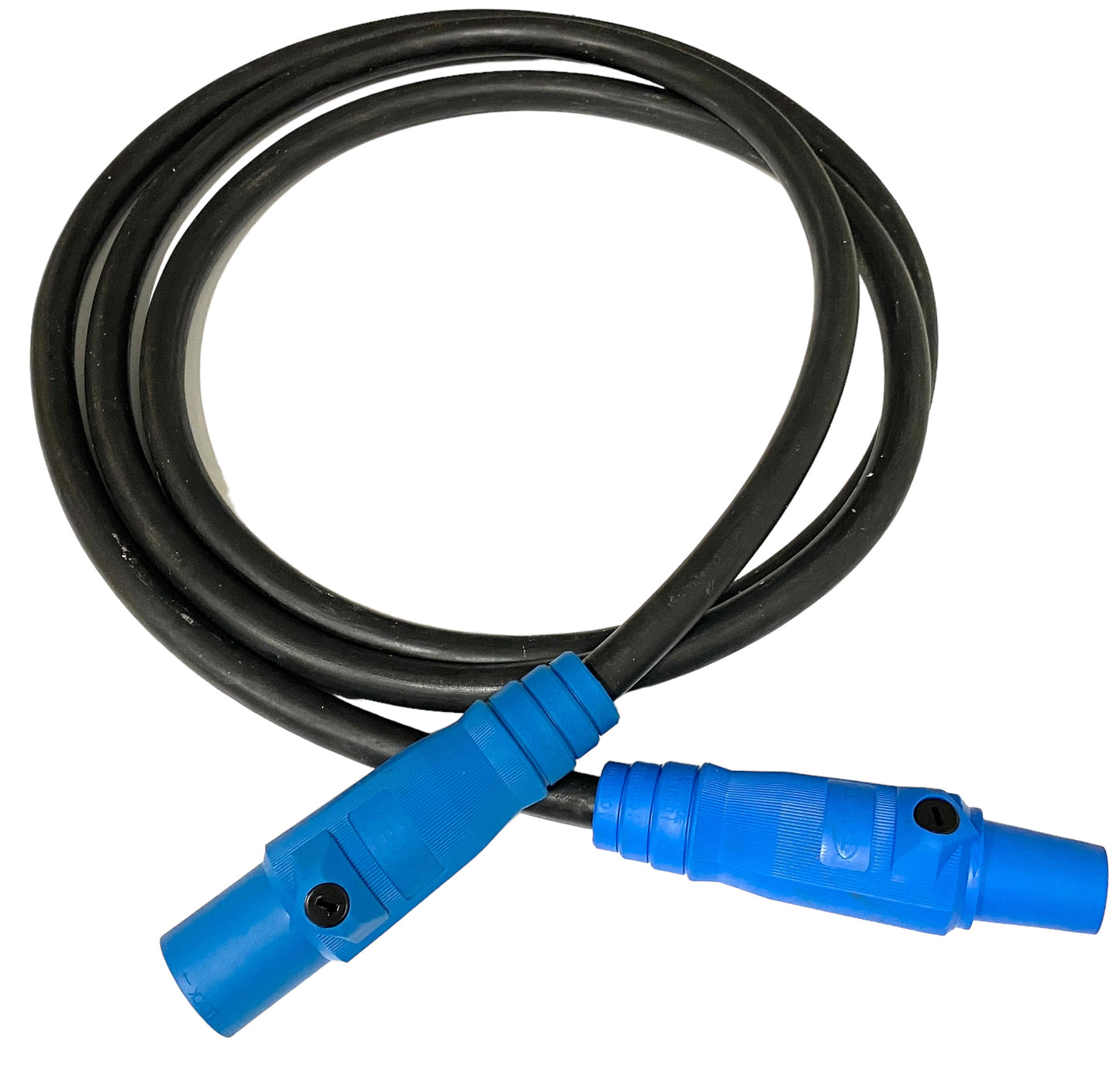

4/0 Color-Cam Power Cable (Type W)

 WIREANDSUPPLY.COM 4/0 Color-Cam Power Cable features Type W black cable, color-coded male and female camlock connectors, and your choice of 12, 20, 25, 50, 75 or 100 foot length.

CABLE FEATURES

• UL Listed Portable Power Cable made from annealed No. 30 gauge bare copper stranding.
• Excellent Flexibility EPR/CPE single conductor portable power cable.
• Durable Jacket EPR (ethylene-propylene rubber) with black heavy duty CPE thermoset compound.
• Reinforced Strength featuring single faced rubber filled binder tape.
• Incredible Resistance to impact and abrasion.
• Quality Assured for your protection; water, flame, ozone, sunlight, grease, weather, and chemical resistant.
• Operating Temperatures range from -40°C to 90°C dry.
• UL, C(UL), and MSHA approved.
• 405 amp

CAM-CONNECTOR FEATURES

• HUBBELL SERIES 16 400AMP CAMLOCKS..
• Double Set Screw connection type.
• CONFIGURATIONS: M/F

STANDARD USA COLOR-CODING

• Red, Blue, and Black for each Phase (120/208V Wye, 240V Delta).
• Orange, Yellow, and Brown for each Phase (277/480V Wye, 480V Delta)
• Green for Ground.
• White for Neutral.
