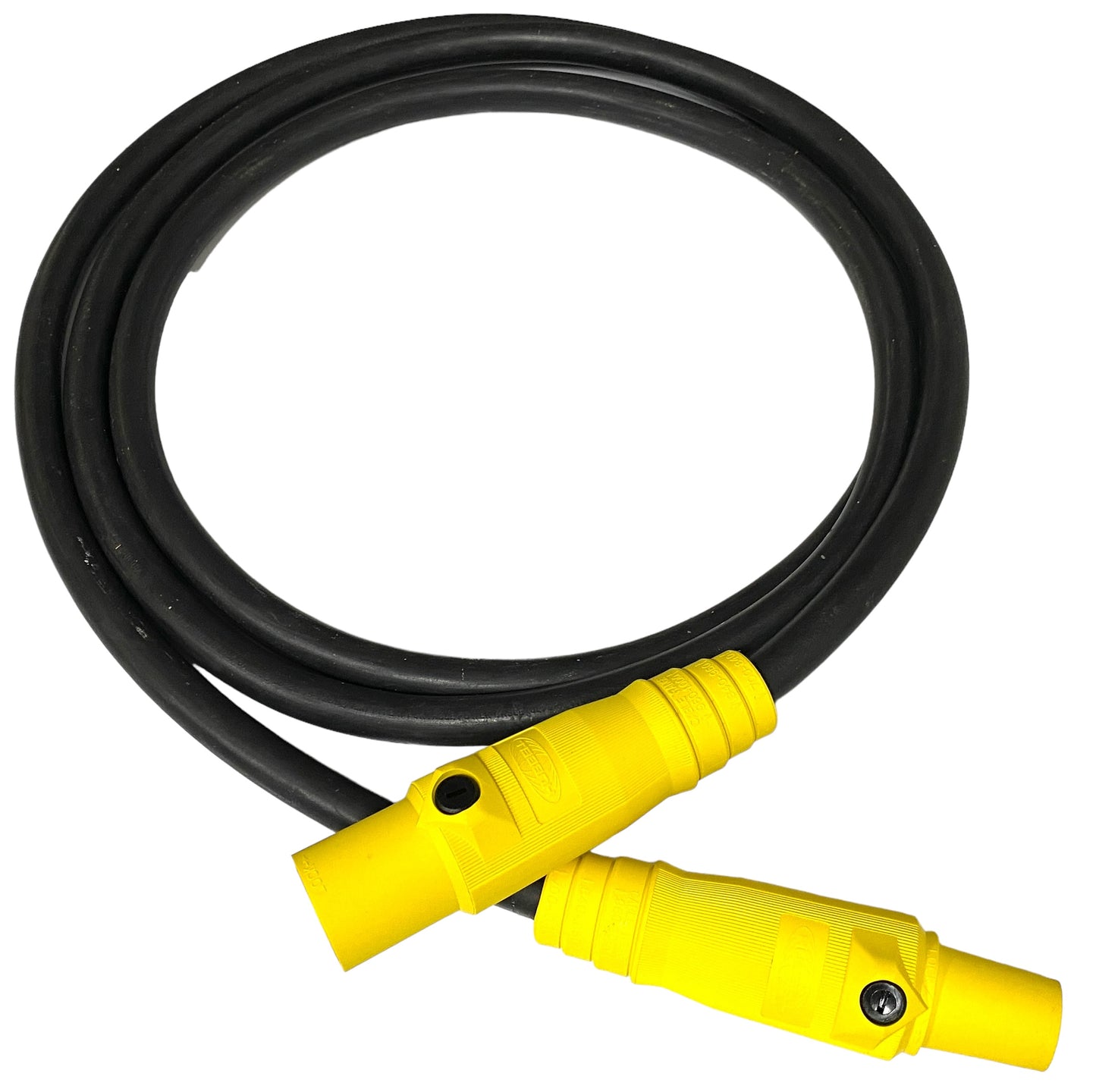

2/0 TYPE W Entertainment ,Generator CAMLOCK Cable M/F

2/0 Color-Cam Power Cable includes: Type W black cable, color-coded male and female camlock connectors, and you choose the length.

INCLUDES PROTECTIVE END CAPS TO MATCH THE COLOR CAM LOCKS YOU CHOOSE.

• UL Listed Portable Power Cable made from annealed No. 30 gauge bare copper stranding.
• Excellent Flexibility EPR/CPE single conductor portable power cable.
• Durable Jacket EPR (ethylene-propylene rubber) with black heavy duty CPE thermoset compound.
• Reinforced Strength featuring single faced rubber filled binder tape.
• Incredible Resistance to impact and abrasion.
• Quality Assured for your protection; water, flame, ozone, sunlight, grease, weather, and chemical resistant.
• Operating Temperatures range from -40°C to 90°C dry.
• UL, C(UL), and MSHA approved.

CAM-CONNECTOR FEATURES:

• HUBBELL 16 Series 300/400 CAM LOCKS.
• Double Set Screw connection type.
• UL 1691.

STANDARD USA COLOR CODING:

• Red, Blue, and Black for each Phase (120/208V Wye, 240V Delta).
• Orange, Yellow, and Brown for each Phase (277/480V Wye, 480V Delta)
• Green for Ground.
• White for Neutral.

CABLE SPECS:

type w portable power cable 2000v generator power cable.
heavy-use, industrial, and emergency applications, including power and equipment rental (e.g. power generators), motor and battery leads, mining and oil drilling, shore power, HVAC systems, and general power distribution

•


  • Conductors: Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare ASTM Class K copper.
  • Voltage Rating :600 V and 2,000 V
  • Separators: Paper (conductor); Mesh (insulation)
  • Insulation & Jacket: Insulated with low-smoke, halogen-free EPDM compound, Jacketed with proprietary CPE compound
  • Resistance Properties: Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight, and water
  • UL tested 60°C (140°F) oil resistant temperature rating
  • UL tested 720 hours sunlight resistance rating
  • Temperature Range: -40°C (-40°F) to 90°C (194°F) Dry; 90°C (194°F) Wet.
  • stranding: 1339/30 bare copper strands.
  • amp: 300



  BUILT AND ASSEMBLED IN THE USA.

  SHIPS SAME DAY OR NEXT BUSINESS DAY.
